Hood Latch Striker: Removal

  1. Release hood latch and open hood.
  2. Remove bolts attaching striker to inside of hood. See Fig 1.
  3. Remove hood latch striker from vehicle.

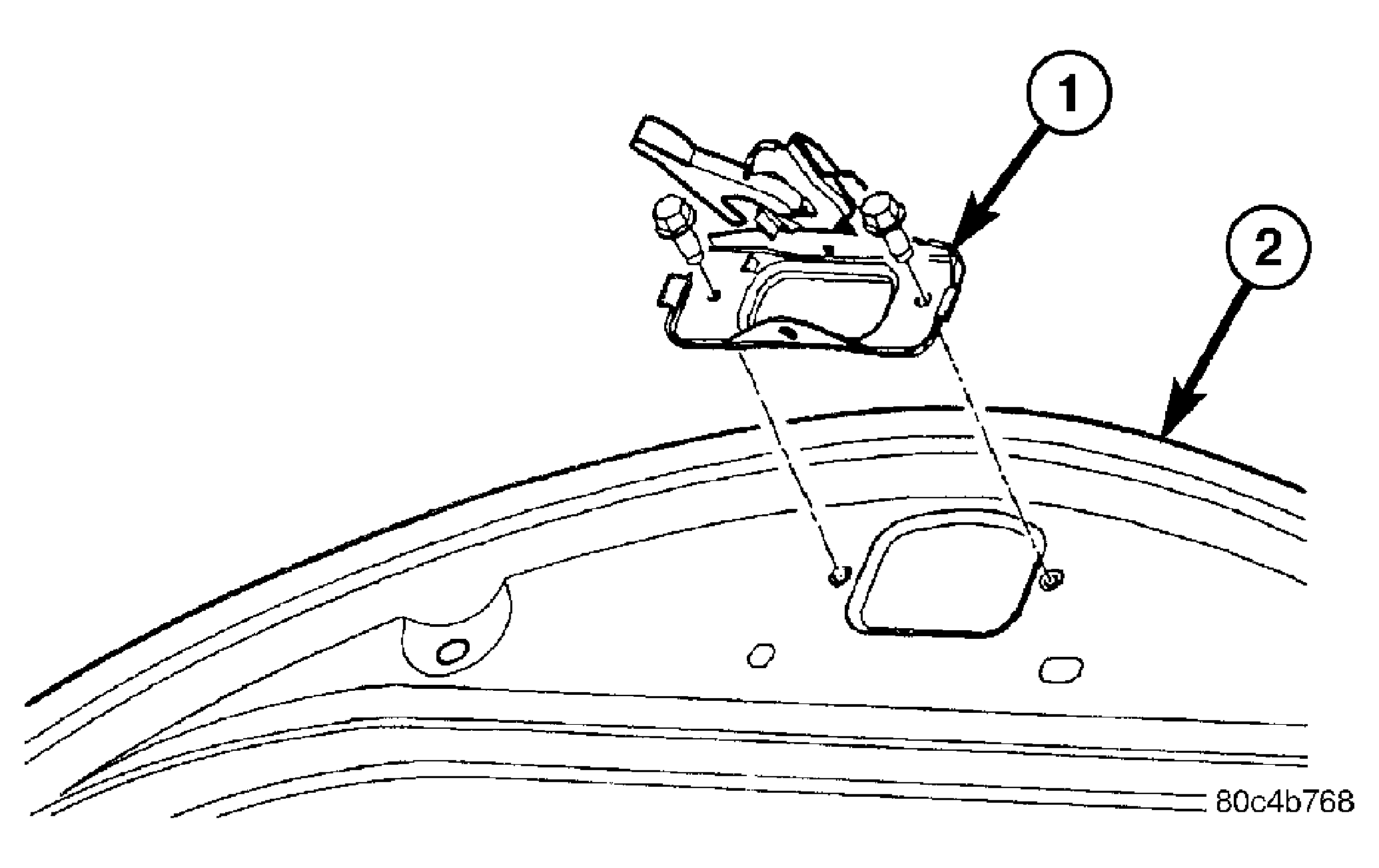

Fig 1: HOOD STRIKER
GC0022369Courtesy of DAIMLERCHRYSLER CORP.
1 - HOOD STRIKER
2 - HOOD
