Interior & Exterior: Exterior: Grille: Removal

1. Open hood and support hood on prop rod.
2. Remove screws attaching grille to fender and radiator closure panel. See Fig 1.
3. Pull top of grille up and outward to disengage hooks from fender.
4. Remove grille from vehicle.

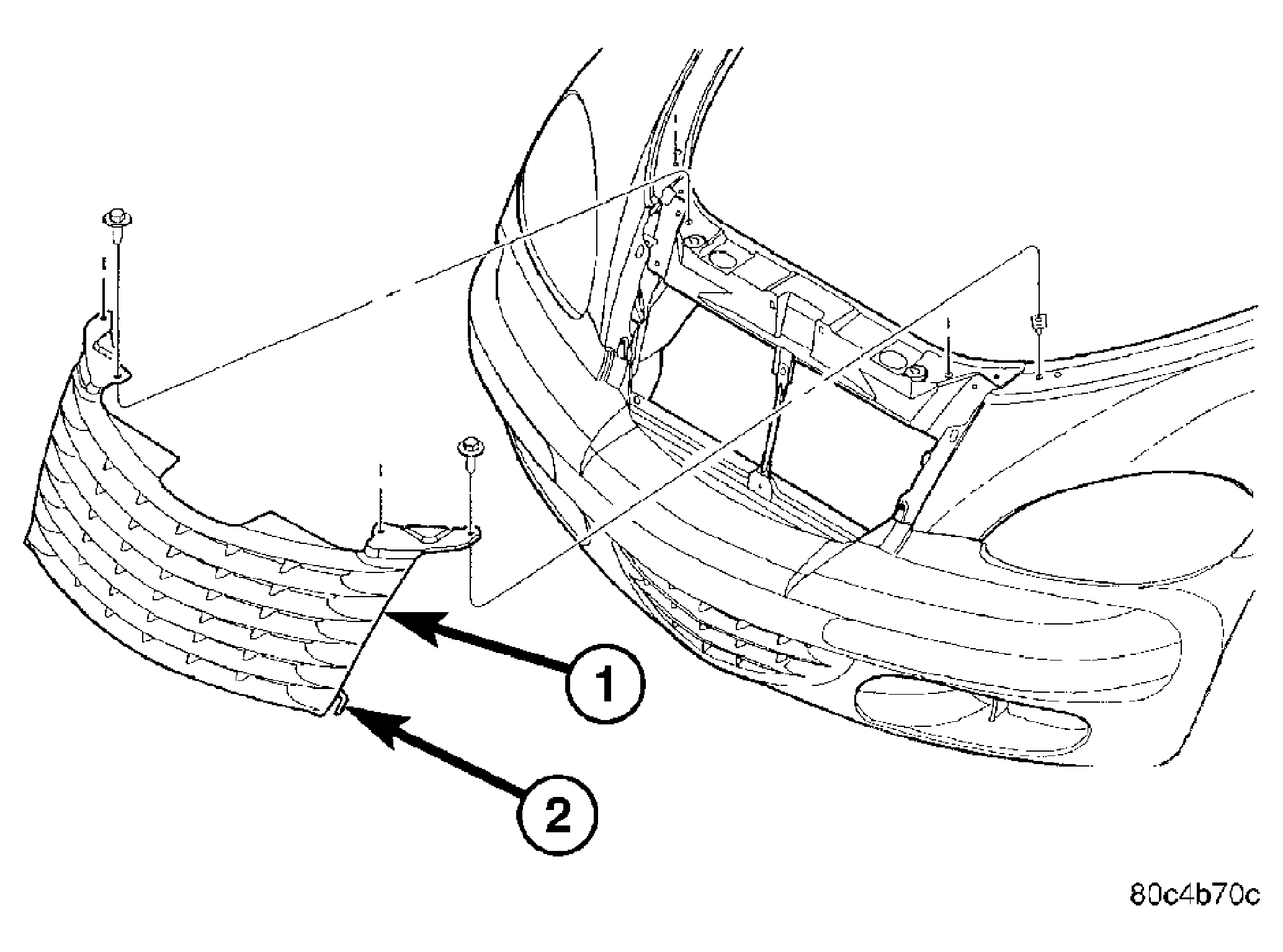

   Fig 1: GRILLE

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - GRILLE

   2 - RETAINER

5. Remove chrome strips, if necessary. Using a small flat blade tool to release chrome strips tabs. See Fig 2.

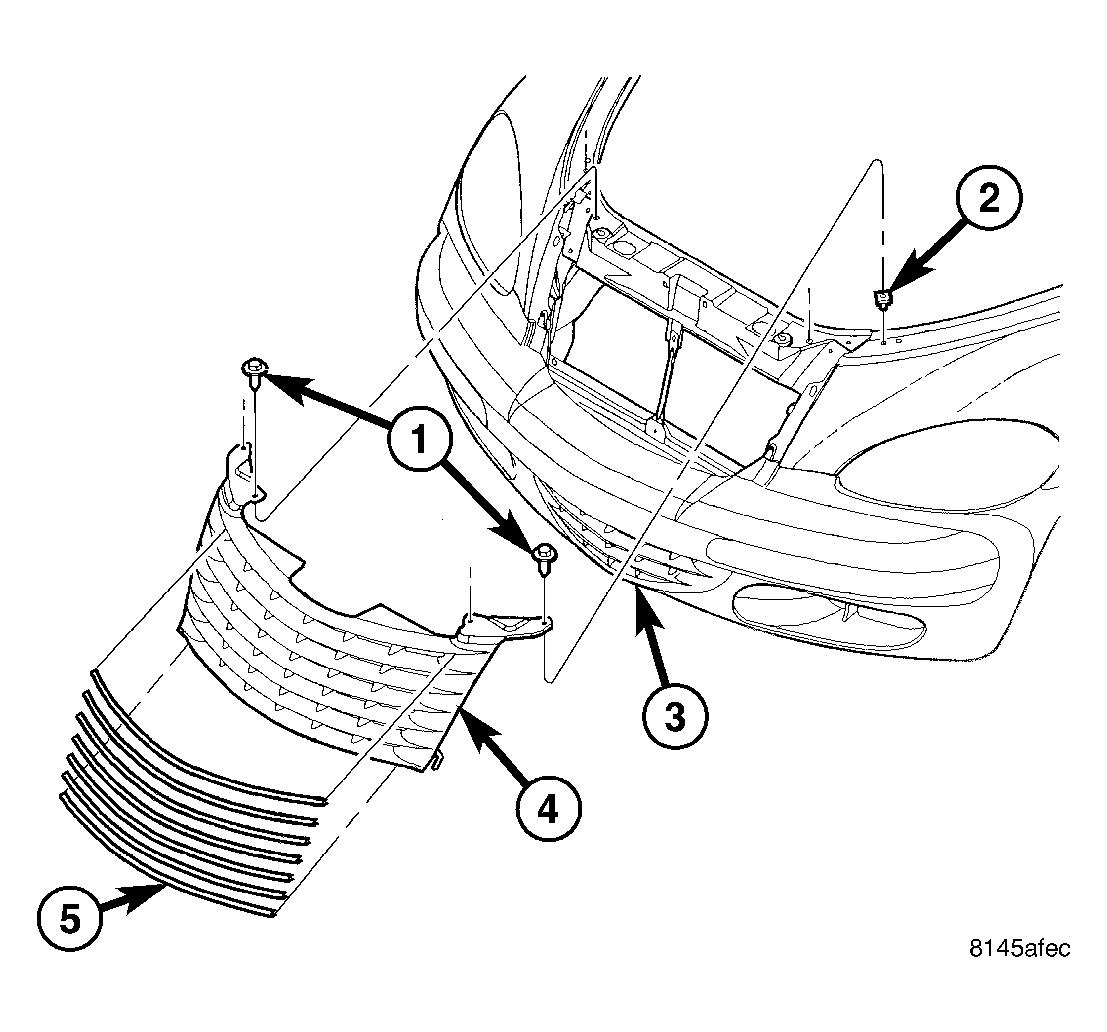

Fig 2: GRILLE - WITH CHROME STRIPS

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREWS (4) ATTACHING GRILLE TO FENDER AND RADIATOR CLOSURE PANEL

2 - SPRING NUT (4)

3 - LOWER RADIATOR GRILLE AND FASCIA

4 - RADIATOR GRILLE

5 - CHROME STRIPS (7)
