Front Fender: Removal

  1. Remove headlamp housing.
  2. Right side of vehicle remove front side rail access pulley splash shield.
  3. Remove splash shield.
  4. Remove fender to fascia nuts.
  5. Remove fender bolt to lower rocker panel. See Fig 1.
  6. Remove fender bolt to lower cowl.
  7. Pull fascia away from fender.
  8. Remove bolts attaching fender to upper rail.
  9. Remove fender from vehicle.

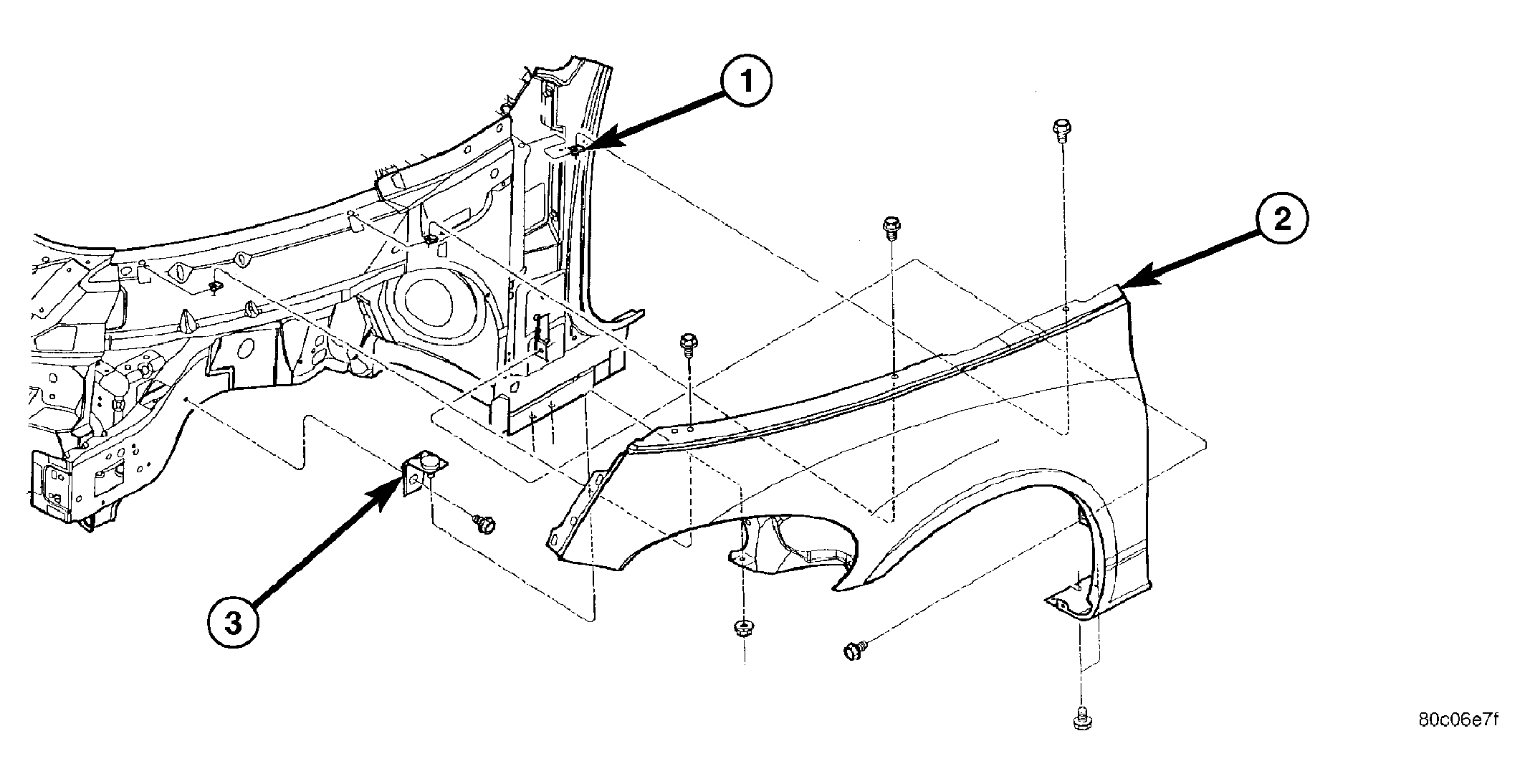

Fig 1: FENDER
GC0022346Courtesy of DAIMLERCHRYSLER CORP.
1 - U-NUTS 3 - FRONT FENDER SUPPORT
2 - FRONT FENDER
