Specifications - Structural Adhesives

SPECIFICATIONS - STRUCTURAL ADHESIVES

DESCRIPTION	FIGURE
COWL SIDE AND LOAD BEAM	Fig 1.
DASH PANEL AND FLOOR PAN	Fig 2.
REAR FLOOR PAN	Fig 3.
BODY SIDE APERTURE	Fig 4.

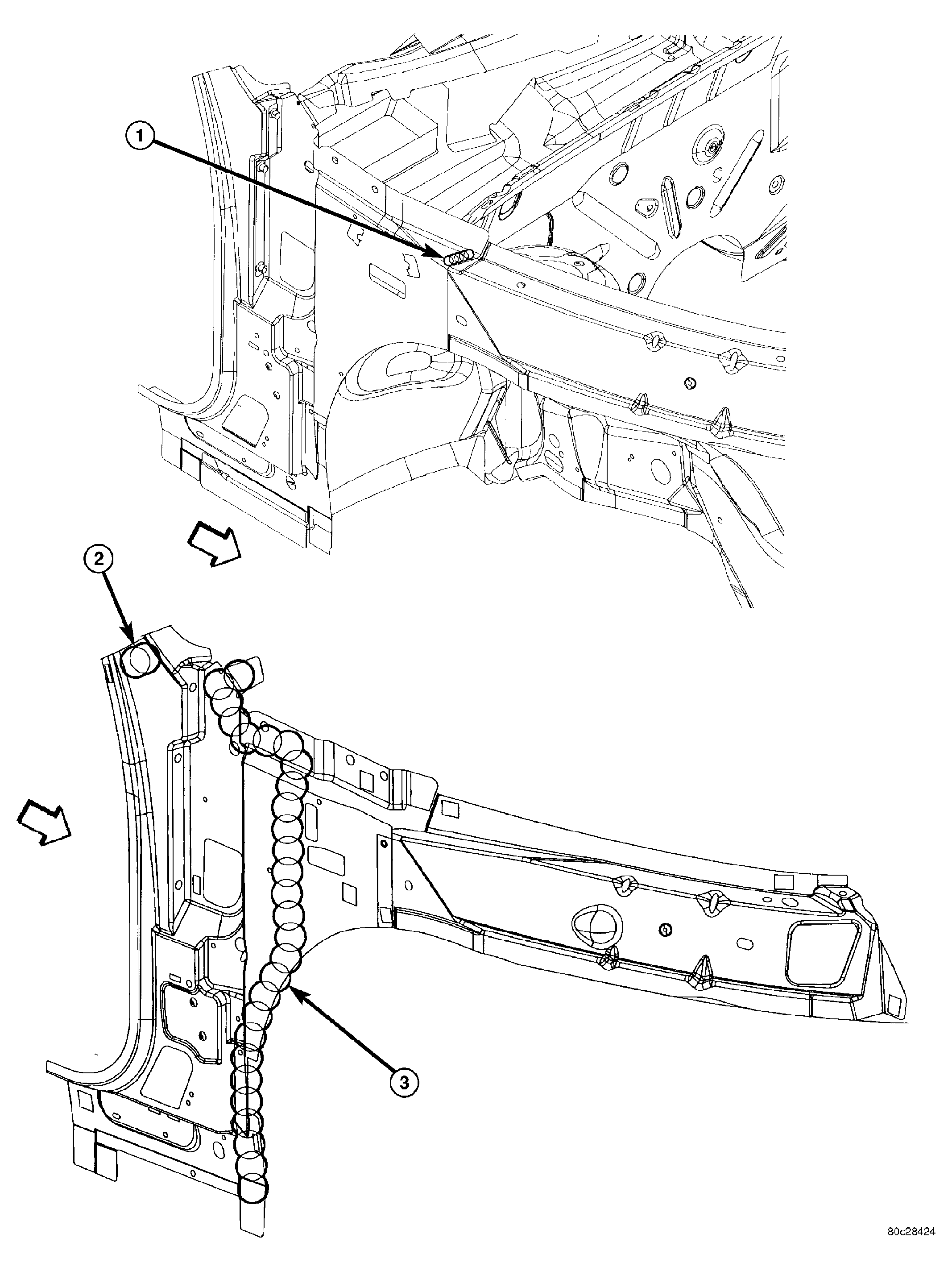

Fig 1: COWL SIDE AND LOAD BEAM

GC0022626

Courtesy of DAIMLERCHRYSLER CORP.

1 - STRUCTURAL ADHESIVE TAPE

2 - EXPANDABLE SEALER

3 - ADHESIVE STRIP BEAD

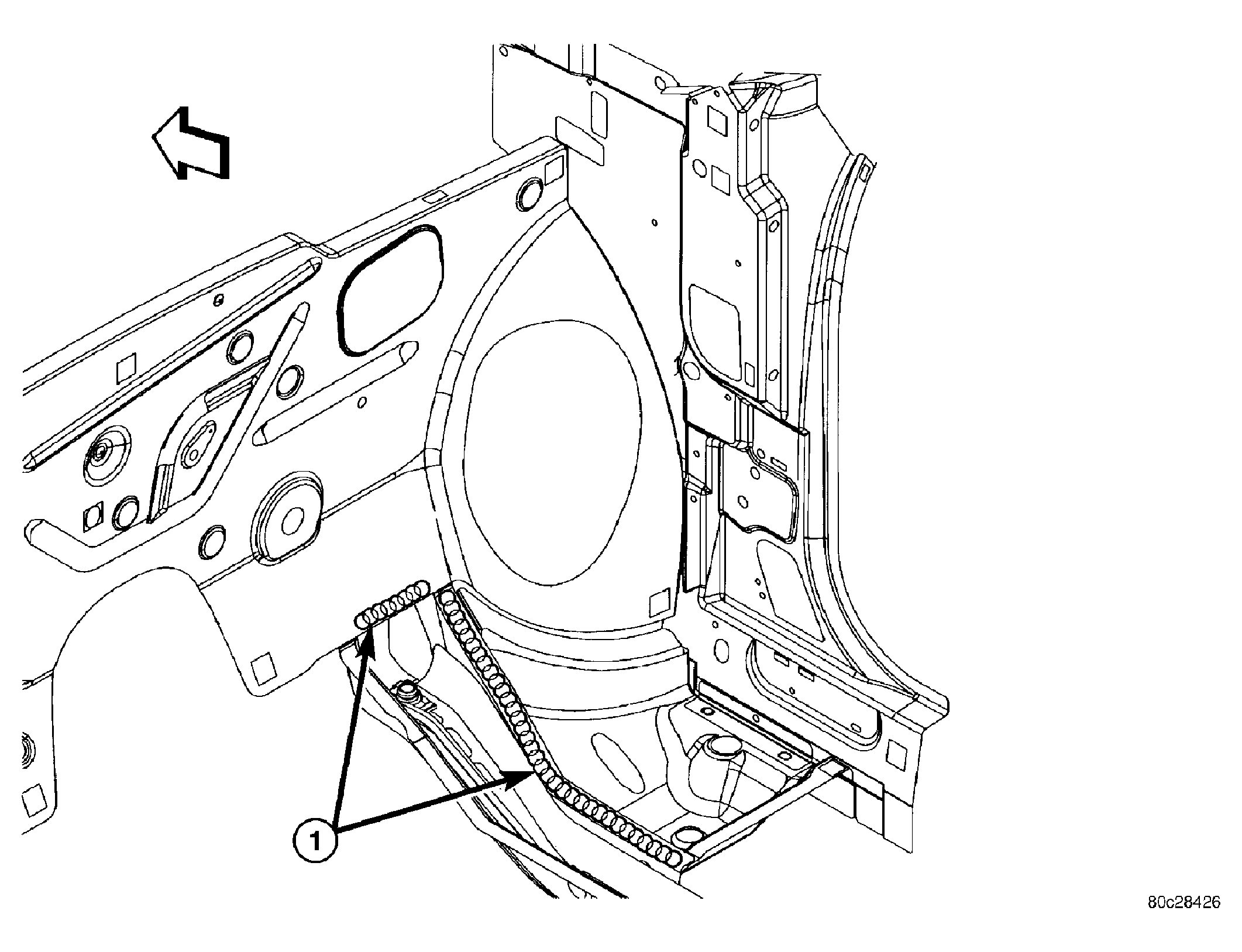

Fig 2: DASH PANEL AND FLOOR PAN

GC0022627

Courtesy of DAIMLERCHRYSLER CORP.

1 - STRUCTURAL ADHESIVE TAPE

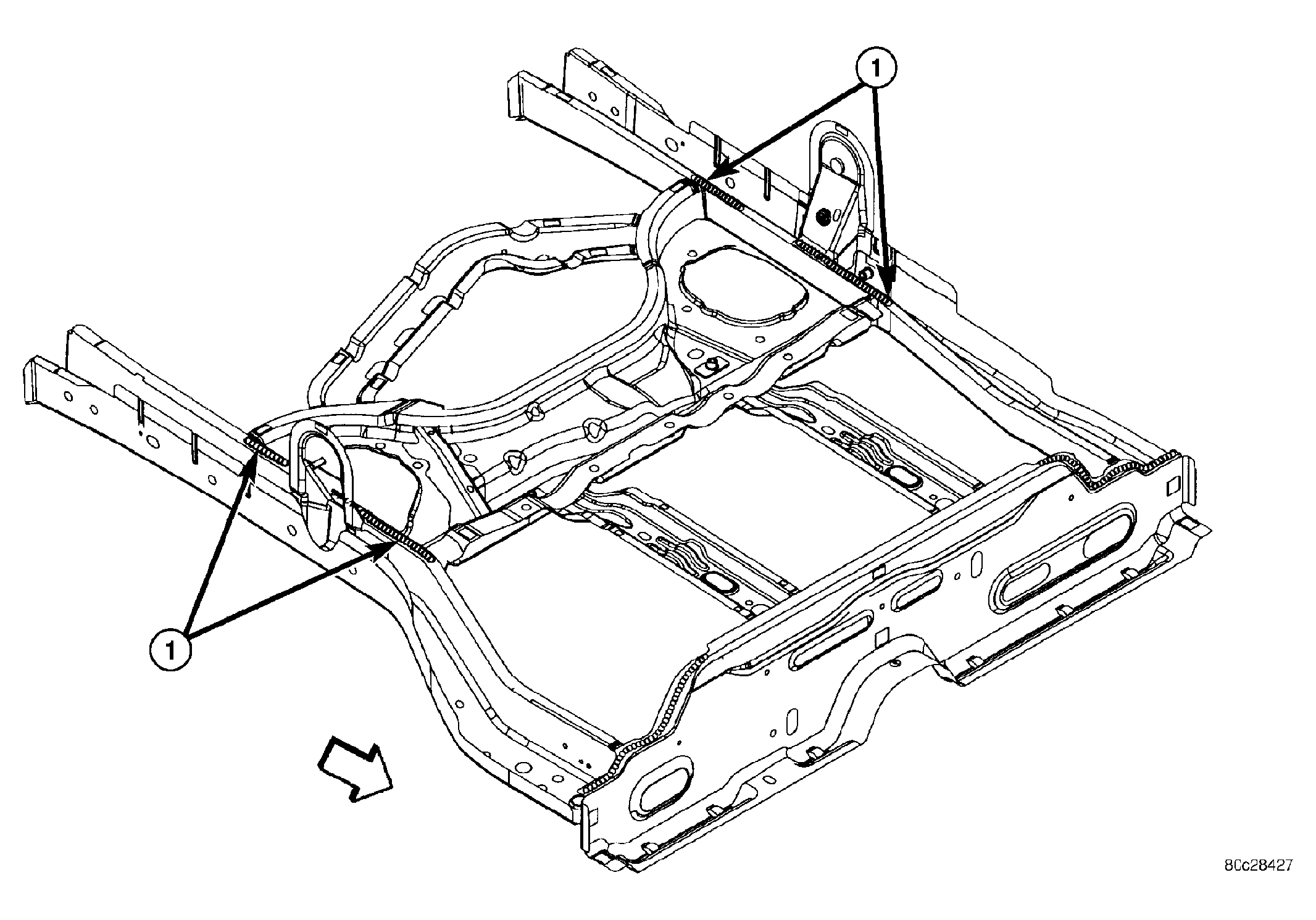

Fig 3: REAR FLOOR PAN

GC0022628

Courtesy of DAIMLERCHRYSLER CORP.

1 - STRUCTURAL ADHESIVE TAPE

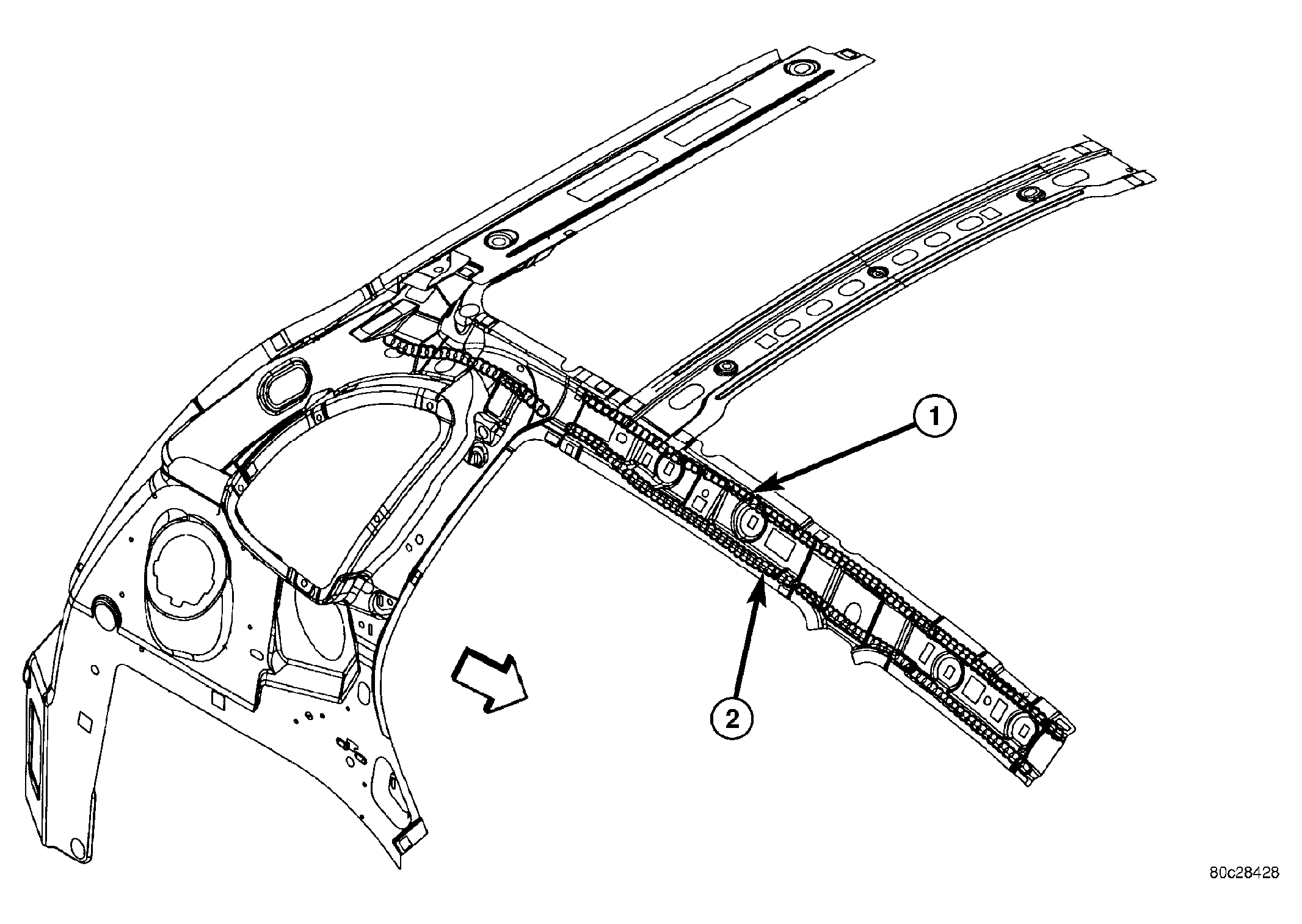

Fig 4: BODY SIDE APERTURE

GC0022629

Courtesy of DAIMLERCHRYSLER CORP.

1 - PUMPABLE ADHESIVE

2 - STRUCTURAL ADHESIVE
