Specifications - Body Sealing Locations

DESCRIPTION	FIGURE

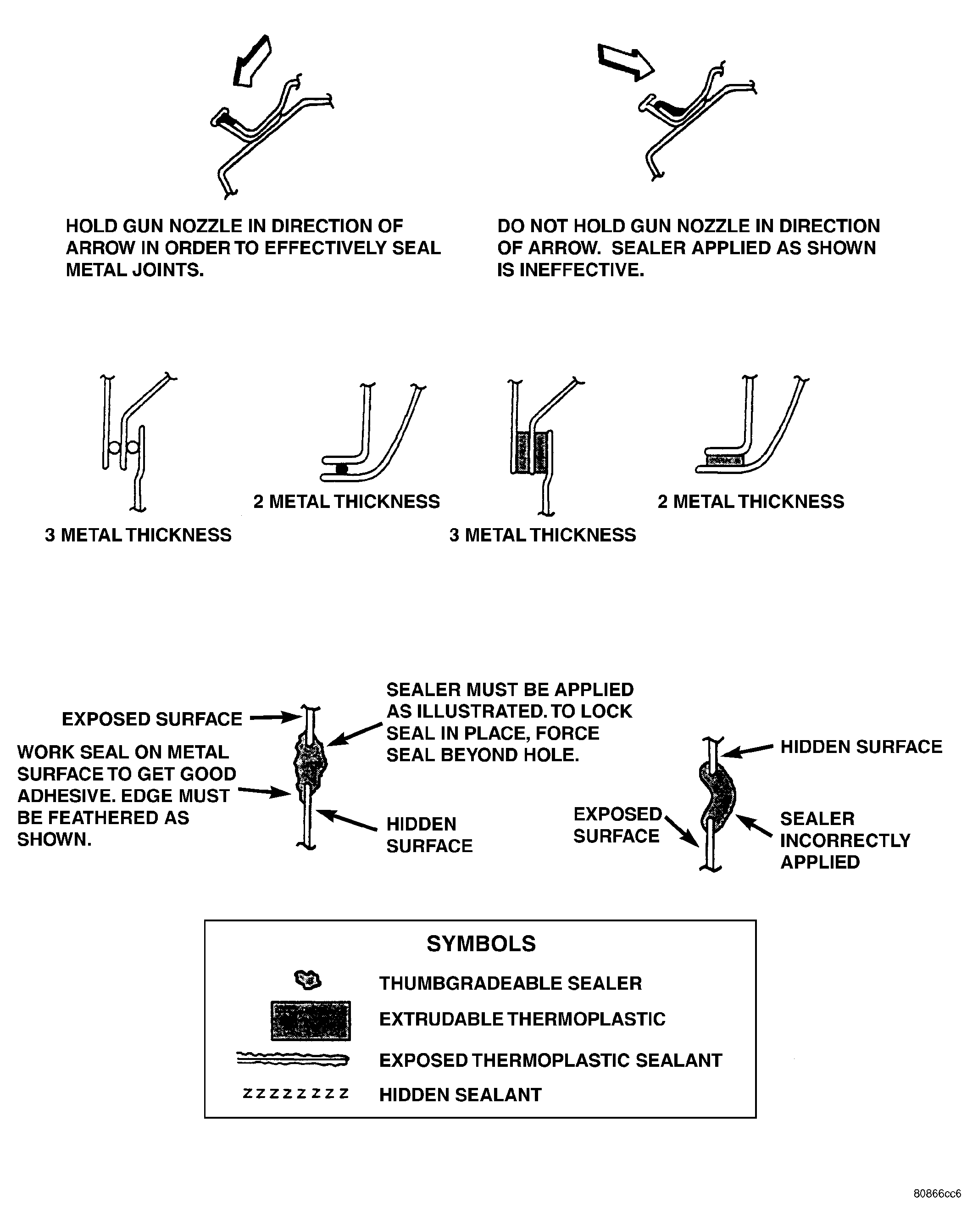

BODY LOCATIONS	Fig 1.

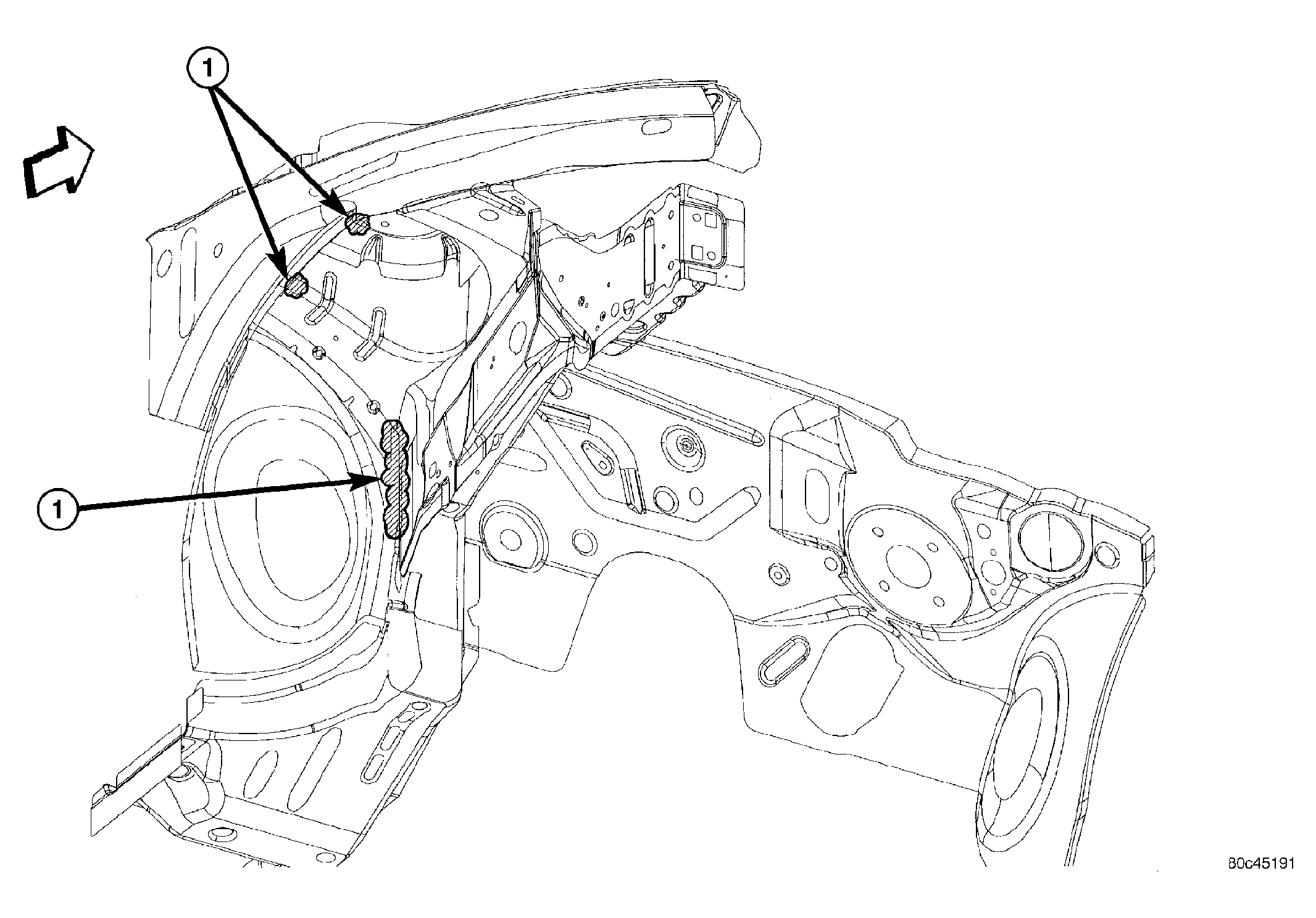

LOAD BEAM, STRUT TOWER, COWL and DASH PANEL	Fig 2.

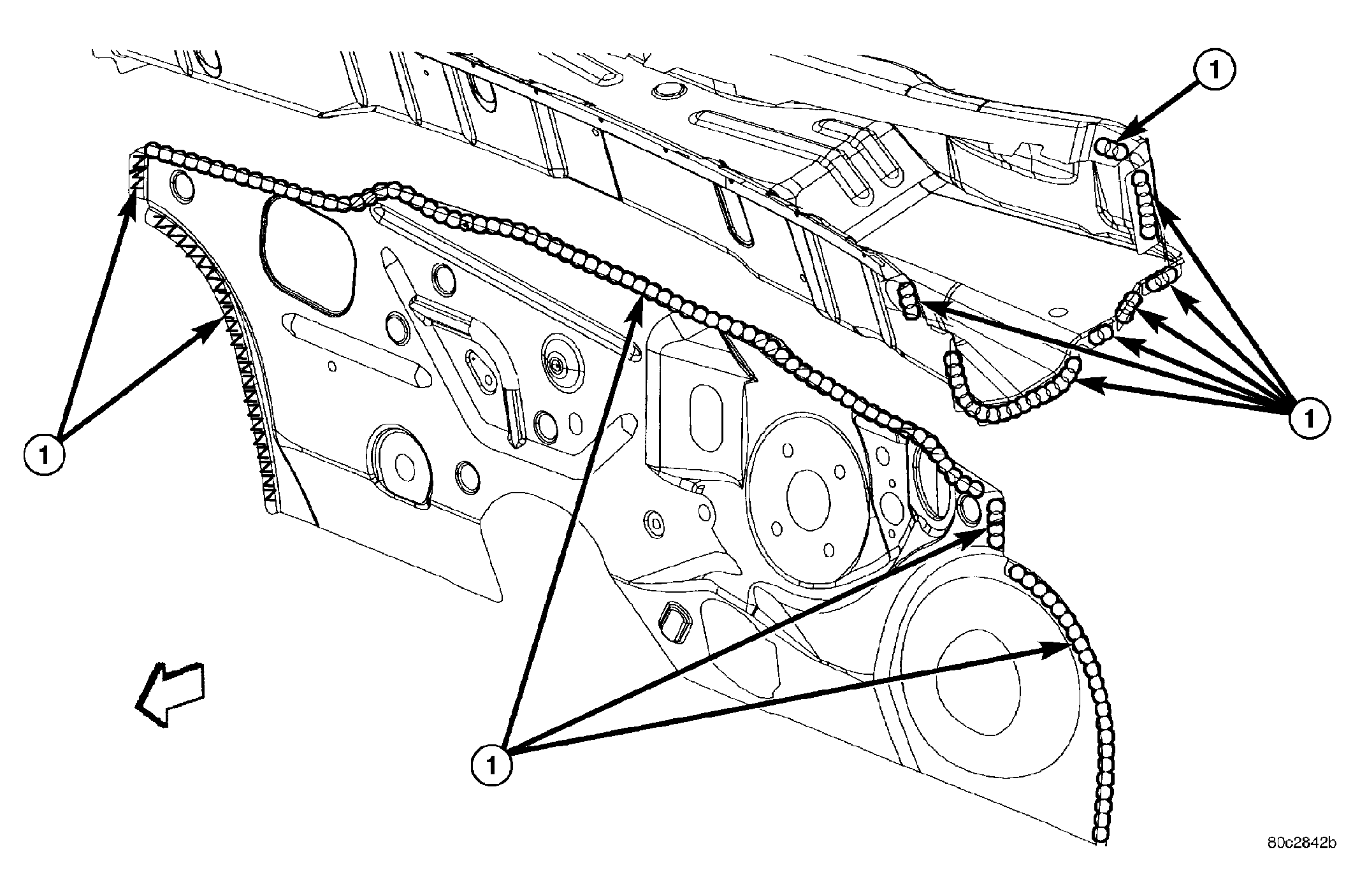

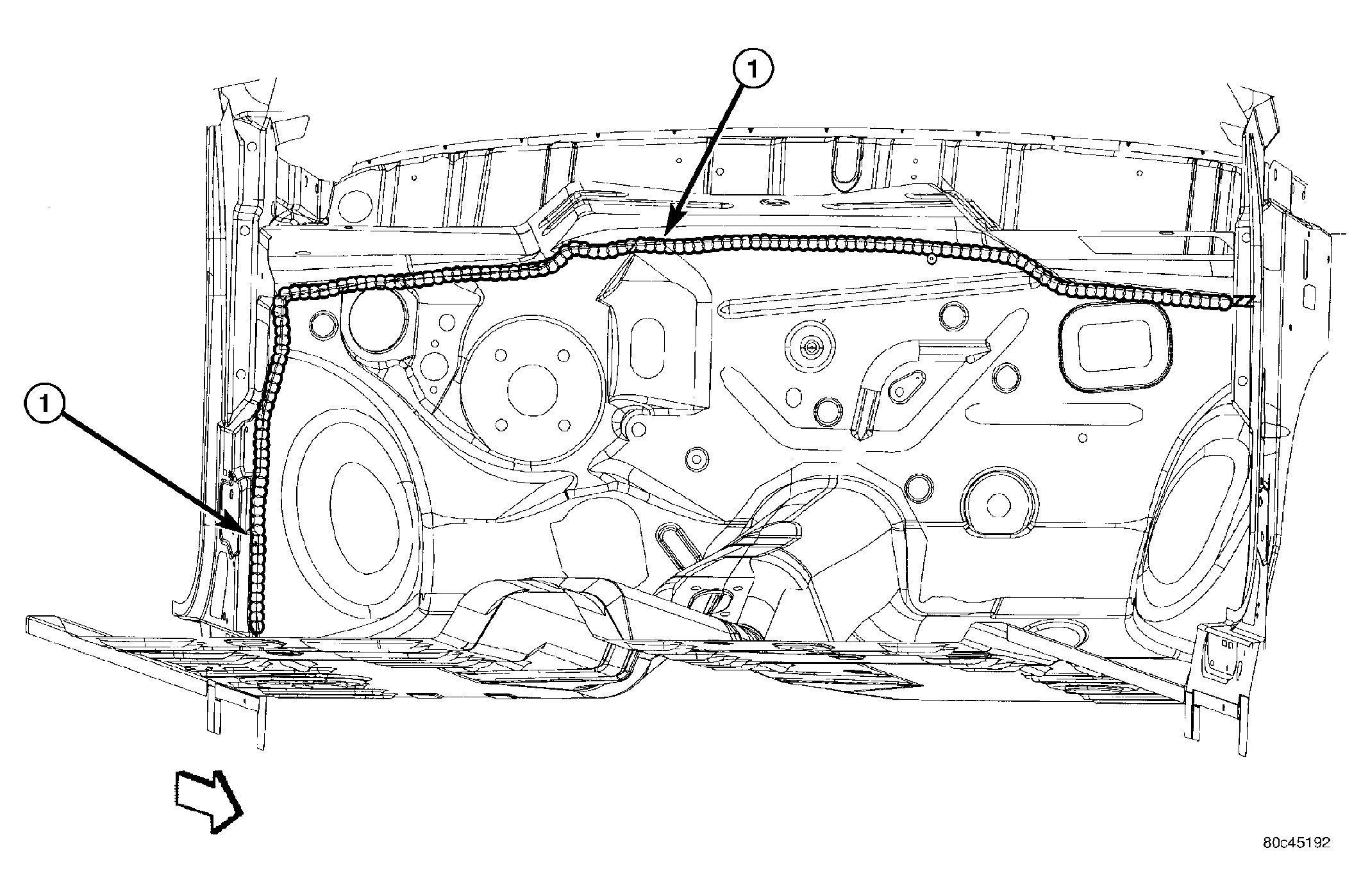

COWL and DASH PANEL	Fig 3.

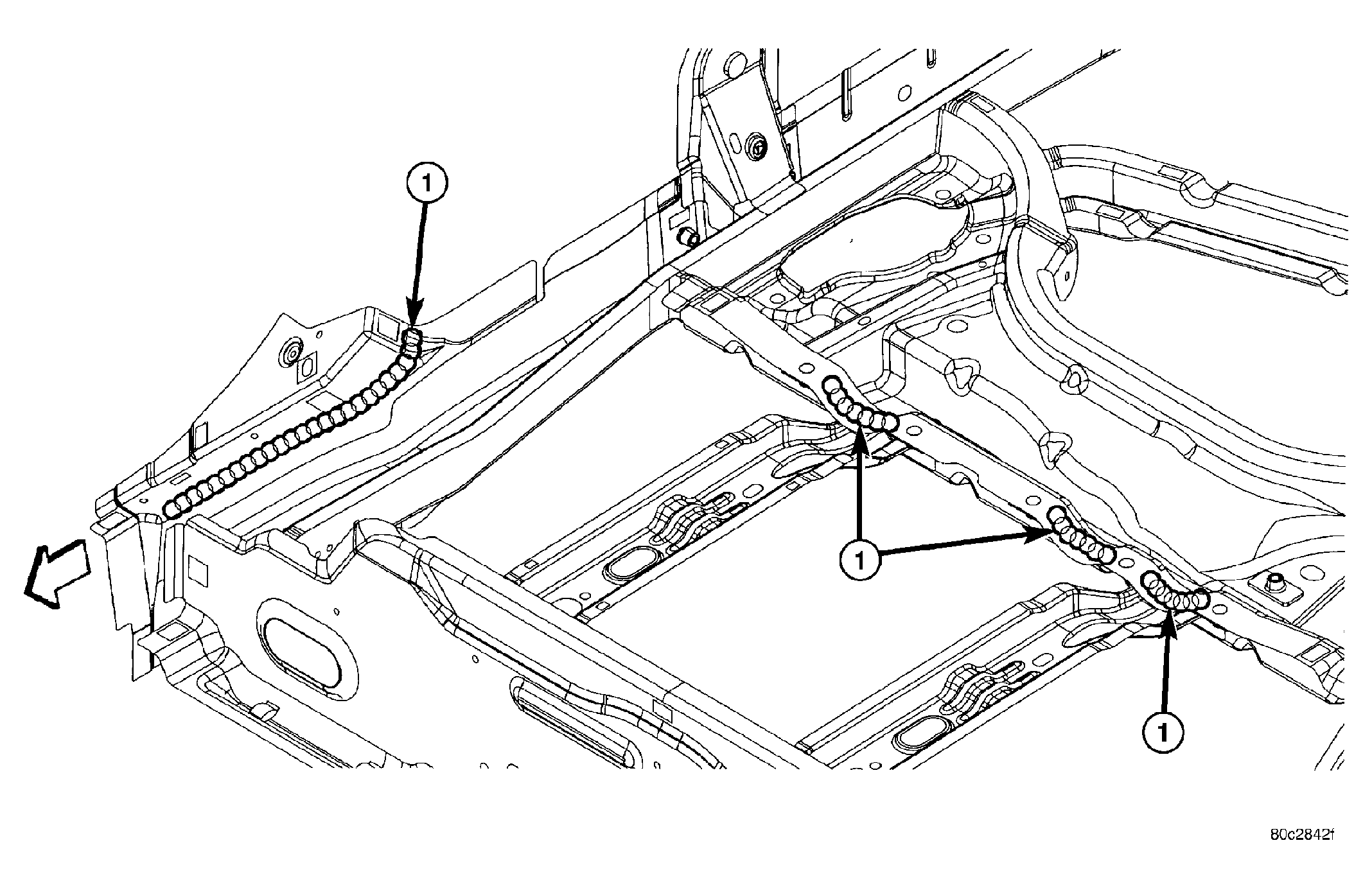

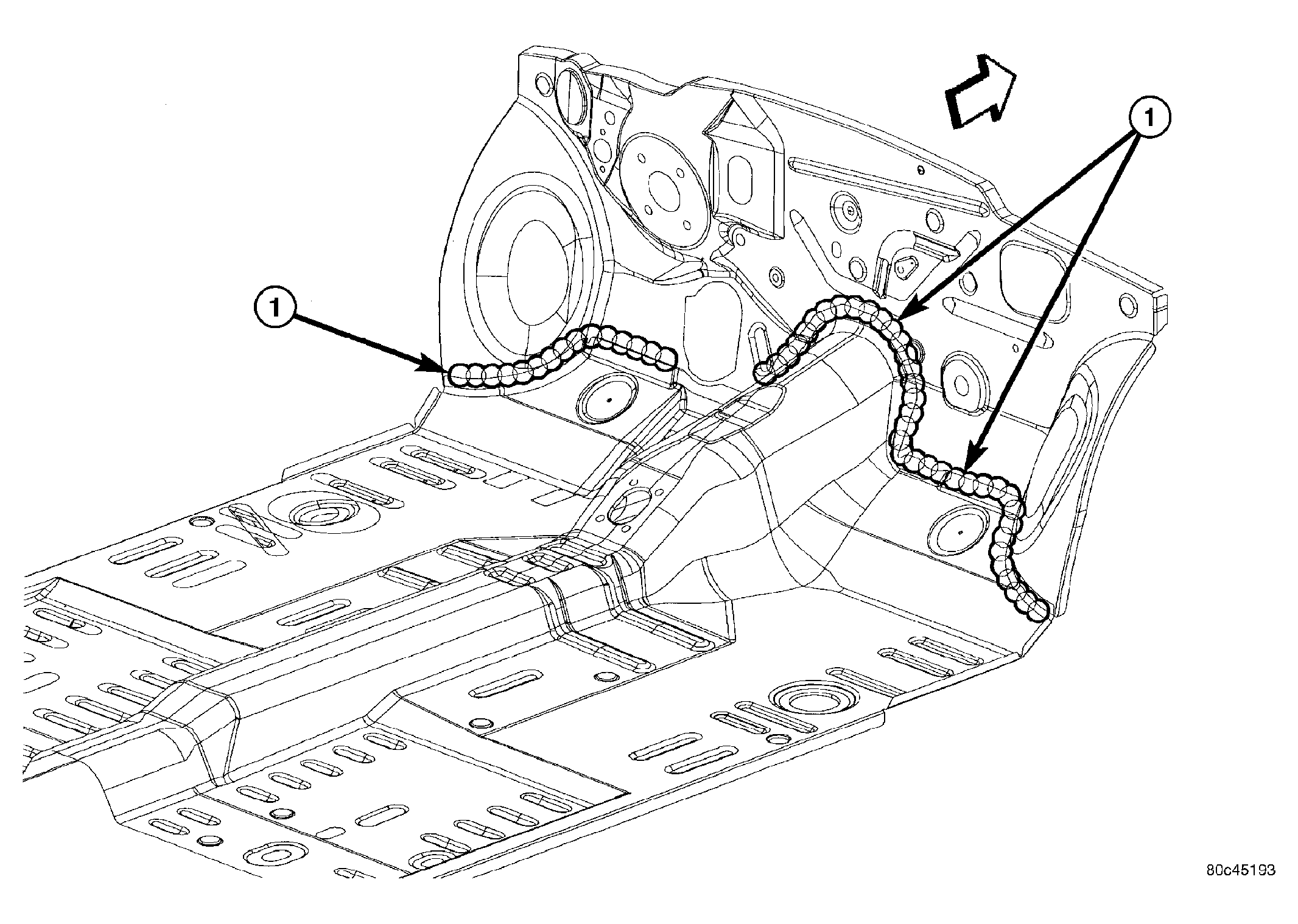

FLOOR PAN and DASH PANEL	Fig 4.

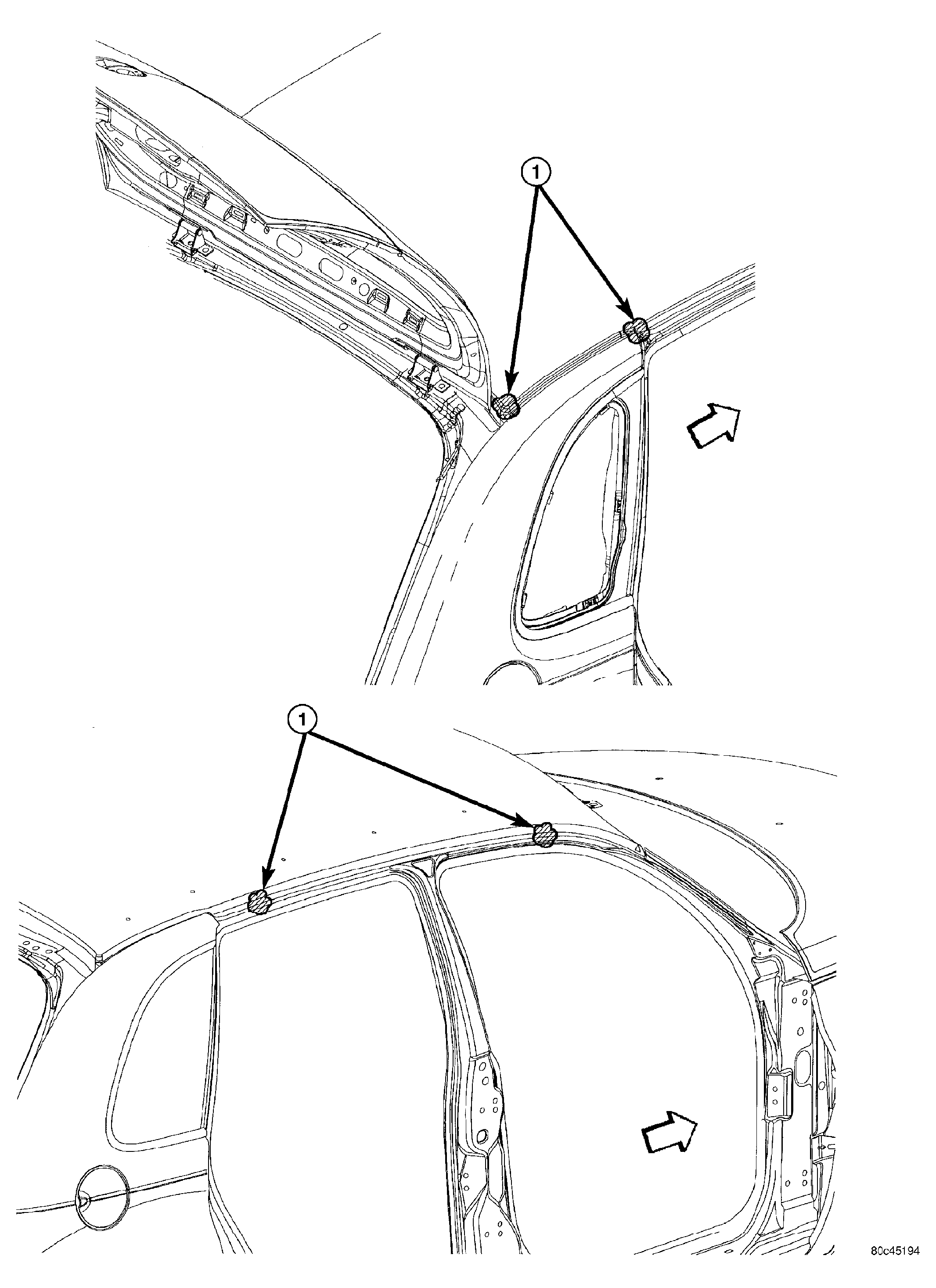

ROOF	Fig 5.

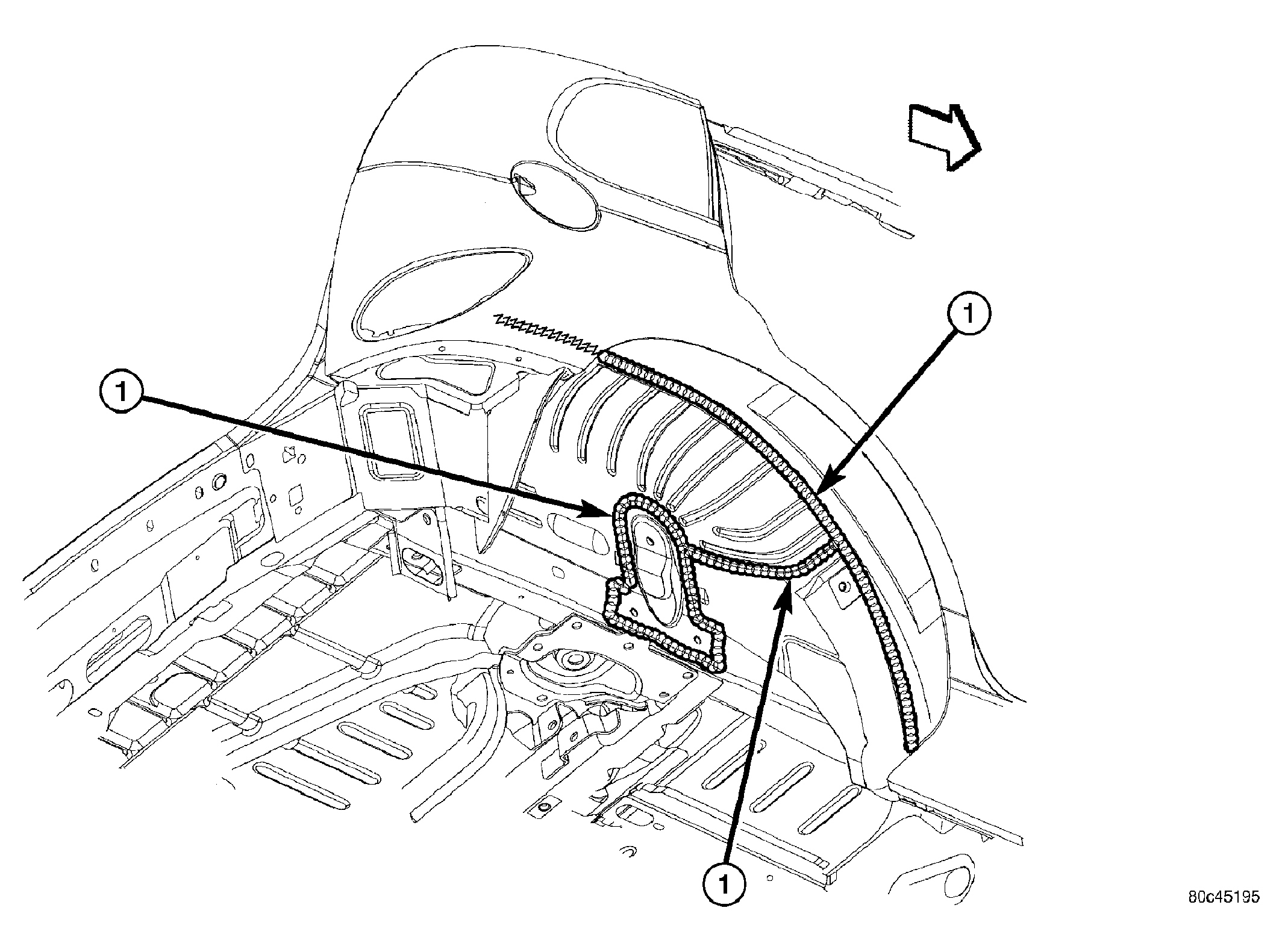

INNER WHEELHOUSE	Fig 6.
COWL PLENUM	Fig 7.

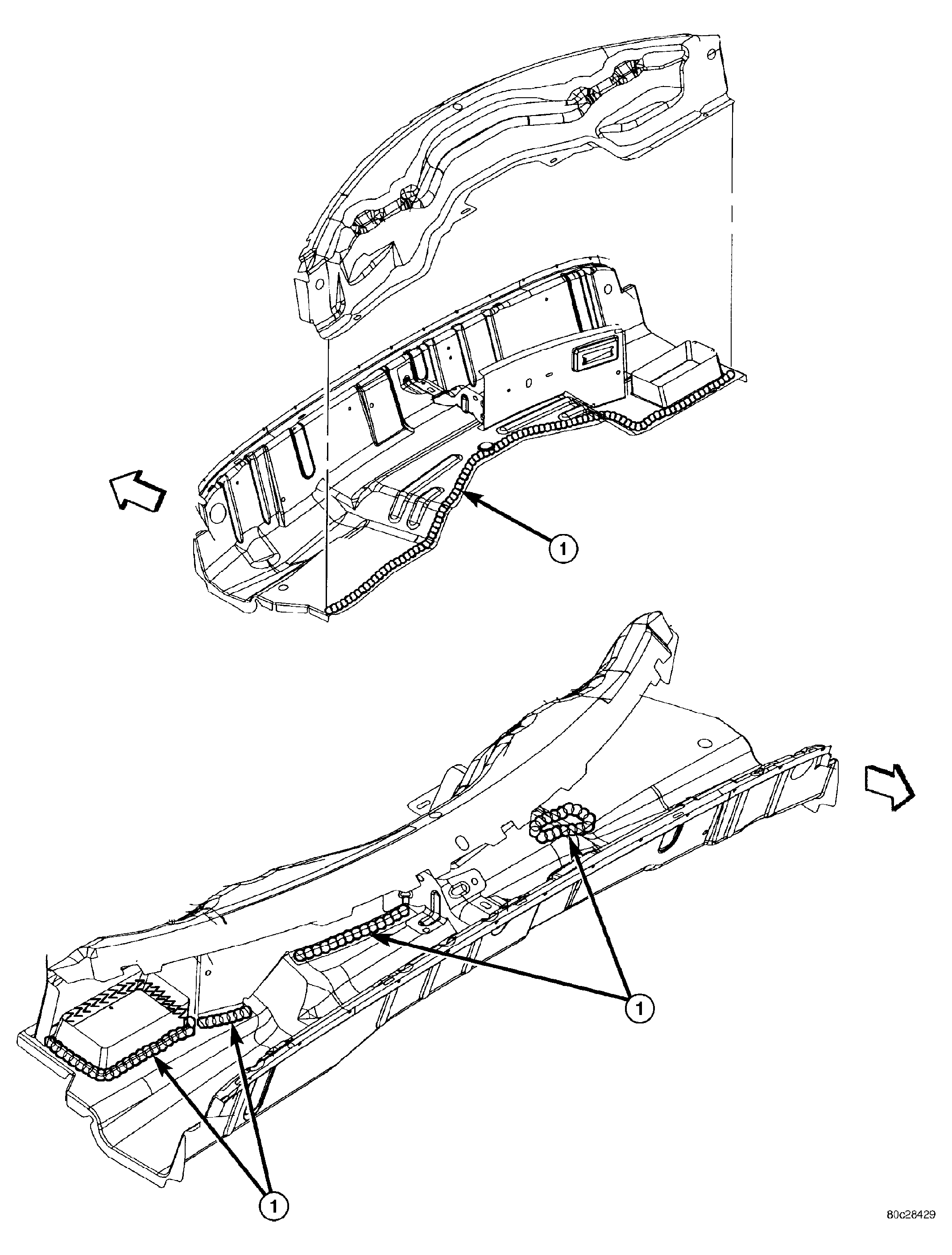

COWL and COWL PLENUM	Fig 8.
COWL PLENUM and DASH PANEL	Fig 9.

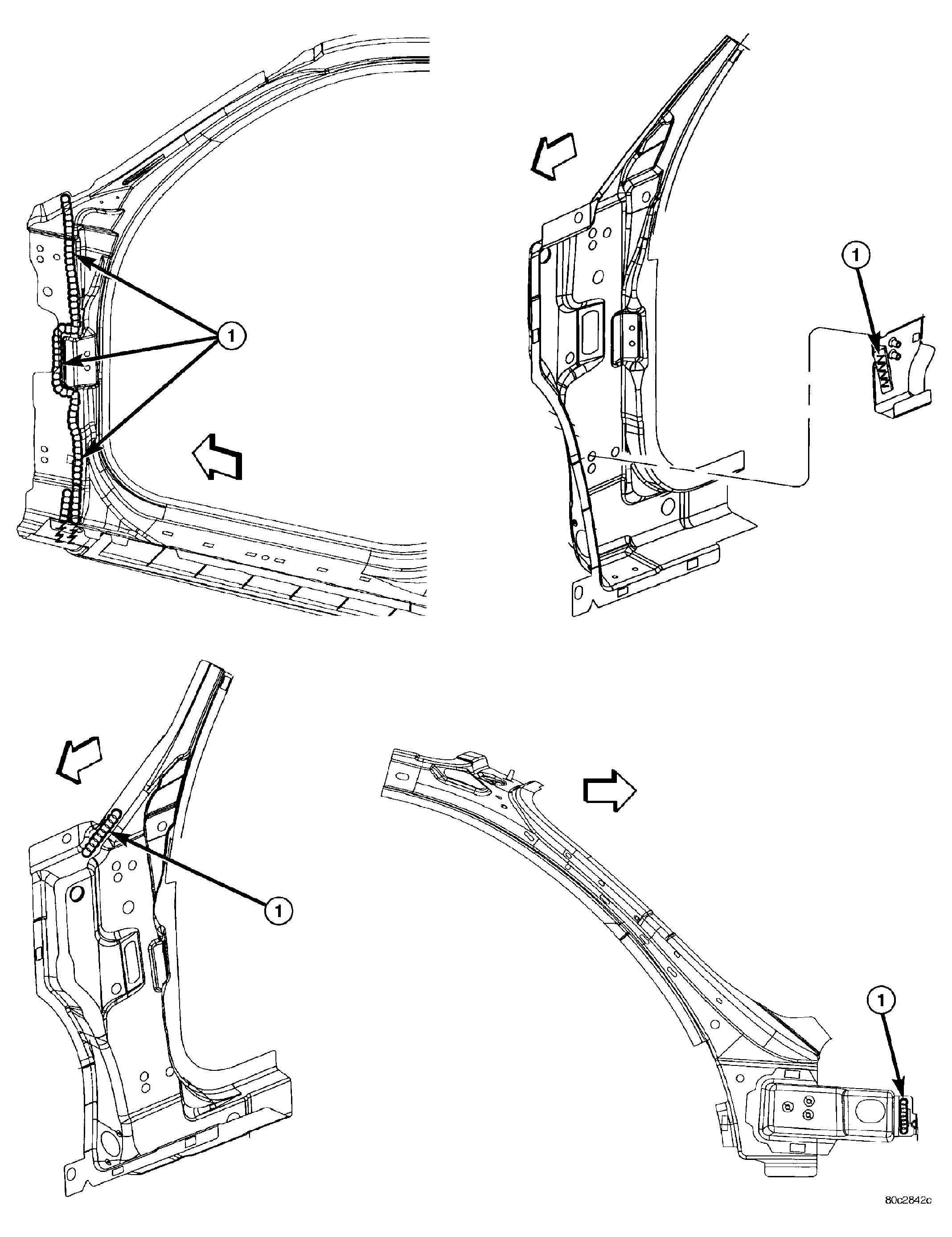

COWL SIDE	Fig 10.

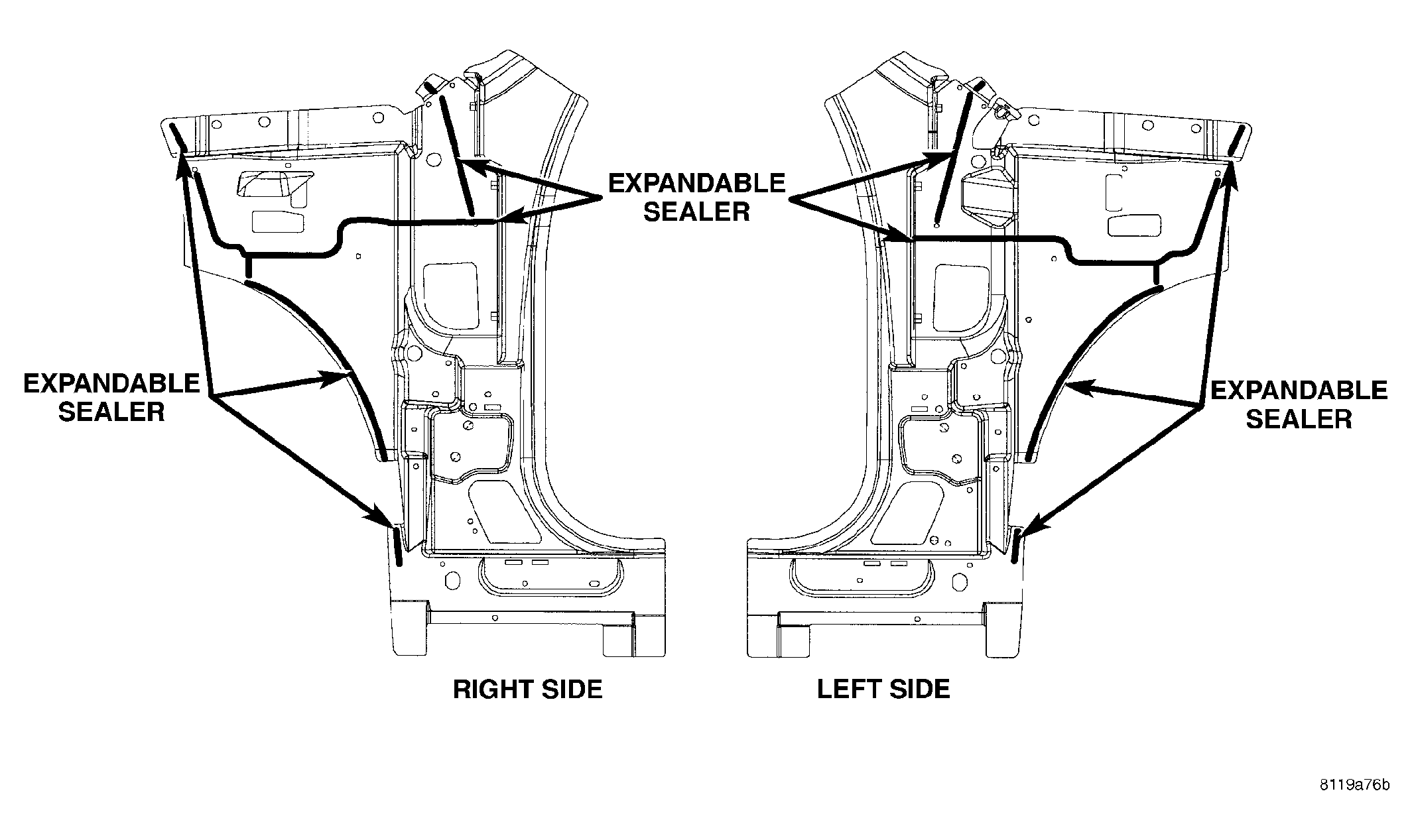

INNER COWL SIDES	Fig 11.

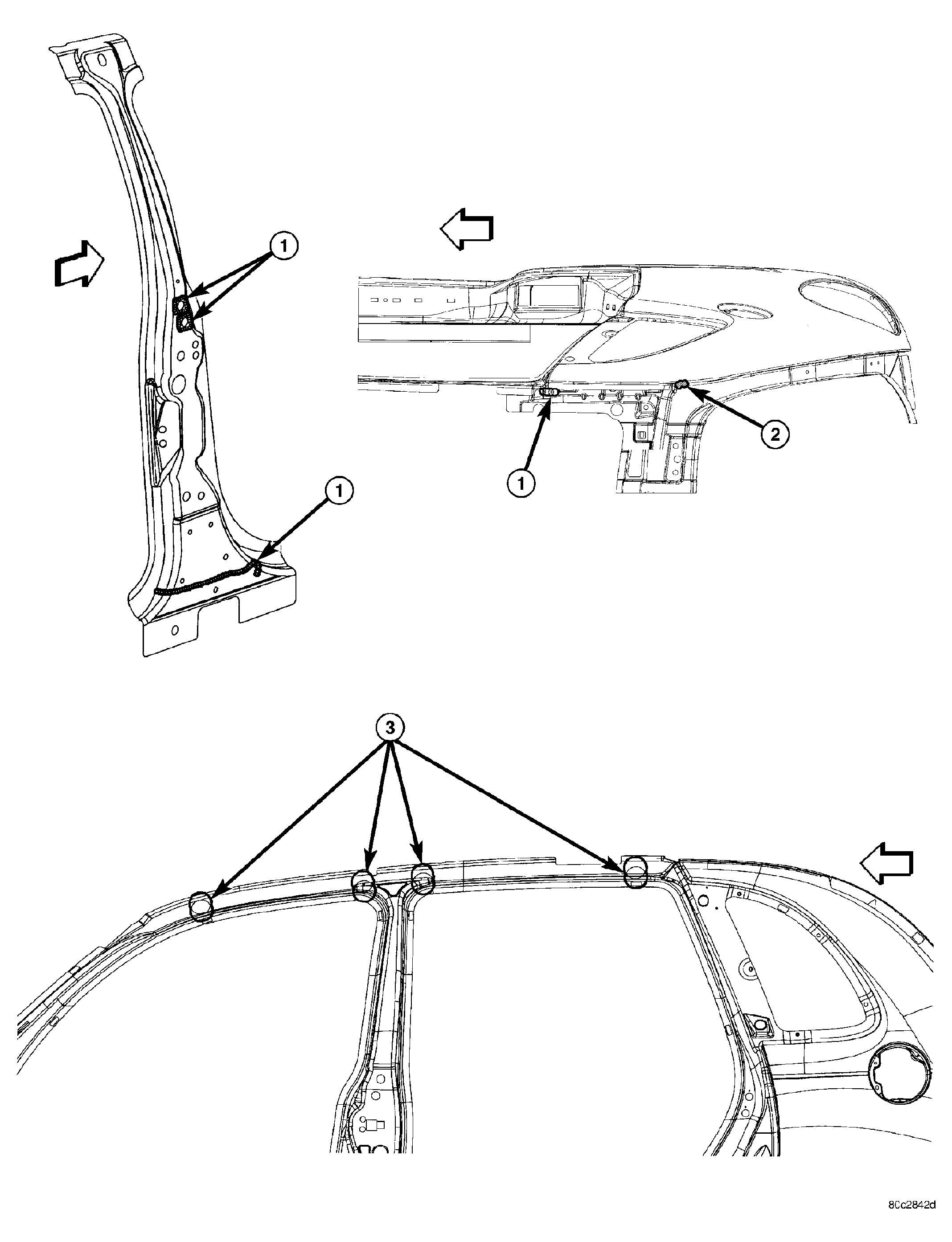

BODY SIDE APERTURE	Fig 12.

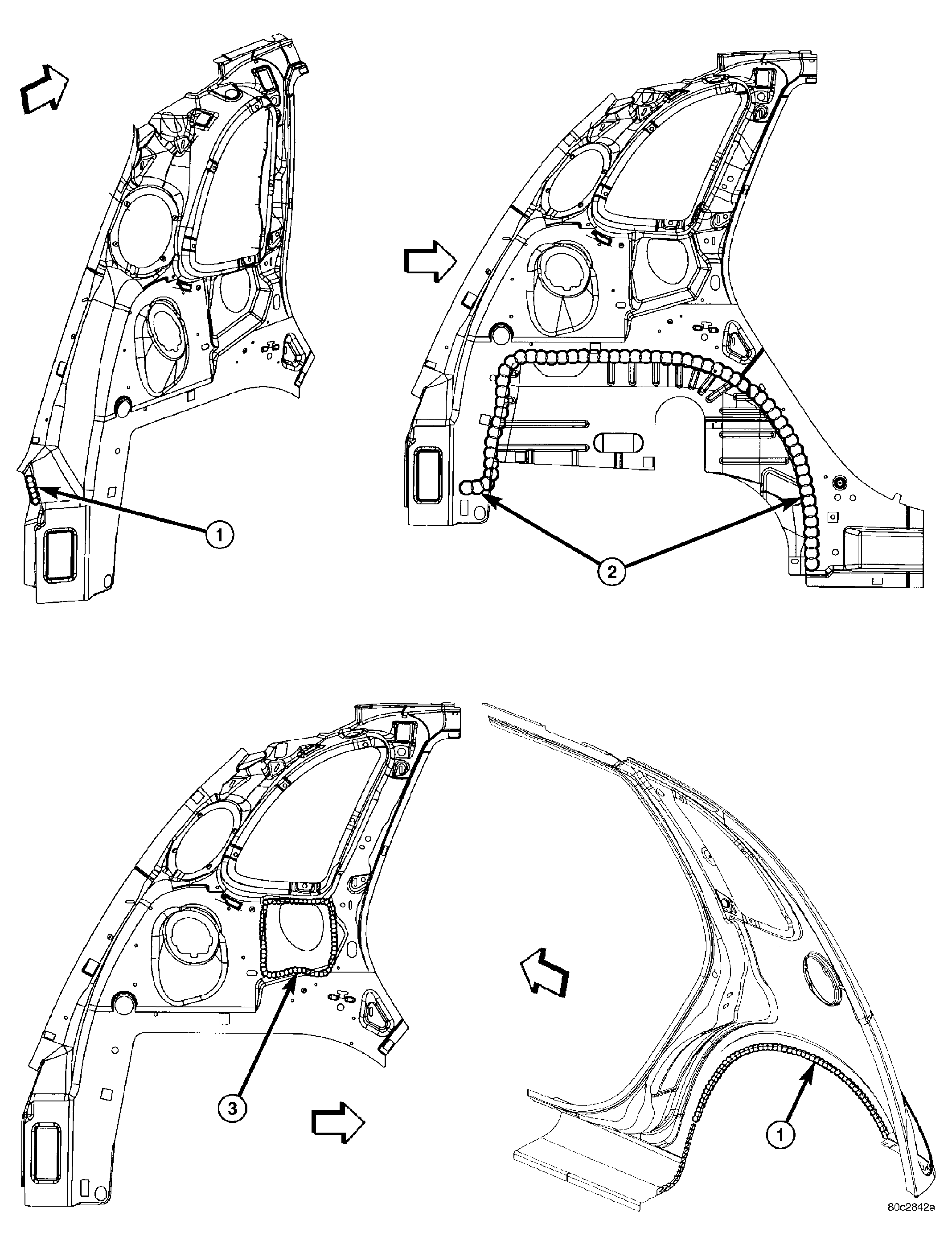

BODY SIDE QUARTER PANEL APERTURE	Fig 13.
REAR FLOOR PAN	Fig 14.

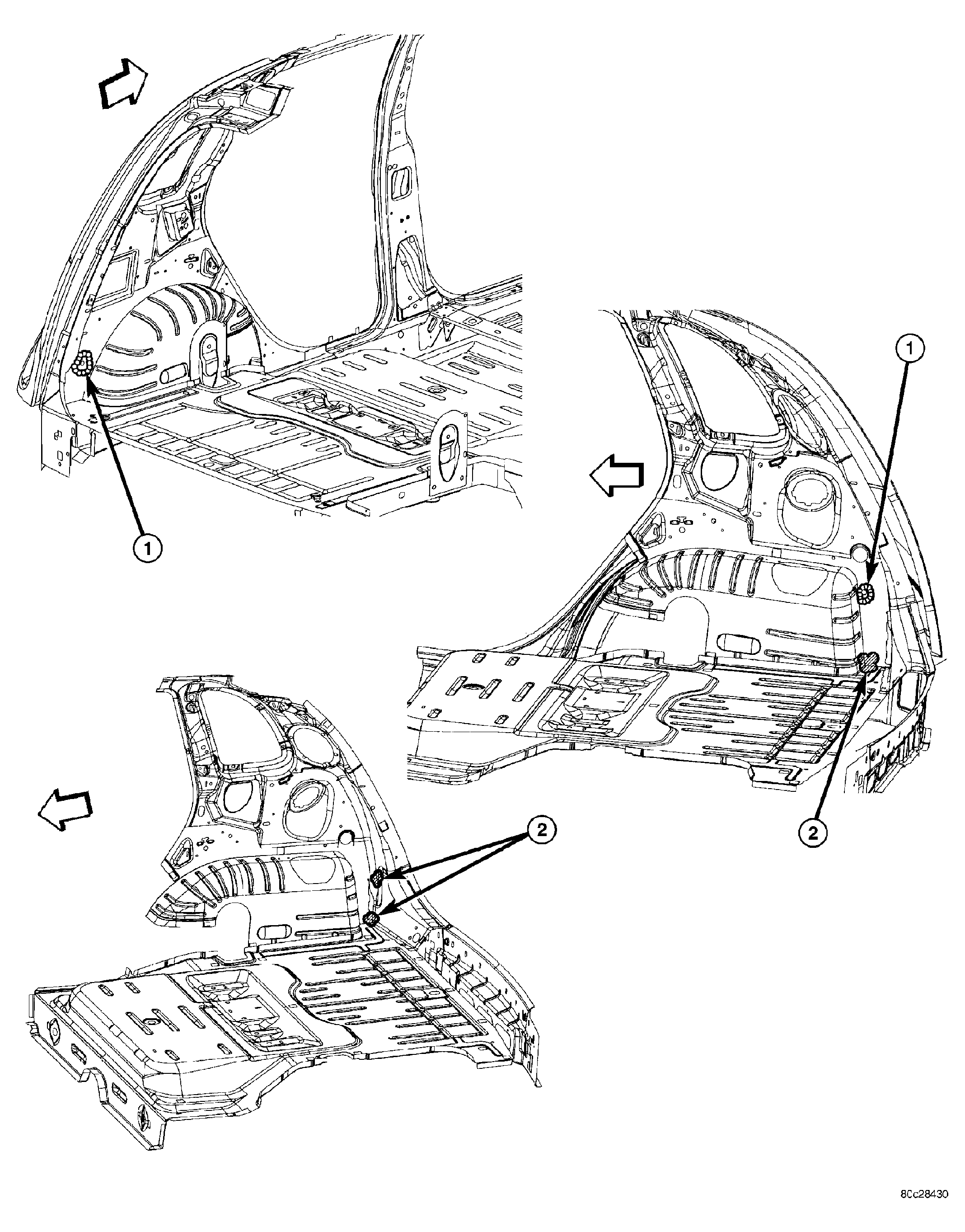

CARGO AREA	Fig 15.
INNER COWL SIDES	Fig 16.

1 - THUMBGRADE SEALER

1 - SPRAYABLE NON-PAINTABLE SEALER

1 - SPRAYABLE NON-PAINTABLE SEALER

1 - THUMBGRADE SEALER

1 - SPRAYABLE NON-PAINTABLE SEALER

1 - PUMPABLE SEALER

1 - NON-EXPANDABLE THUMBGRADE SEALER

2 - EXPANDABLE SEALER TAPE

1 - EXPANDABLE SEALER

1 - PUMPABLE SEALER

1 - SEALER TAPE

2 - THUMBGRADE SEALER

3 - PUMPABLE SEALER

1 - PUMPABLE SEALER

2 - EXPANDABLE BEAD SEALER

3 - SEALER TAPE

1 - PUMPABLE SEALER

1 - SEALER TAPE

2 - THUMBGRADE SEALER
