Connector/Ground/Splice Location: Description

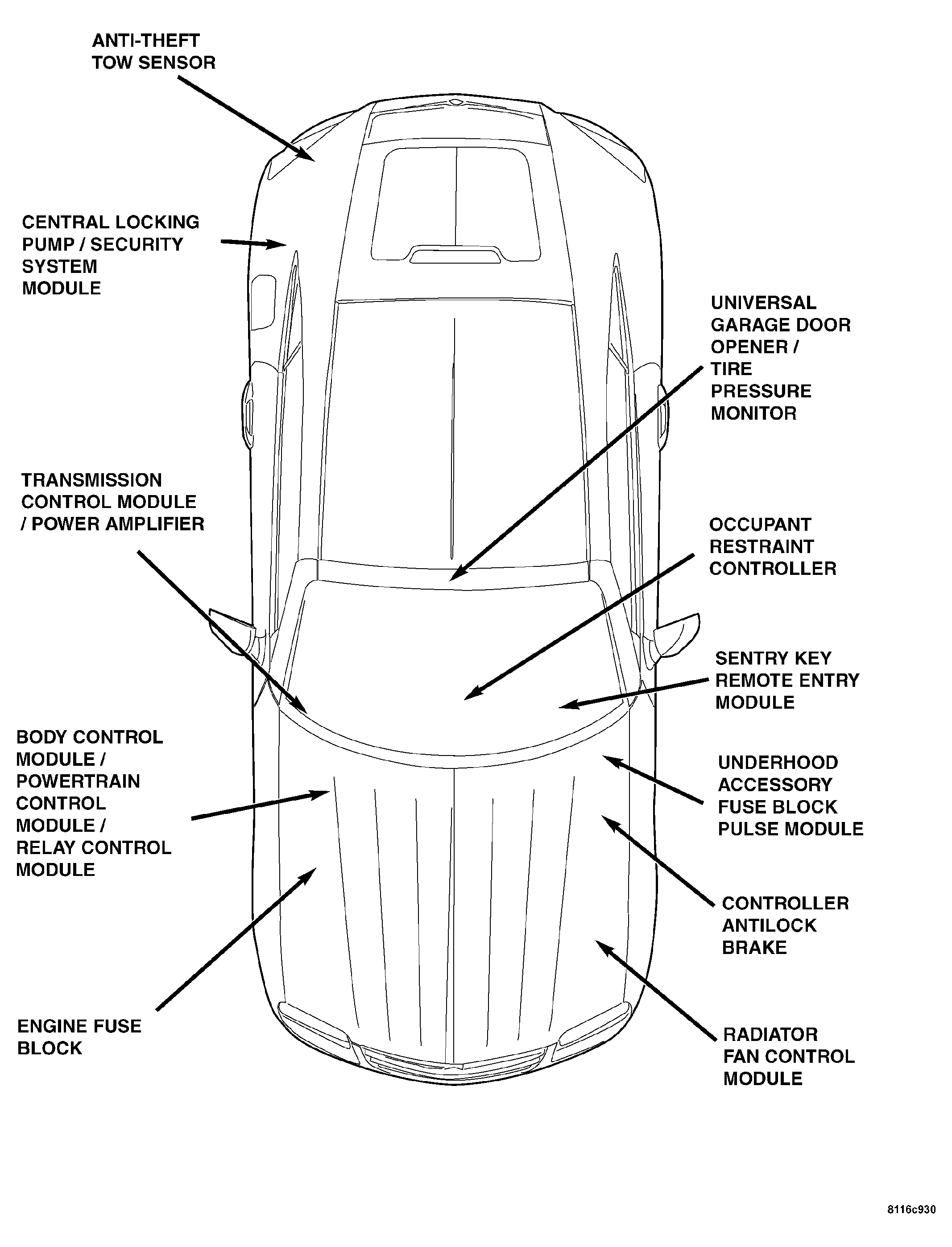

This article provides illustrations identifying connector, ground and splice locations in the vehicle. Connector, ground and splice indexes are provided. Use SYSTEM WIRING DIAGRAMS for connector, ground and splice identification. Refer to the appropriate index for the proper figure number. For items that are not shown in this section N/S is placed in the Fig. column.

CONNECTOR NAME/NUMBER	COLOR	LOCATION	FIG.
A/C Compressor Clutch	BK	Lower Left Side of Engine	Fig 11.
A/C Heater Control Module	BK	Center of Instrument Panel	Fig 16.
A/C Pressure Sensor	BK	Behind the Left Front Headlamp	N/S
Accelerator Pedal Position Sensor	BK	Top of Accelerator Pedal	NS
Air Pump (Except SRT)	BK	Center Top Engine	N/S

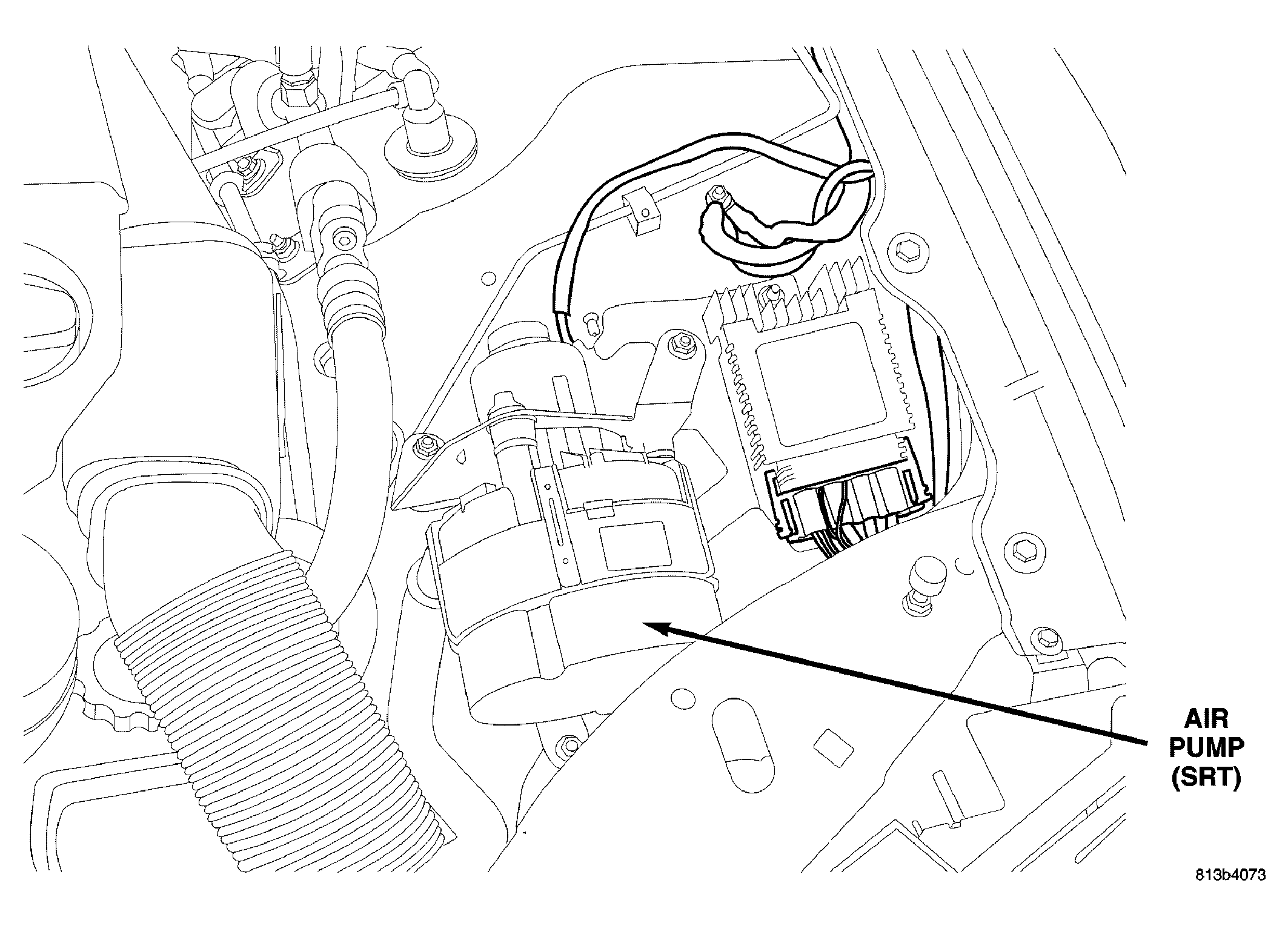

	Air Pump (SRT)	Left Side - Engine	Fig 18.
Air Pump Fuse	-	On the Relay Control Module	Fig 8.
Air Pump Relay	-	In the Relay Control Module	Fig 8.

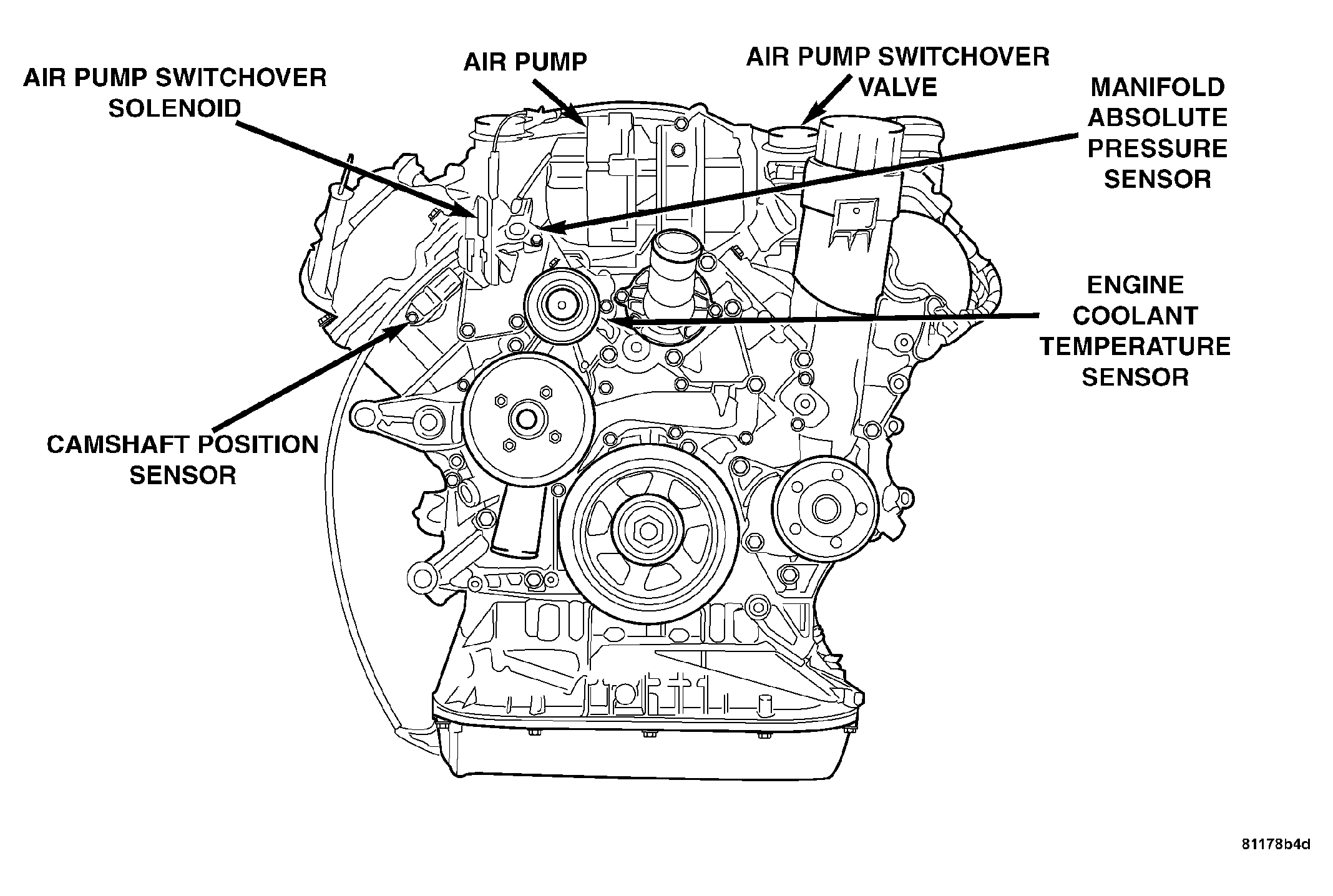

Air Pump Switchover Solenoid	BK	Front of Engine	Fig 12.
Airbag Off Indicator Lamp	BK	Center of Instrument Panel	N/S
	Airbag ON/OFF Switch	Right Side of Dash	N/S
Ambient Temperature Sensor	BK	Lower Left Grille	N/S
Antenna C1 (ZH27)	BK	Left Rear Quarter Panel	Fig 22.

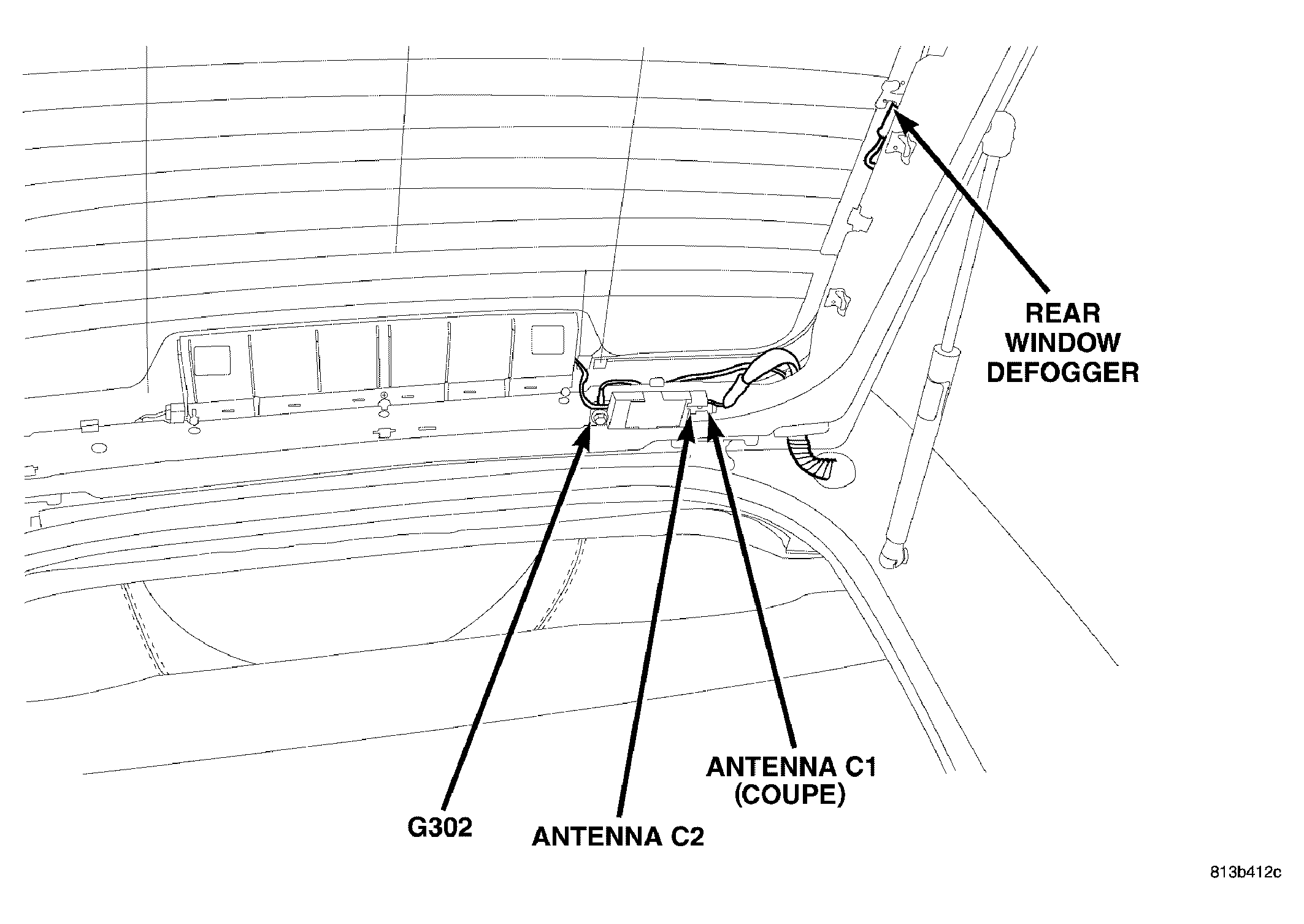

Antenna C1 (ZH29)	BK	Underside Lower Liftgate	Fig 22.
Antenna C2	BK	Underside Lower Liftgate	Fig 22.

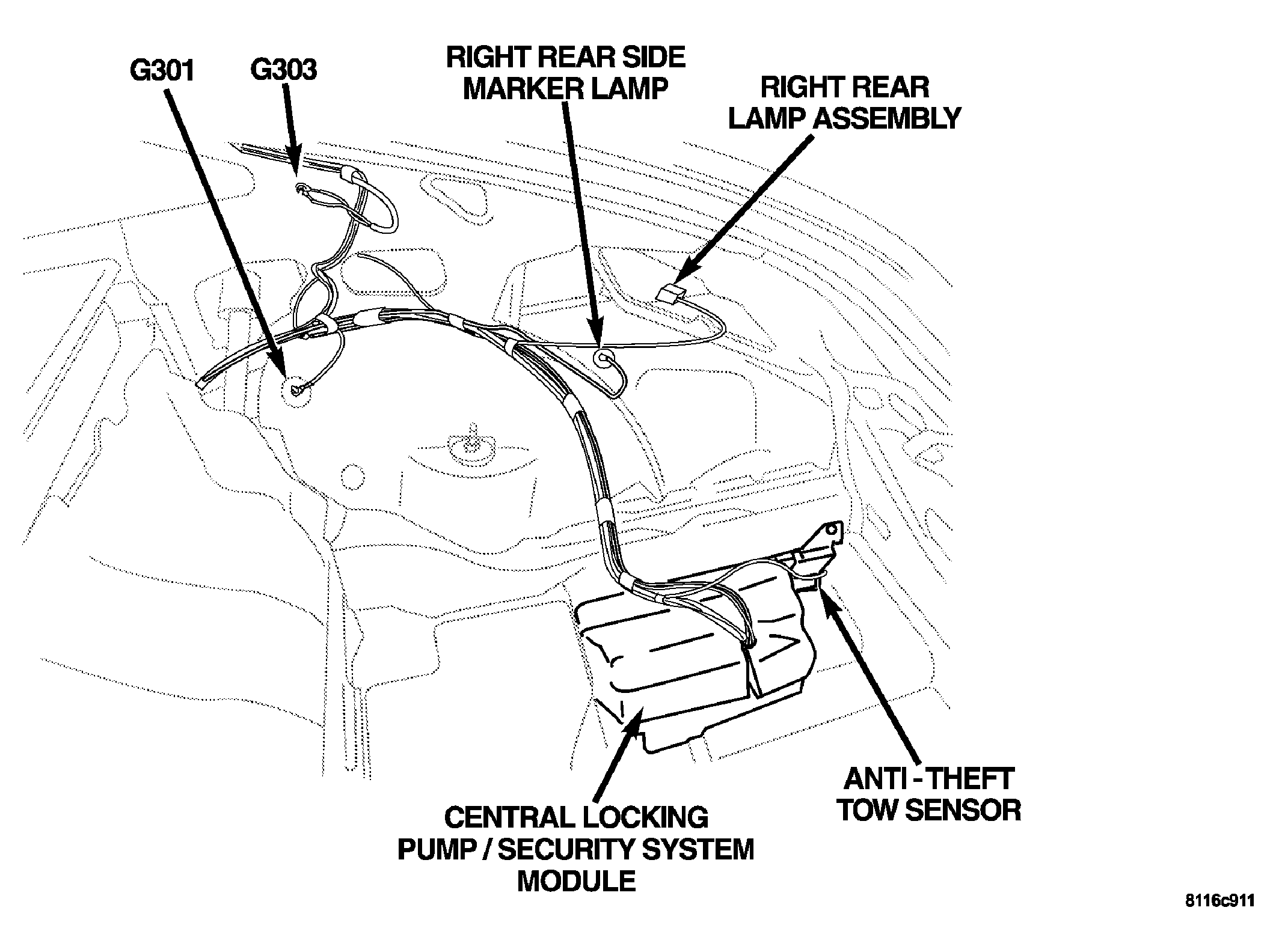

Anti-Theft Tow Sensor	BK	Right Rear Lower Luggage Compartment	Fig 3.
Ash Receiver Lamp	BK	Center of Instrument Panel	N/S
Automatic Day/Night Mirror	BK	Top of Windshield	N/S

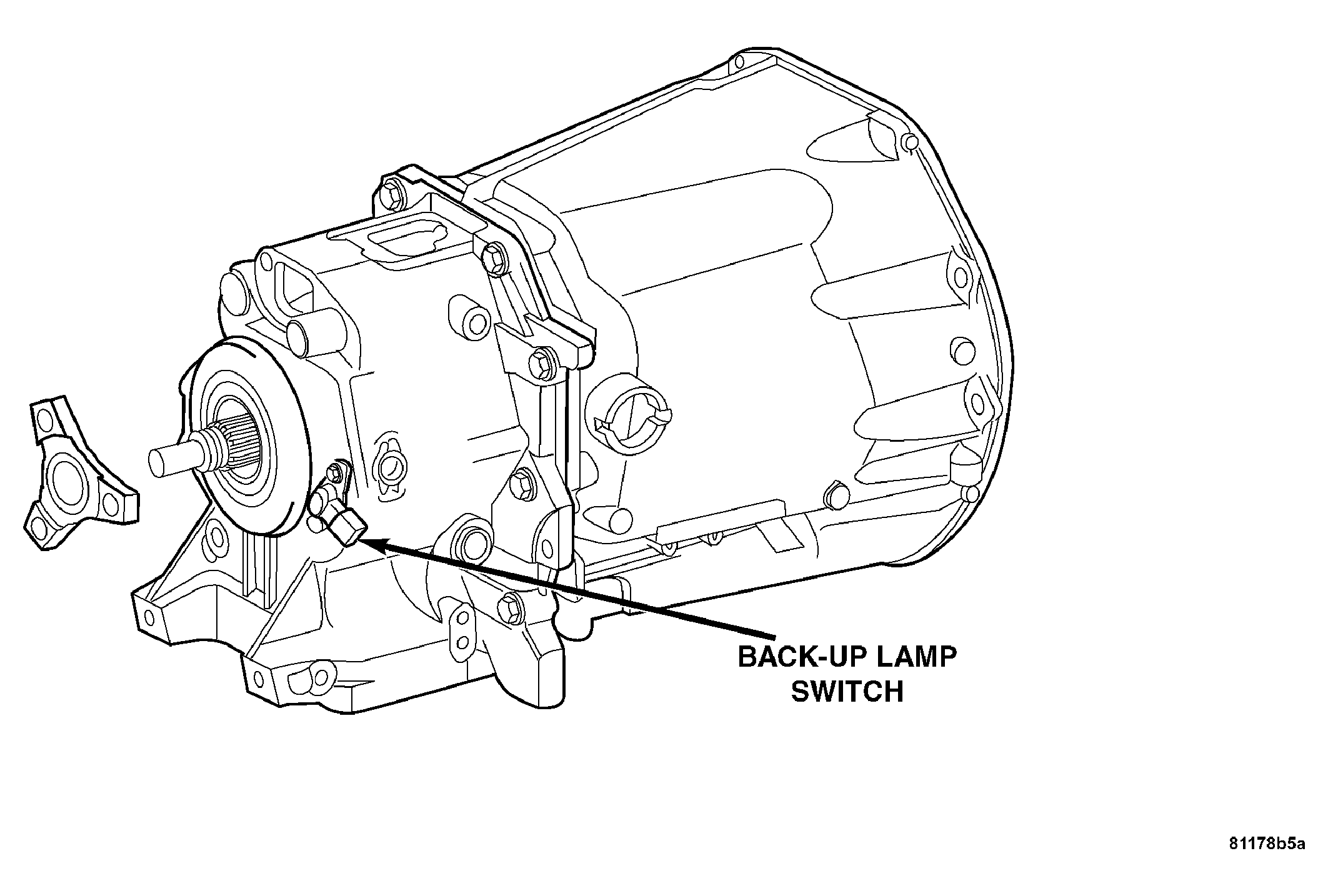

Backup Lamp Switch	BK	Right Side of Transmission	Fig 14.
BAS Brake Booster C1	BK	Left Rear of Engine Compartment	N/S
BAS Brake Booster C2	BK	Left Rear of Engine Compartment	N/S

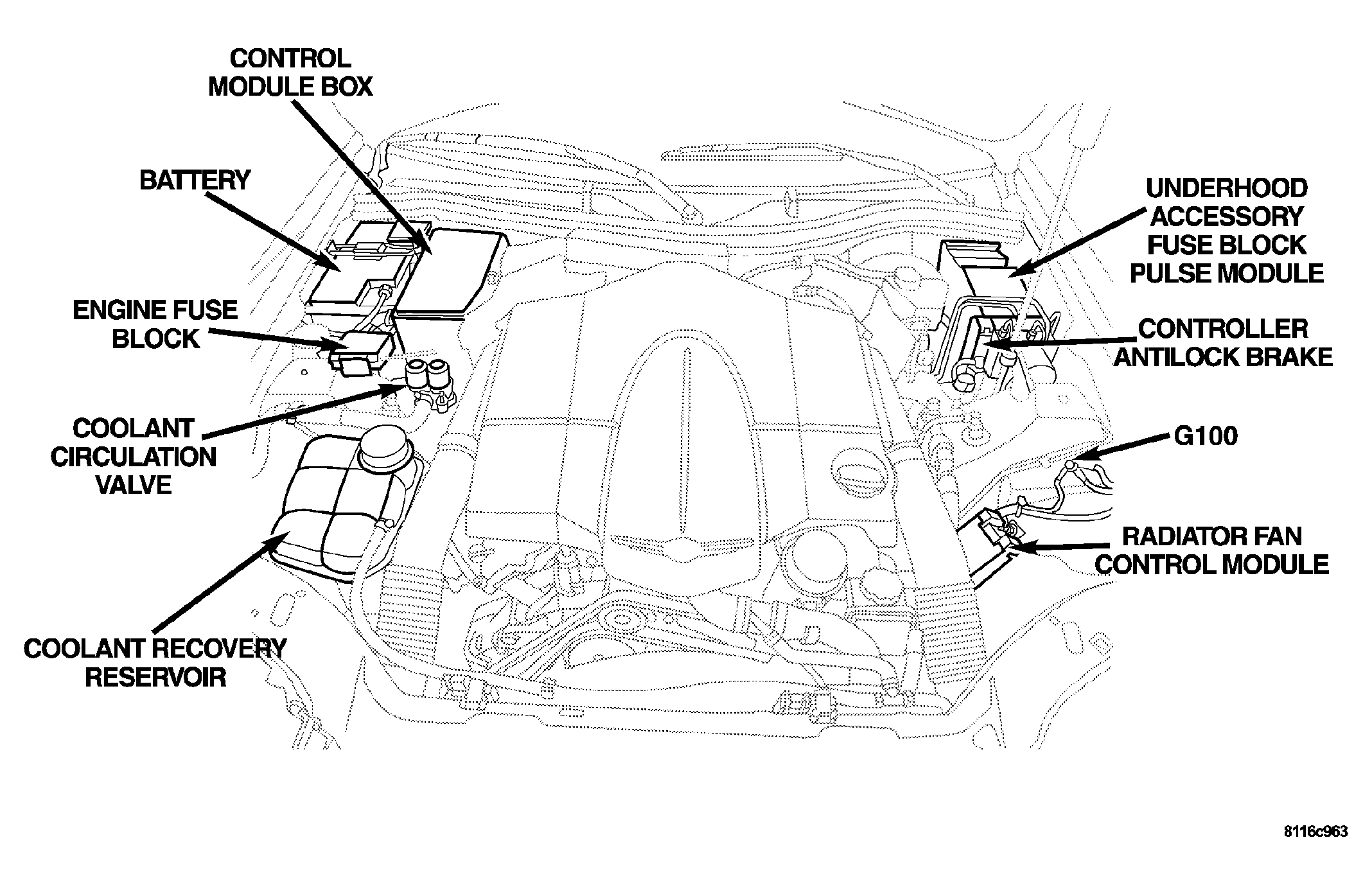

Battery	-	Right Rear of Engine Compartment	Fig 9.
Blower Motor	BK	Under Passenger Side of Instrument Panel	N/S
Body Control Module C1	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Body Control Module C2	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Body Control Module C3	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Body Control Module C4	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.

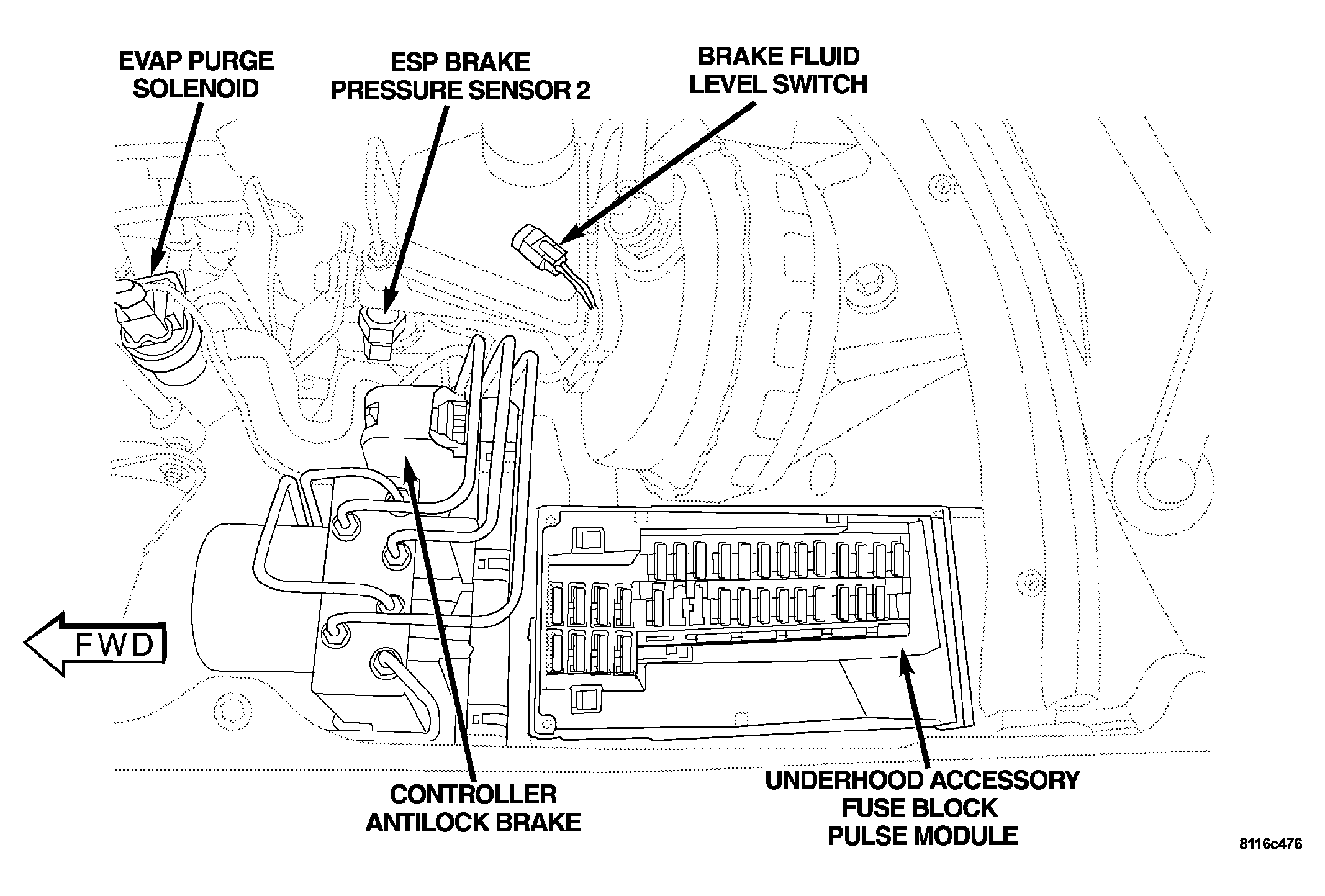

Brake Fluid Level Switch	BK	Left Rear of Engine Compartment	Fig 1.

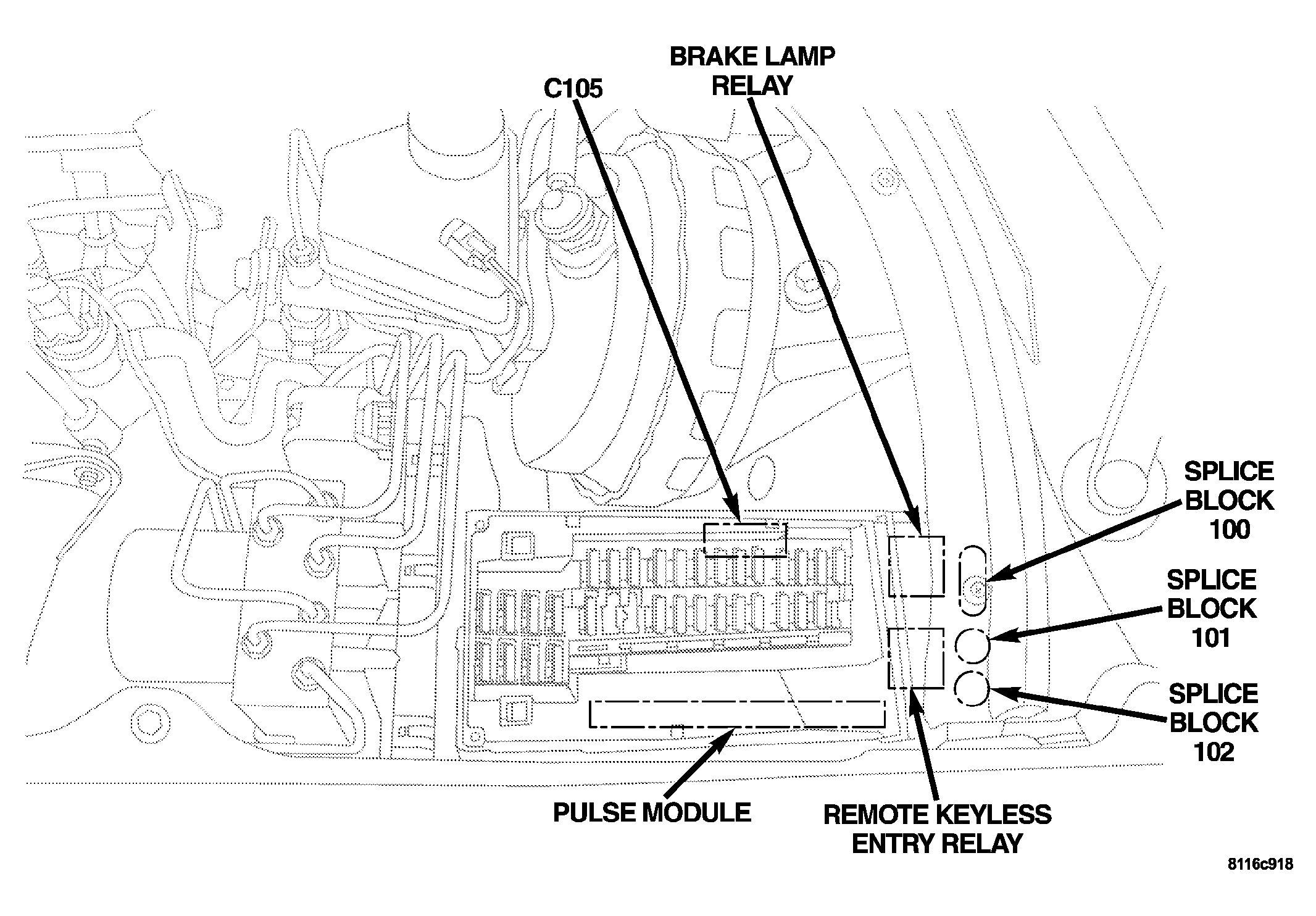

Brake Lamp Relay	YL	Left Rear of Engine Compartment at Rear of Underhood Accessory Fuse Block	Fig 4.
Brake Lamp Switch A (A/T)	BK	Top of Brake Pedal	N/S
Brake Lamp Switch A (ZH29 M/T)	BK	Top of Brake Pedal	N/S
Brake Lamp Switch B (ZH29 A/T)	BK	Top of Brake Pedal	N/S
Brake Lamp Switch B (ZH29 M/T)	BK	Top of Brake Pedal	N/S
	C100 (ZH27)	GN	N/+S
C100 (ZH29)	BK	Left of Steering Column Behind the Instrument Panel	N/S
C105	BK	Left Rear of Engine Compartment Under the Underhood Accessory Fuse Block	Fig 4.

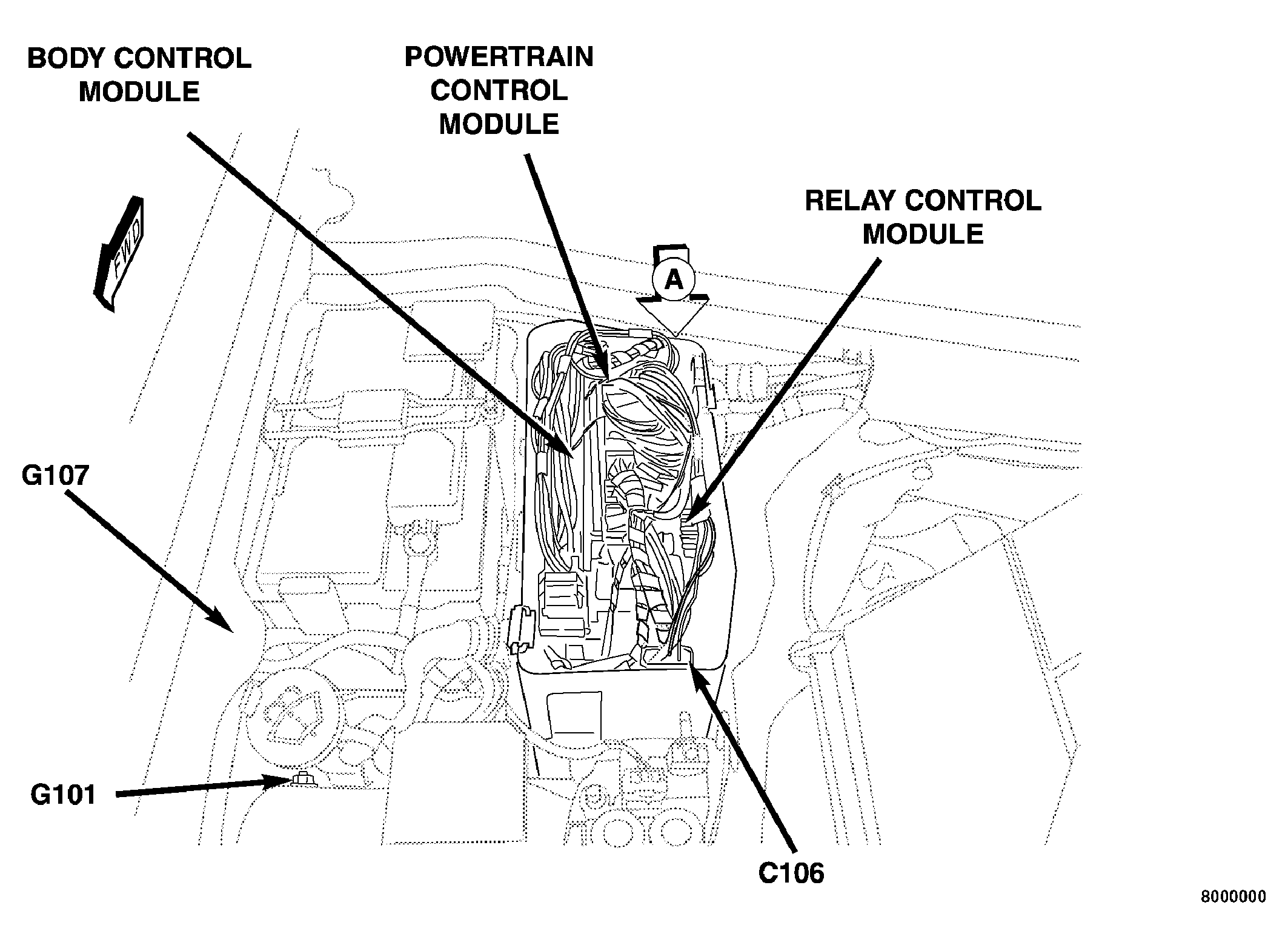

C106	BK	In the Control Module Box at Right Rear of Engine Compartment	Fig 8.
C200	BK	Left of Steering Column Behind the Instrument Panel	N/S

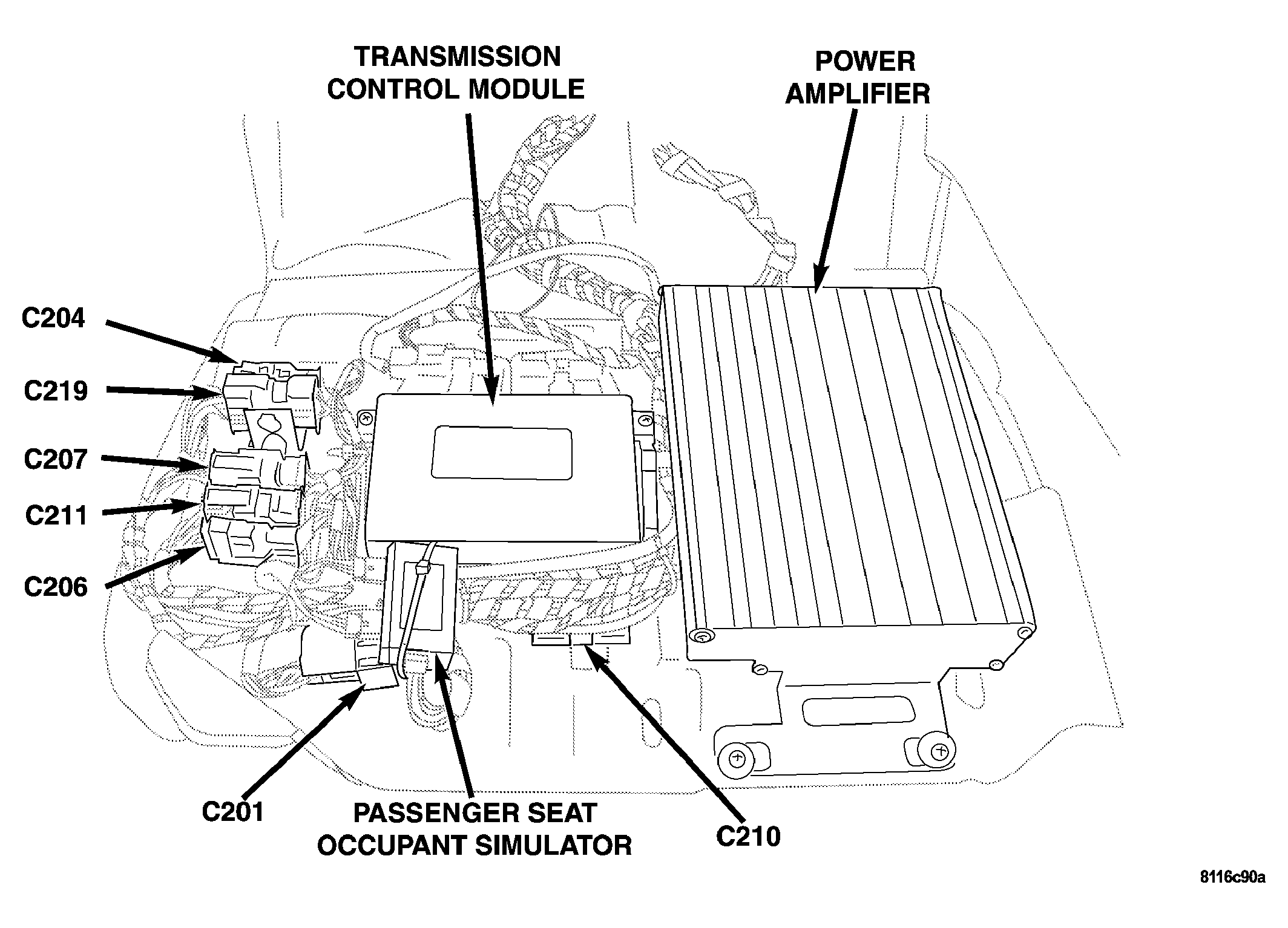

C201	BK	Behind the Passenger Footwell	Fig 2.
C204 (Except Export)	BL	Behind the Passenger Footwell	Fig 2.
C206	BK	Behind the Passenger Footwell	Fig 2.
C207 (A/T)	BK	Behind the Passenger Footwell	Fig 2.
C210	RD	Behind the Passenger Footwell	Fig 3.
C211	BL	Behind the Passenger Footwell	Fig 2.
C219	OR	Behind the Passenger Footwell	Fig 2.
C223 (MALE)	YL	Lower Driver Side Behind Kickpanel	N/S
C223 (FEMALE)	BK	Lower Driver Side Behind Kickpanel	N/S

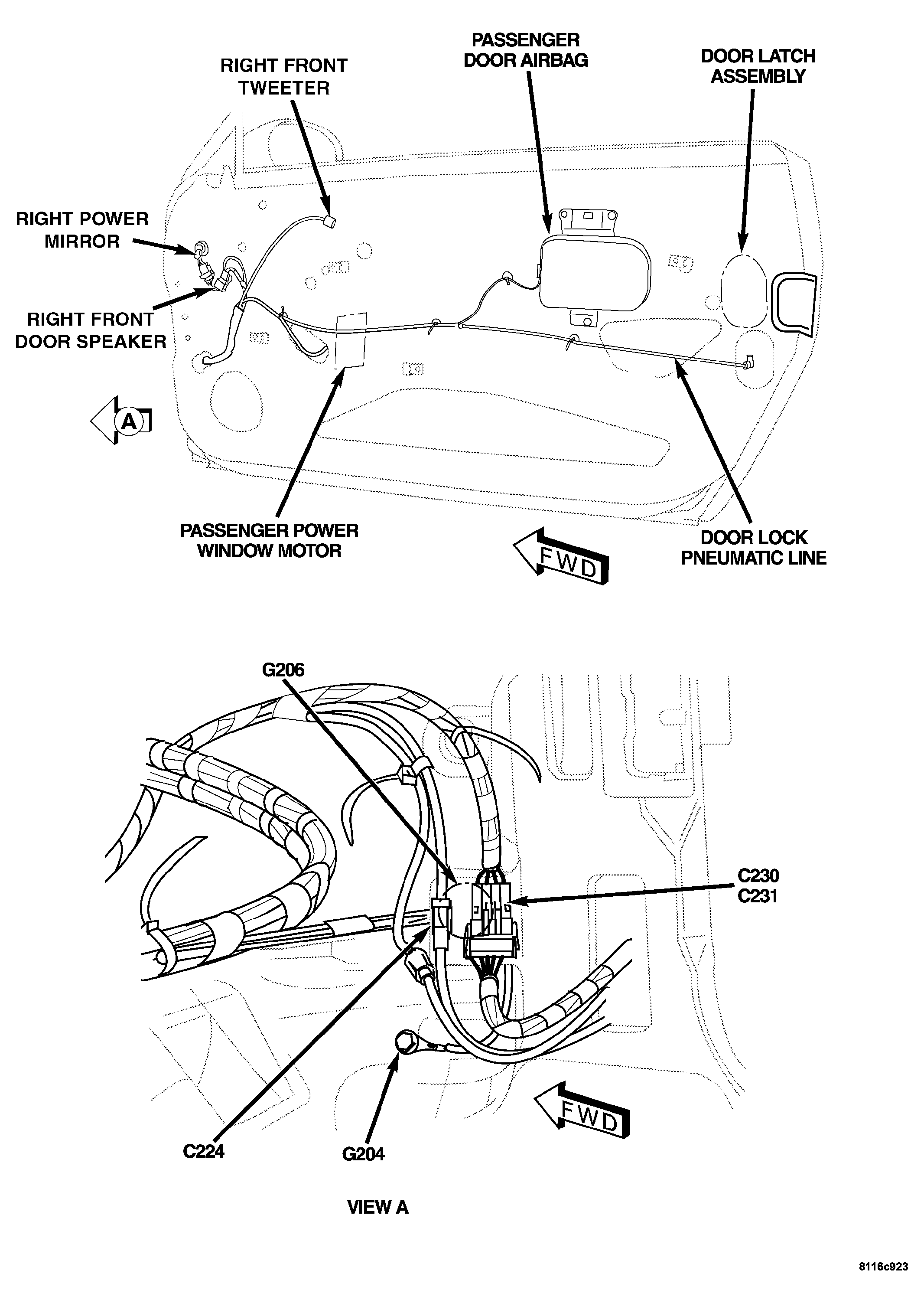

C224 (MALE)	YL	Lower Passenger Side Behind Kickpanel	Fig 6.
C224 (FEMALE)	BK	Lower Passenger Side Behind Kickpanel	Fig 6.
C226	OR	Left of Steering Column Behind the Instrument Panel	N/S
C227	BL	Left of Steering Column Behind the Instrument Panel	N/S
C228	BK	Lower Driver Side Behind Kickpanel	N/S
C229	BK	Lower Driver Side Behind Kickpanel	N/S
C230	BK	Lower Passenger Side Behind Kickpanel	Fig 6.
C231	BK	Lower Passenger Side Behind Kickpanel	Fig 6.
C232	RD	Left of Steering Column Behind Instrument Panel	N/S
	C300 (ZH27)	BL	NS
	C301 (ZH27)	BK	NS
	C302 (ZH27)	BK	NS
Camshaft Position Sensor	BK	Right Front of Engine	Fig 11.
Cargo Lamp	BK	Left Rear of the Luggage Compartment	N/S
Center High Mounted Stop Lamp (CHMSL)	BK	Top of the Liftgate	N/S
Central Locking Pump/Security System Module C1	WT	Right Rear of the Luggage Compartment	Fig 3.
Central Locking Pump/Security System Module C2	BK	Right Rear of the Luggage Compartment	Fig 3.
Central Locking Pump/Security System Module C3	BK	Right Rear of the Luggage Compartment	Fig 3.
Central Locking Pump/Security System Module C4	BK	Right Rear of the Luggage Compartment	Fig 3.
Charcoal Canister Shutoff Valve (Except Export)	BK	Under the Right Rear in Front of the Axle	N/S

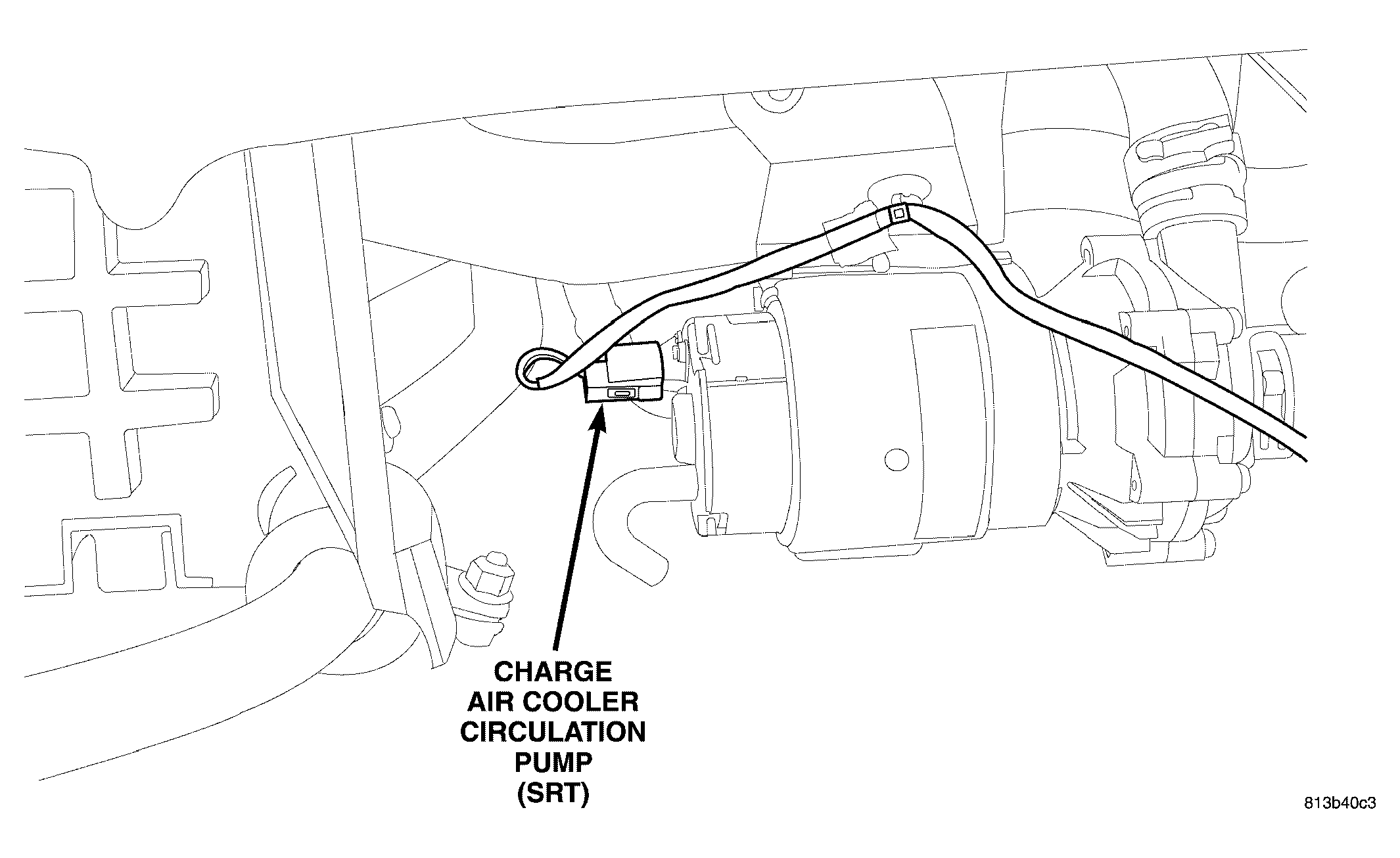

	Charge Air Cooler Circulation Pump (SRT)	Right Front of Vehicle - Lower	Fig 19.
Cigar Lighter	BK	Center of the Instrument Panel	N/S
Clockspring	BK	Center of the Steering Wheel	N/S
Clutch Interlock Switch	BK	Top of the Clutch Pedal	N/S
Clutch Pedal Position Switch	BK	Top of the Clutch Pedal	N/S

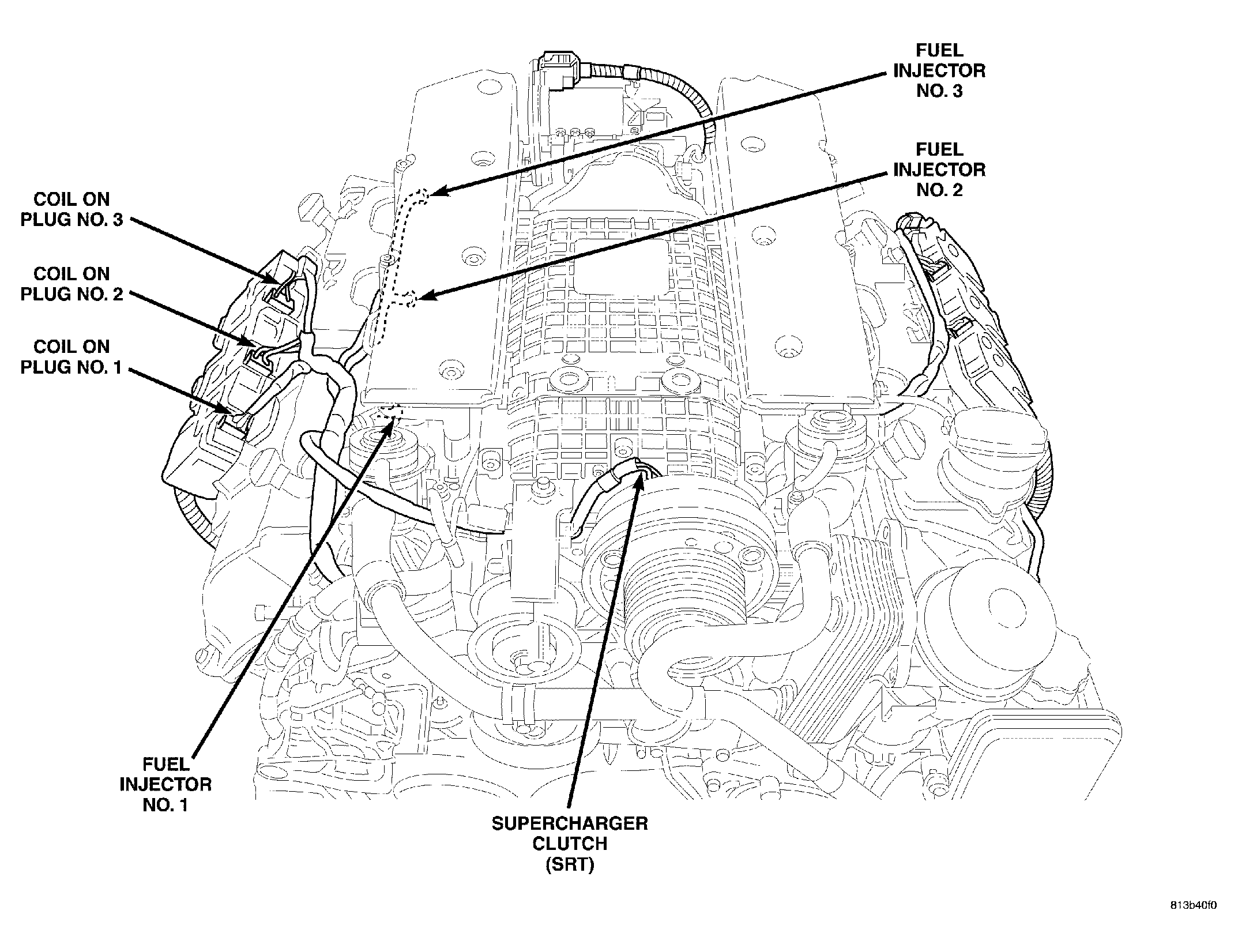

Coil On Plug No. 1	BK	On the Right Valve Cover	Fig 20.
Coil On Plug No. 2	BK	On the Right Valve Cover	Fig 20.
Coil On Plug No. 3	BK	On the Right Valve Cover	Fig 20.

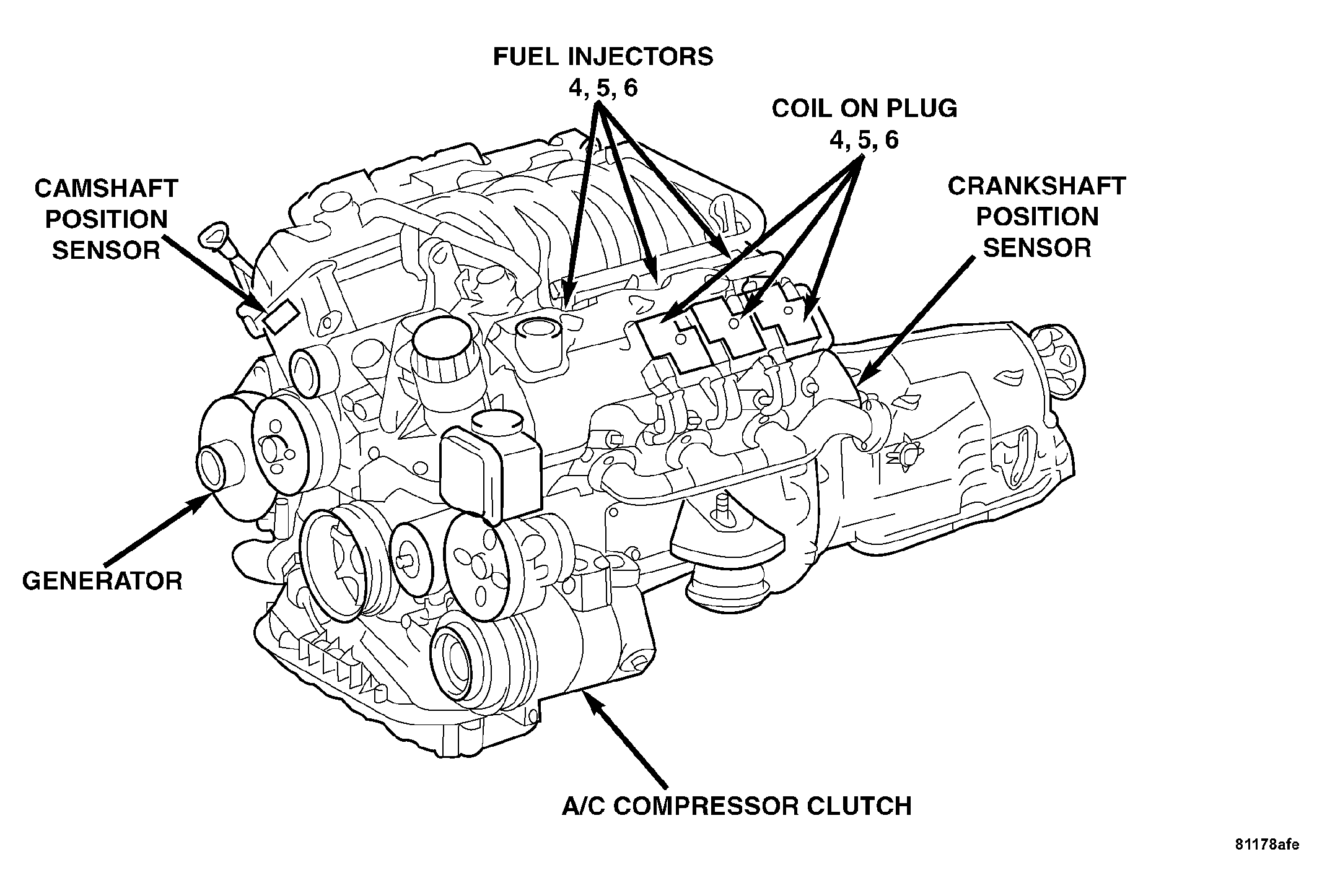

Coil On Plug No. 4	BK	On the Left Valve Cover	Fig 11.
Coil On Plug No. 5	BK	On the Left Valve Cover	Fig 11.
Coil On Plug No. 6	BK	On the Left Valve Cover	Fig 11.

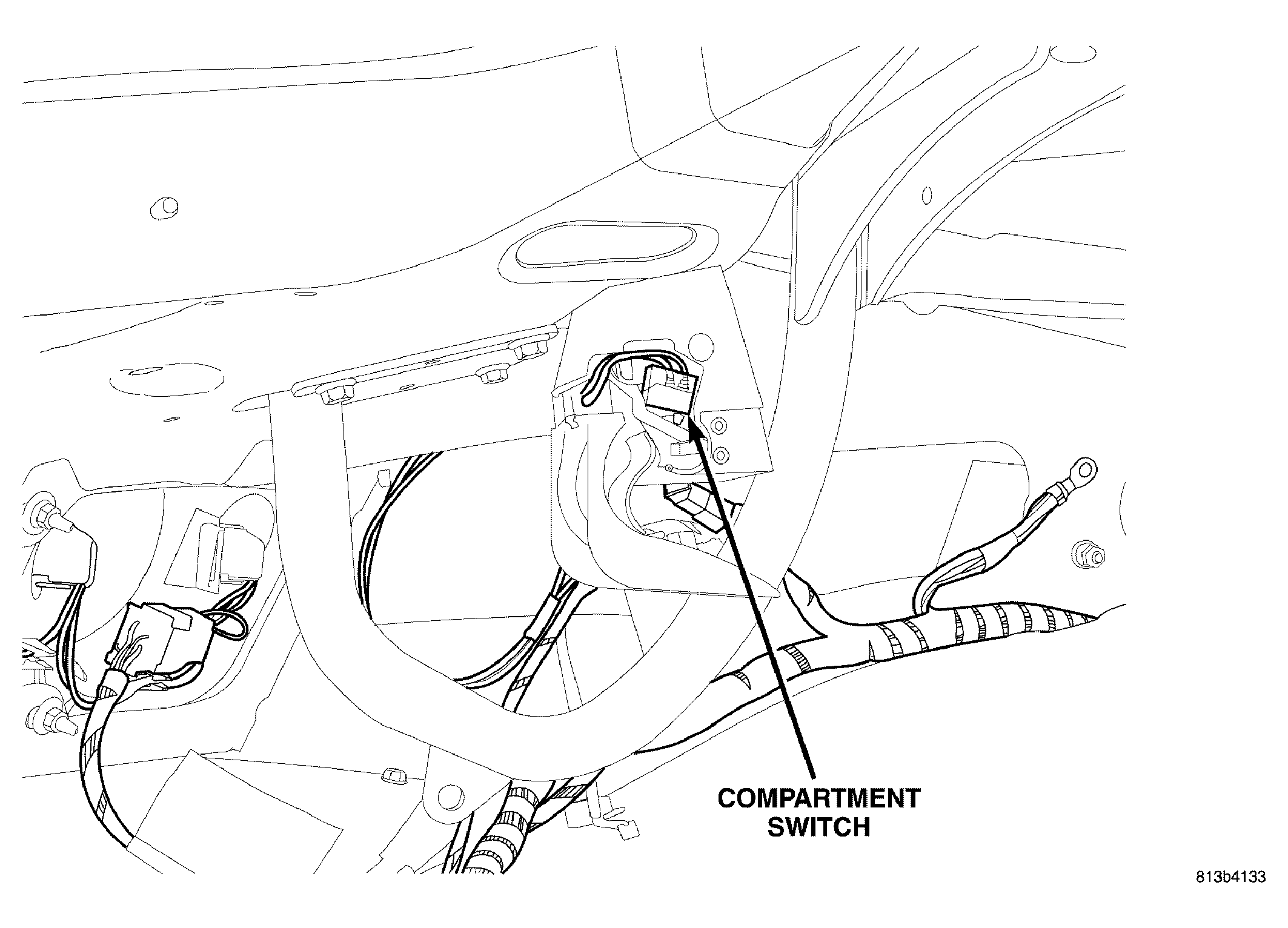

Compartment Switch (ZH27)	BK	Left Rear - Trunk	Fig 23.

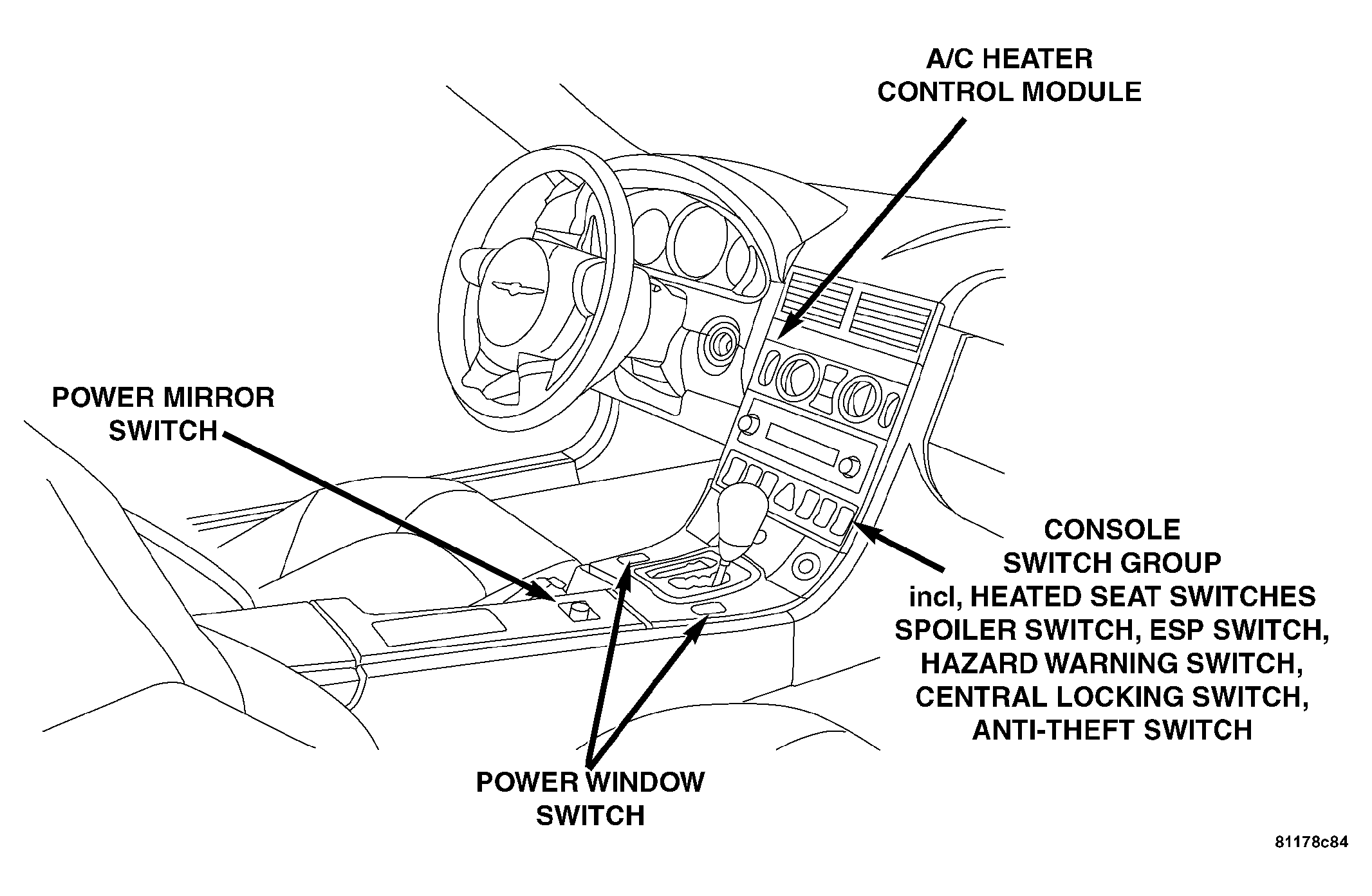

Console Switch Group	BK	Center of the Instrument Panel	Fig 16.
Controller Antilock Brake (MK20)	BK	Left Rear of Engine Compartment	Fig 1.
Controller Antilock Brake (MK25)	BK	Left Rear of Engine Compartment	Fig 1.
Coolant Circulation Pump	BK	Below Right Headlamp	N/S

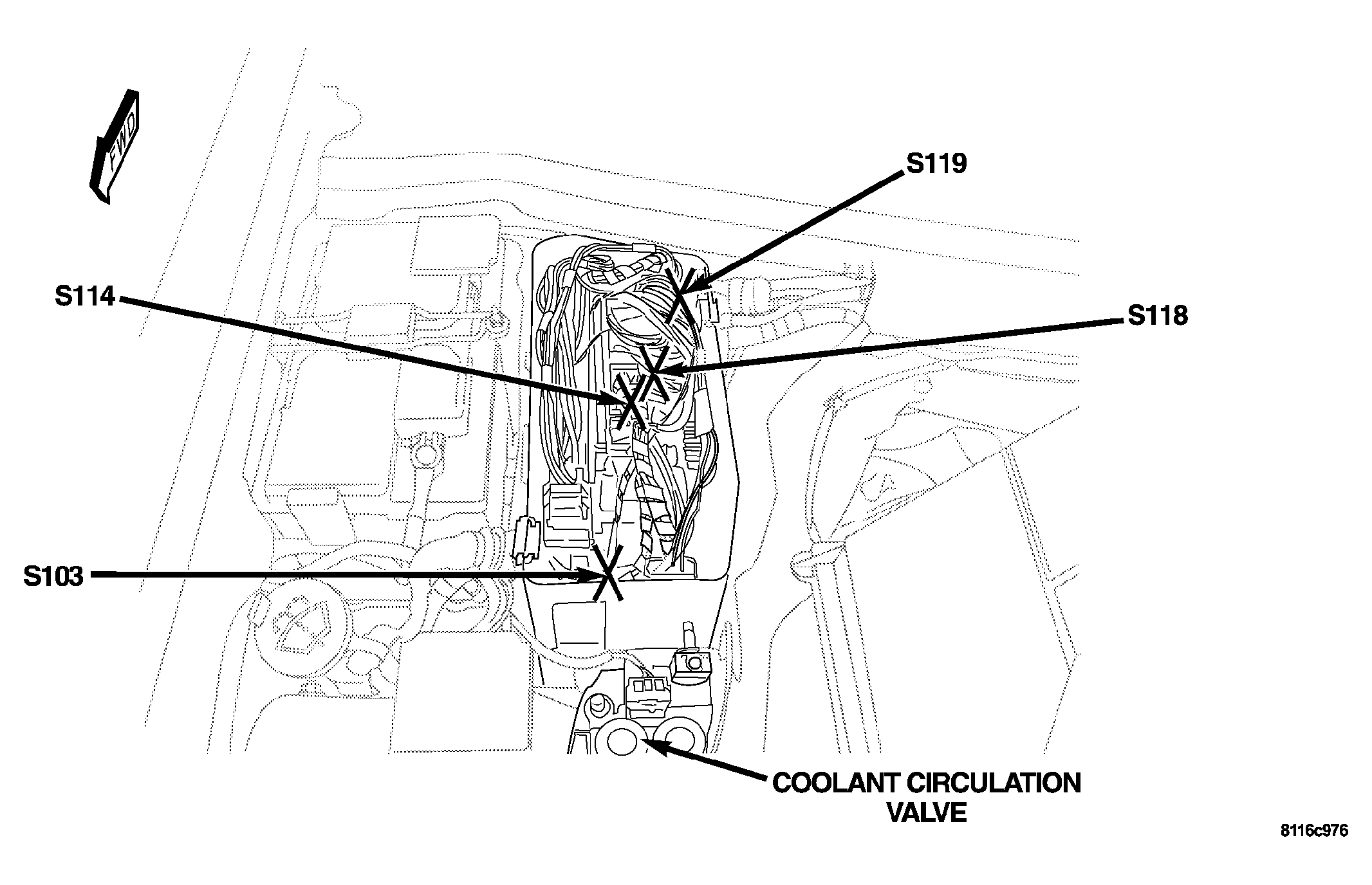

Coolant Circulation Valve	BK	Right Rear of Engine Compartment in Front of Control Module Box	Fig 9.
Coolant Level Sensor	BK	Right Front of Engine Compartment Below Coolant Recovery Reservoir	Fig 9.
Crankshaft Position Sensor	NAT	Rear of Engine	Fig 21.Fig 13.

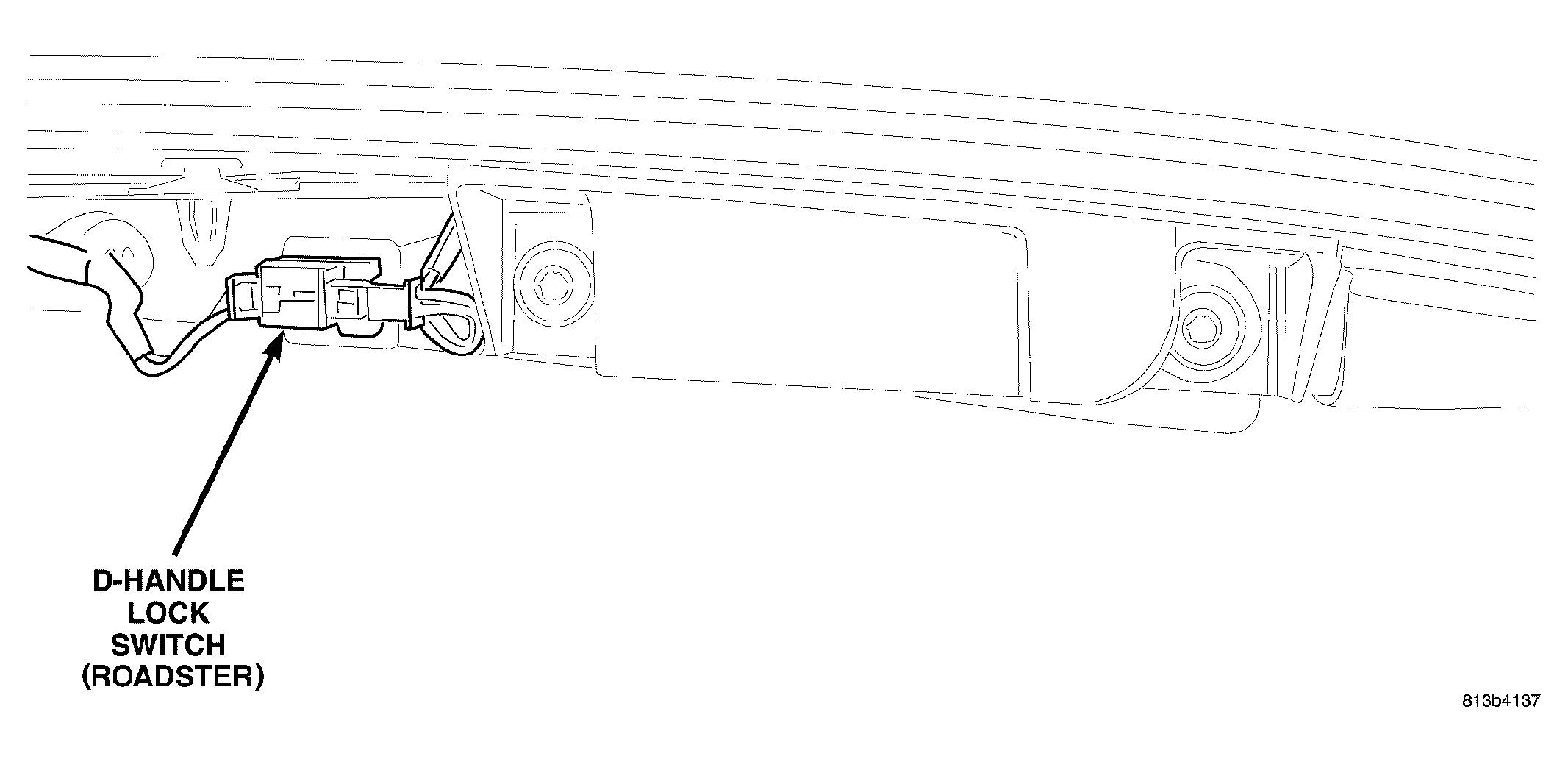

D-Handle Lock Switch (ZH27)	BK	Front Header	Fig 24.
Data Link Connector	BK	Under Driver Side Instrument Panel	N/S
Dome Lamp	BK	Top Center of Windshield	N/S
Driver Cylinder Lock Switch (Except Europe)	BK	Driver Door	N/S
Driver Power Seat/Seat Belt Switch	BK	Side of Driver Seat	N/S
Driver Seat Belt Switch	RD	Side of Driver Seat	N/S
Driver Seat Belt Tensioner Squib	YL	Driver Seat Belt Tensioner	N/S

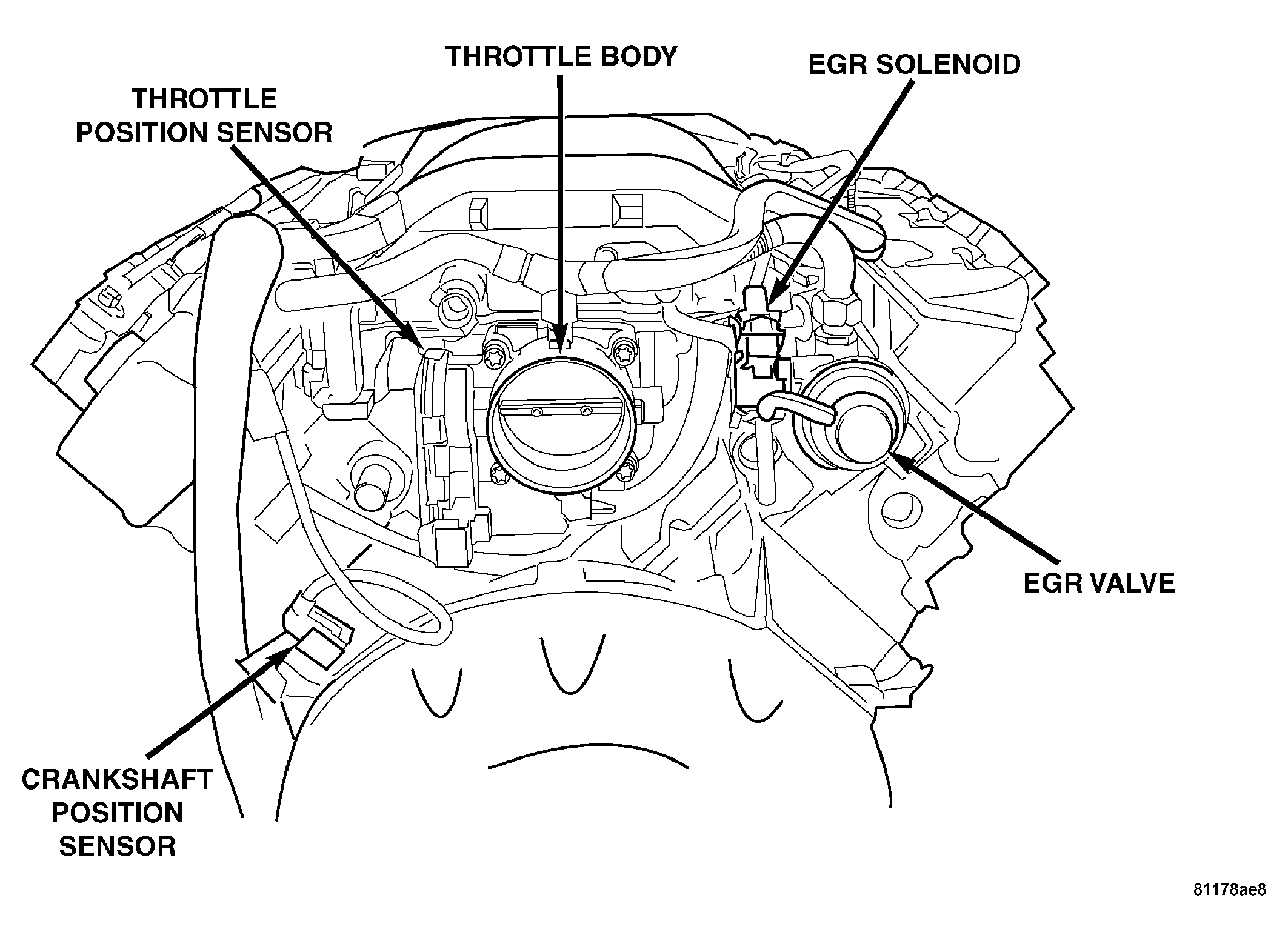

EGR Solenoid (Except SRT)	BK	Rear of engine	Fig 13.
Engine Coolant Temperature Sensor	BK	Front of Engine	Fig 12.
Engine Fuse Block Fuses	-	Right Rear of Engine Compartment in Front of Battery	Fig 8.
Engine Starter Motor	-	Right Lower Side of Engine	N/S
ESP Brake Pressure Sensor 1	BK	Left Rear of Engine Compartment	Fig 1.
ESP Brake Pressure Sensor 2 (MK20)	BK	Left Rear of Engine Compartment	Fig 1.
ESP Lateral Acceleration Sensor (MK20)	BK	Under the Center Console	Fig 7.
ESP Off Switch	BK	Center of Instrument Panel	Fig 16.

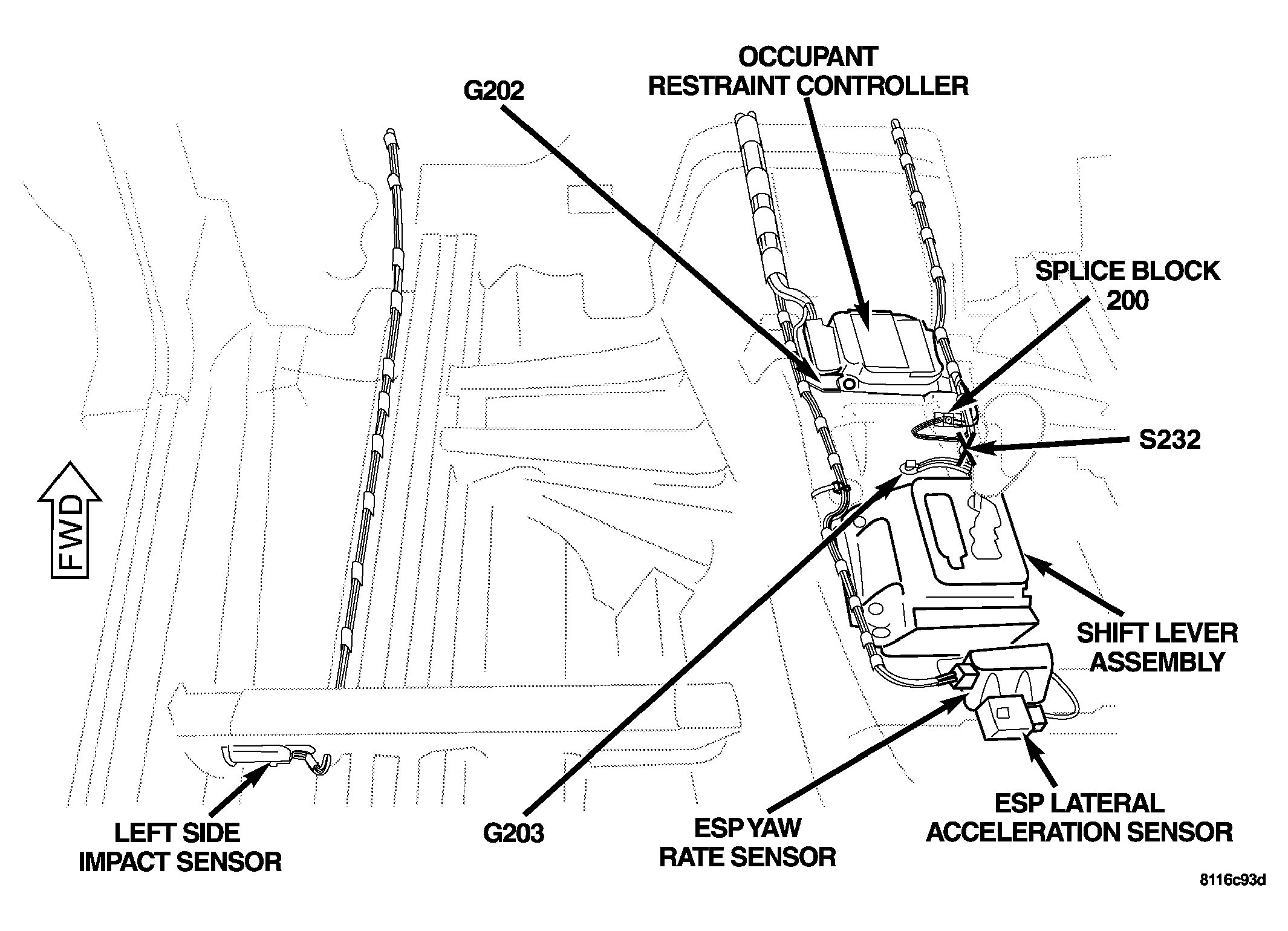

ESP Yaw Rate Sensor (MK20)	BK	Under the Center Console	Fig 7.
	ESP Yaw Rate/Lateral Acceleration Sensor (MK25)	Under the Center Console	Fig 23.
EVAP Purge Solenoid	BK	Left Side of Engine Compartment	Fig 1.
Evaporator Temperature Sensor	BK	Right Side of Driver Footwell	N/S
Fuel Injector No. 1	BK	Right Side of Intake Manifold	Fig 20.
Fuel Injector No. 2	BK	Right Side of Intake Manifold	Fig 20.
Fuel Injector No. 3	BK	Right Side of Intake Manifold	Fig 20.
Fuel Injector No. 4	BK	Left Side of Intake Manifold	Fig 11.
Fuel Injector No. 5	BK	Left Side of Intake Manifold	Fig 11.
Fuel Injector No. 6	BK	Left Side of Intake Manifold	Fig 11.
Fuel Level Sensor	BK	Top of Fuel Tank	N/S
Fuel Tank Pressure Sensor (Except Export)	BK	Top of Fuel Tank	N/S
Garage Door Opener (Europe)	BK	Rear View Mirror	NS
Generator	BK	Right Front of Engine	Fig 11.
Glove Box Lamp	WT	Passenger Side of Instrument Panel	N/S
Glove Box Switch	BK	Passenger Side of Instrument Panel	N/S

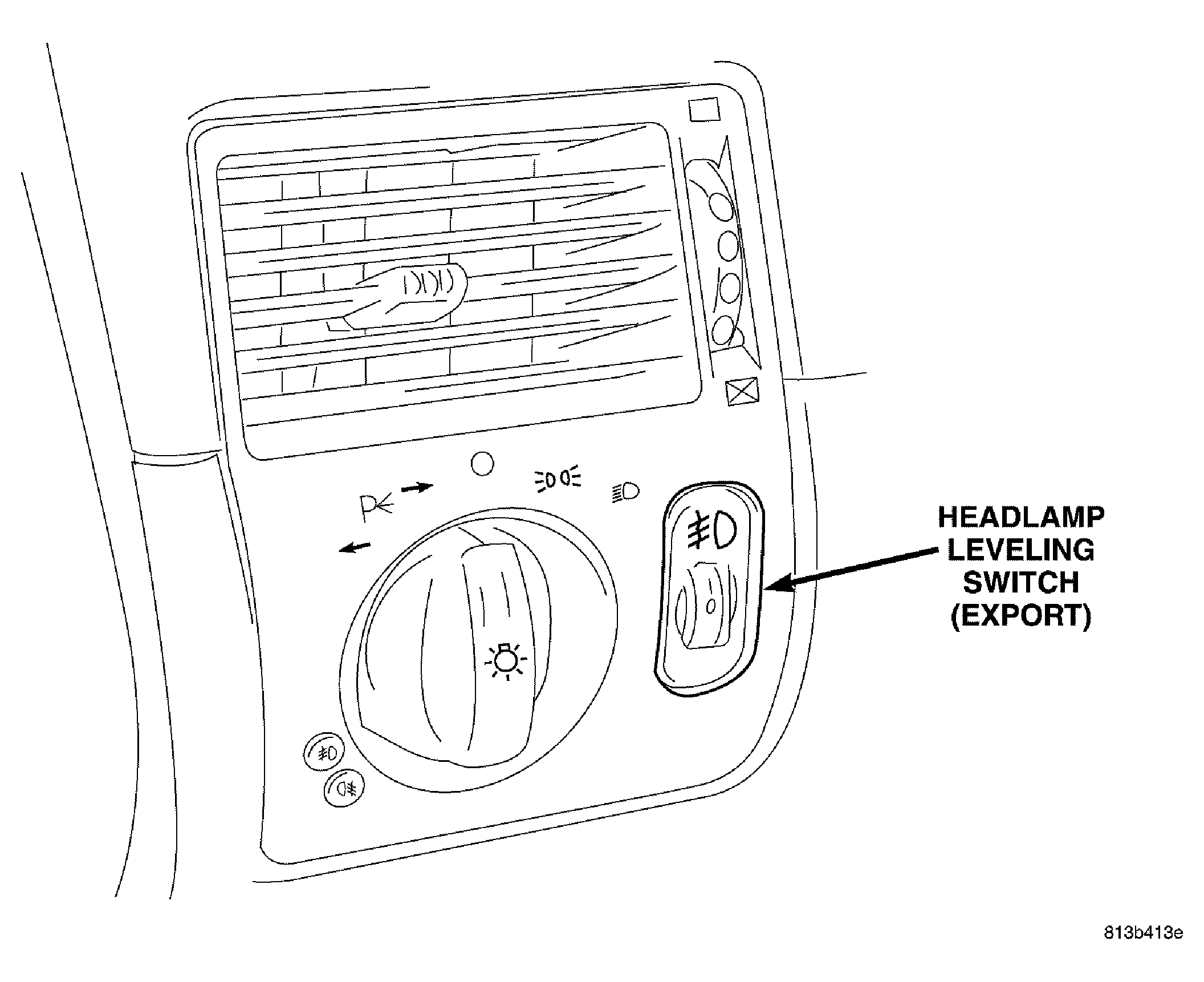

Headlamp Leveling Switch (Export)	BK	Left Side of Dash	Fig 25.
Heated Seat Module	BK	Center of Instrument Panel to the Rear of the Heated Seat Switches	N/S
Heated Washer Nozzles	BK	Under Cowl	NS
Heater Core Temperature Sensor	BK	Behind the Center of the Instrument Panel	N/S
Hood Ajar Switch	BK	Part of the Hood Latch	N/S
Ignition Switch	BK	Right of Steering Column	N/S
Illumination Control Module A	BK	Left of Steering Column	N/S
Illumination Control Module B	BK	Left of Steering Column	N/S
Illumination Control Module D	BK	Left of Steering Column	N/S
Illumination Control Module E	BK	Left of Steering Column	N/S
		Illumination Control Module Fuses	NS
Instrument Cluster C1	BK	Above Steering Column	N/S
Instrument Cluster C2	BK	Above Steering Column	N/S

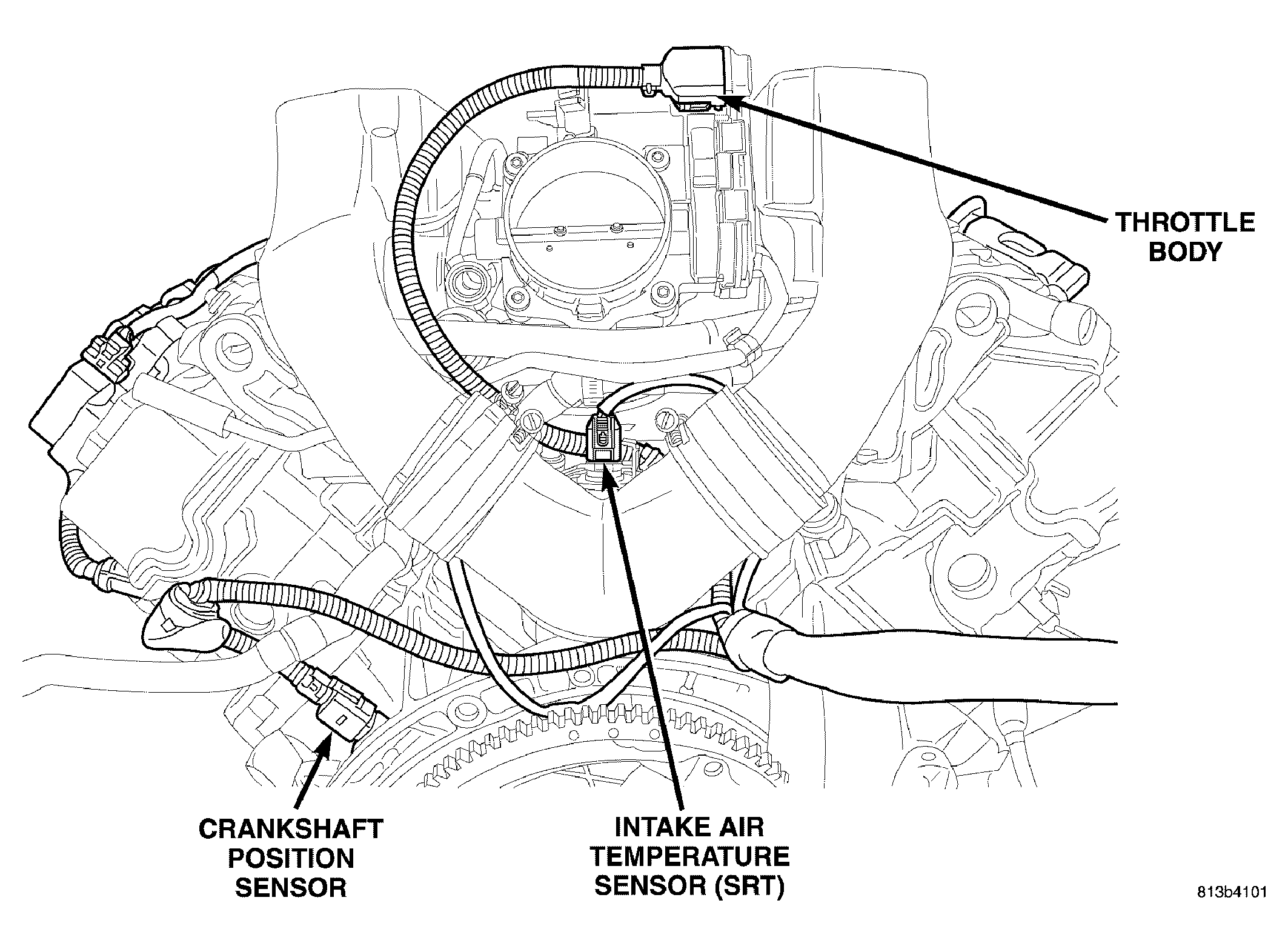

Intake Air Temperature Sensor (SRT)	BK	Rear of Engine - Top	Fig 21.
		Intrusion Sensor (Export)	NS
Key-In Ignition Switch	WT	Under Ignition Key Cylinder	N/S
Kickdown Switch	BK	Under Accelerator Pedal	N/S
Left Door Ajar Switch	WT	Rear of Left Door	N/S
Left Door Speaker	BK	Left Door	NS
Left Door Tweeter	BK	Left Door	NS
Left Fog Lamp	WT	Left Front of Fascia Below Headlamp	N/S
Left Front Lamp Assembly	BK	Left Front of Vehicle	NS
Left Front Power Window Motor	BK	Left Door	NS
	Left Front Power Window Switch	BK	NS
	Left Front Side Marker Lamp (Except Export)	Left Front Side	NS
Left Front WSS/Brake Pad Wear Sensor	BK	Left Front Brake Caliper	N/S
Left Headlamp Leveling Motor (Export)	BK	Left Front	NS
Left Heated Seat Back/Heated Seat Cushion	BK	Left Front Seat	NS
Left Knock Sensor	BK	Left Side of Engine	NS
	Left Park Lamp	Left Side	NS
Left Power Mirror	BK	Left Door	NS
Left Rear Lamp Assembly	BK	Left Rear	NS
	Left Rear Side Marker Lamp	Left Rear	NS
Left Rear Speaker	BK	Left Door	NS
Left Rear Wheel Speed Sensor	BK	Left Rear Wheel	NS
Left Side Airbag Squib	YL	Rear of Left Door	N/S
Left Side Impact Sensor	YL	Under Carpet Below Left Seat	N/S
		Left Turn Signal Lamp (Export)	NS
License Lamp No. 1	BK	Below Liftgate	N/S
License Lamp No. 2	BK	Below Liftgate	N/S
Liftgate Lock Switch	BK	Below Liftgate	N/S
MAF/IAT Sensor (Except SRT)	WT	Rear of Engine	Fig 13.
Manifold Absolute Pressure Sensor	BK	Front of Engine	Fig 12.
Multi-Function Switch	BK	Left Side of Steering Column	N/S
Occupant Restraint Controller	OR	Under the Center Console	Fig 7.
Oil Sensor	BK	Lower Right Side of Engine Oil Pan	N/S
Oxygen Sensor 1/1 Upstream	BK	Rear of Left Exhaust Manifold	N/S
Oxygen Sensor 1/2 Downstream	BK	Exhaust Pipe Rear of Catalytic Converter	N/S
Oxygen Sensor 2/1 Upstream	BK	Rear of Right Exhaust Manifold	N/S
Oxygen Sensor 2/2 Downstream	BK	Exhaust Pipe Rear of Catalytic Converter	N/S
Passenger Airbag Squib	YL	Passenger Side of Instrument Panel	N/S
Passenger Power Seat	BK	Side of Passenger Seat	N/S
Passenger Seat Belt Switch	RD	Passenger Seat Belt Tensioner	N/S
Passenger Seat Belt Tensioner Squib	YL	Passenger Seat Belt Tensioner	N/S
Passenger Seat Occupant Simulator C1	YL	Behind the Passenger Footwell	Fig 2.
Passenger Seat Occupant Simulator C2	YL	Behind the Passenger Footwell	Fig 2.
Power Amplifier A	BK	Behind the Passenger Footwell	Fig 2.
Power Amplifier B	BK	Behind the Passenger Footwell	Fig 2.
Power Mirror Switch	BK	Center Console	N/S
Power Seat Relay	BK	Left Side of Steering Column Under Instrument Panel	N/S

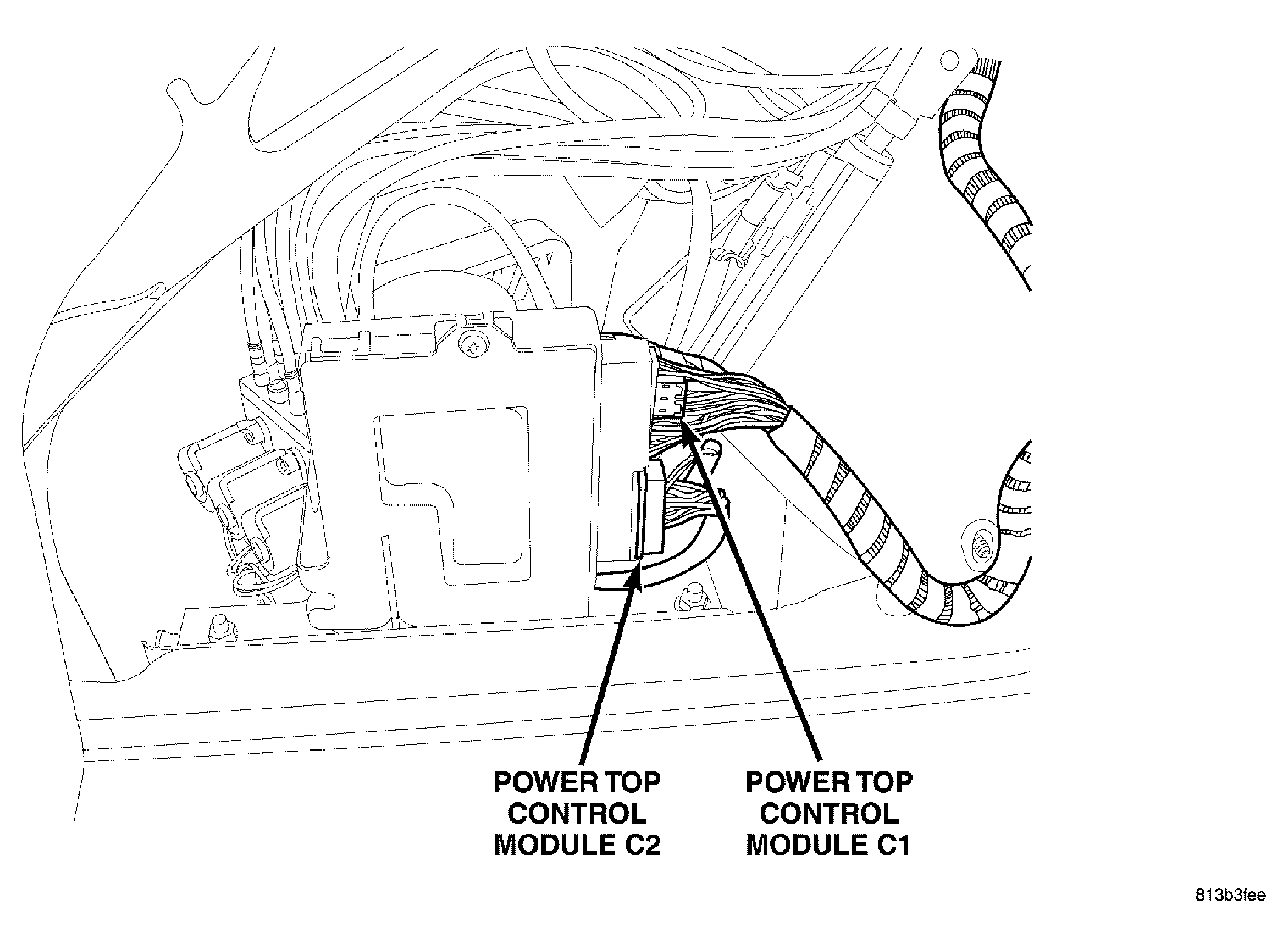

Power Top Control Module C1 (ZH27) - 28 Way	BK	Rear of Trunk	Fig 17.
Power Top Control Module C2 (ZH27) - 12 Way	BK	Rear of Trunk	Fig 17.
Power Top Hydraulic Assembly C2 (ZH27)	BK	Rear of Trunk	NS
Power Top Switch (ZH27)	BK	Dash	NS
Power Top Travel Sensors (ZH27)	BK	Rear of Trunk	NS
Powertrain Control Module C1	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Powertrain Control Module C2	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Powertrain Control Module C3	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Powertrain Control Module C4	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Powertrain Control Module C5	WT	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Pulse Module A	BK	Left Rear of Engine Compartment at Side of Underhood Accessory Fuse Block	Fig 4.
Pulse Module B	BK	Left Rear of Engine Compartment at Side of Underhood Accessory Fuse Block	NS
	Pulse Module E (SRT)	Left Rear of Engine Compartment at Side of Underhood Accessory Fuse Block	NS
Pulse Module F	GY	Left Rear of Engine Compartment at Side of Underhood Accessory Fuse Block	Fig 4.
Radiator Fan Control Module	NAT	Left Front of Engine Compartment	Fig 9.
Radiator Fan Motor	BK	Front of Engine Compartment	N/S
Radio	BK	Center of the Instrument Panel	N/S
	Radio D	BK	NS
		Rear Bow Switch (ZH27	NS
Rear Spoiler Limit Switch (Except SRT)	BK	Rear of Vehicle	NS
Rear Spoiler Motor (Except SRT)	BL	Rear of Vehicle	NS
Rear Spoiler Switch (Except SRT)	BK	Rear of Vehicle	NS
	Rear Window Defogger	Left Rear Quarter Panel	Fig 22.
Recirculated Air Switchover Valve	GY	Lower Passenger Instrument Panel	N/S
Relay Control Module A	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Relay Control Module B	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Relay Control Module C	BK	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Relay Control Module D	GY	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
Relay Control Module E	GY	In Control Module Box at Right Rear of Engine Compartment	Fig 8.
		Relay Control Module Fuses	NS
Remote Keyless Entry Relay	BK	Left Rear of Engine Compartment at Rear of Underhood Accessory Fuse Block	Fig 4.
Right Door Ajar Switch	WT	Rear of Right Door	N/S
Right Door Speaker	BK	Right Door	Fig 6.
Right Door Tweeter	BK	Right Door	Fig 6.
Right Fog Lamp	NAT	Right Front of Fascia Below Headlamp	N/S
Right Front Lamp Assembly	BK	Right Front	NS
Right Front Power Window Motor	BK	Right Front	Fig 6.
	Right Front Power Window Switch	BK	NS
Right Front Side Marker Lamp (Except Export)	BK	Right Front Side	NS
Right Front WSS/Brake Pad Wear Sensor	BK	Right Front Brake Caliper	N/S
Right Headlamp Leveling Motor (Export)	BK	Right Front	NS
Right Heated Back/Heated Seat Cushion	BK	Right Seat Cushion	N/S
Right Knock Sensor	BK	Under Intake Manifold	N/S
Right Park Lamp	BK	Right Corner of Lamp Assembly	N/S
Right Power Mirror	BK	Top Front of Right Door	Fig 6.
Right Rear Lamp Assembly	BK	Right Rear of Vehicle	Fig 3.
Right Rear Side Marker Lamp	BK	Right Corner of Rear Fascia	Fig 3.
Right Rear Speaker	BK	In Back of Right Seat	N/S
Right Rear Wheel Speed Sensor	BK	Right Brake Backing Plate	N/S
Right Side Airbag Squib	YL	Rear of Right Door	Fig 5.
Right Side Impact Sensor	YL	Under Carpet Below Right Seat	N/S
		Right Turn Signal Lamp (Export)	NS
	Roof Open Switch (ZH27)	BK	NS
Sentry Key Antenna Ring	BK	On Ignition Key Cylinder	N/S
Sentry Key Remote Entry Module C1	BK	Behind Instrument Cluster	N/S
Sentry Key Remote Entry Module C2	WT	Behind Instrument Cluster	N/S
Sentry Key Remote Entry Module C3	BK	Behind Instrument Cluster	N/S
Shift Lever Assembly	BK	Center Console	Fig 7.
Short Runner Valve Solenoid (Except SRT)	BK	Front of Engine	N/S
Siren	BK	Base of Windshield Under Cowl Grille	N/S
Speed Control Switch	BN	Left Side of Steering Column	N/S
Steering Angle Sensor	BK	Left Side of Steering Column	N/S
Supercharger Clutch (SRT)	BK	Front of Engine	Fig 20.
Throttle Body	BK	Rear of Engine	Fig 21.

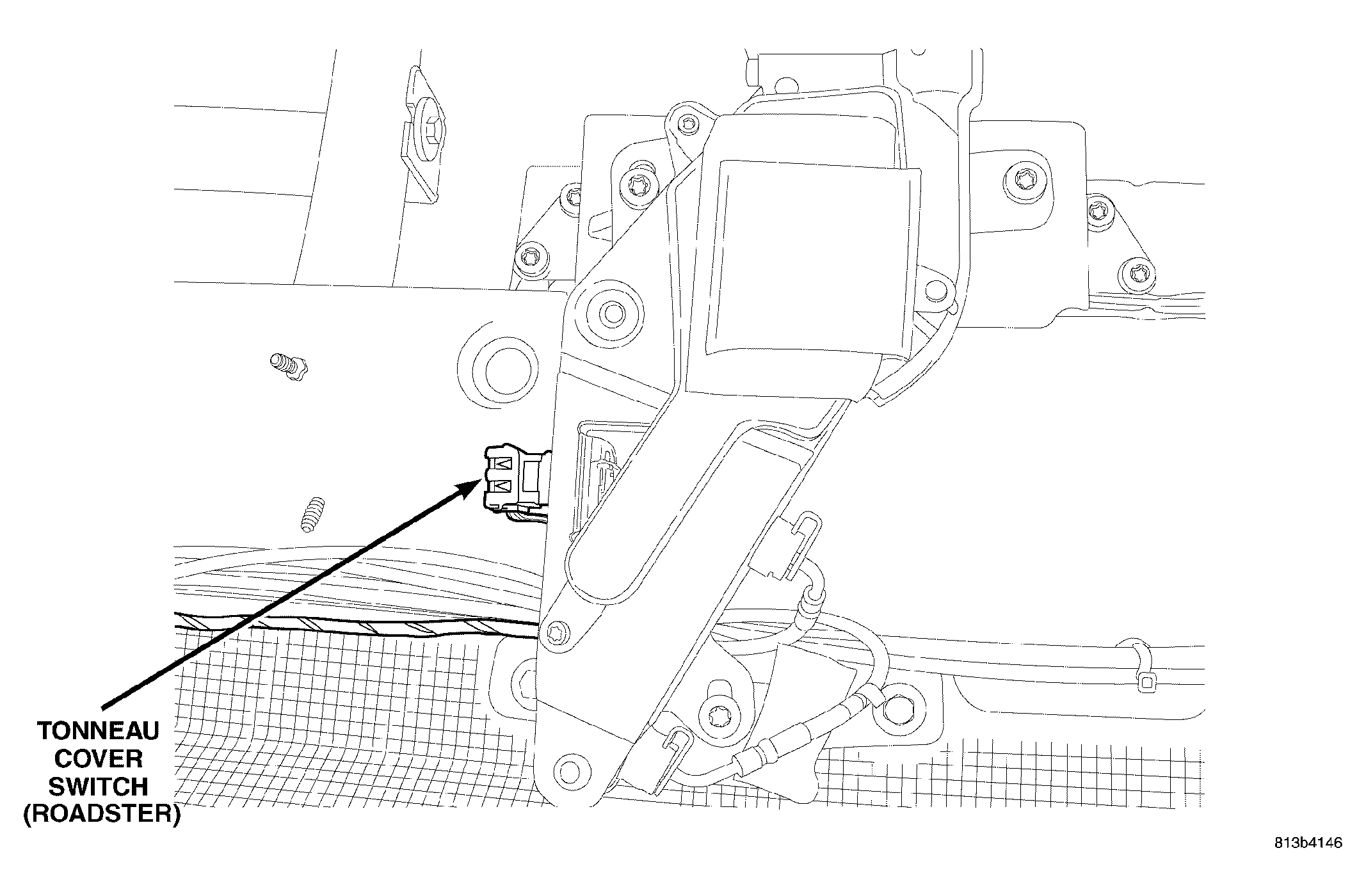

	Tonneau Cover Switch (ZH27)	Behind Rear Seat (Trunk)	Fig 26.

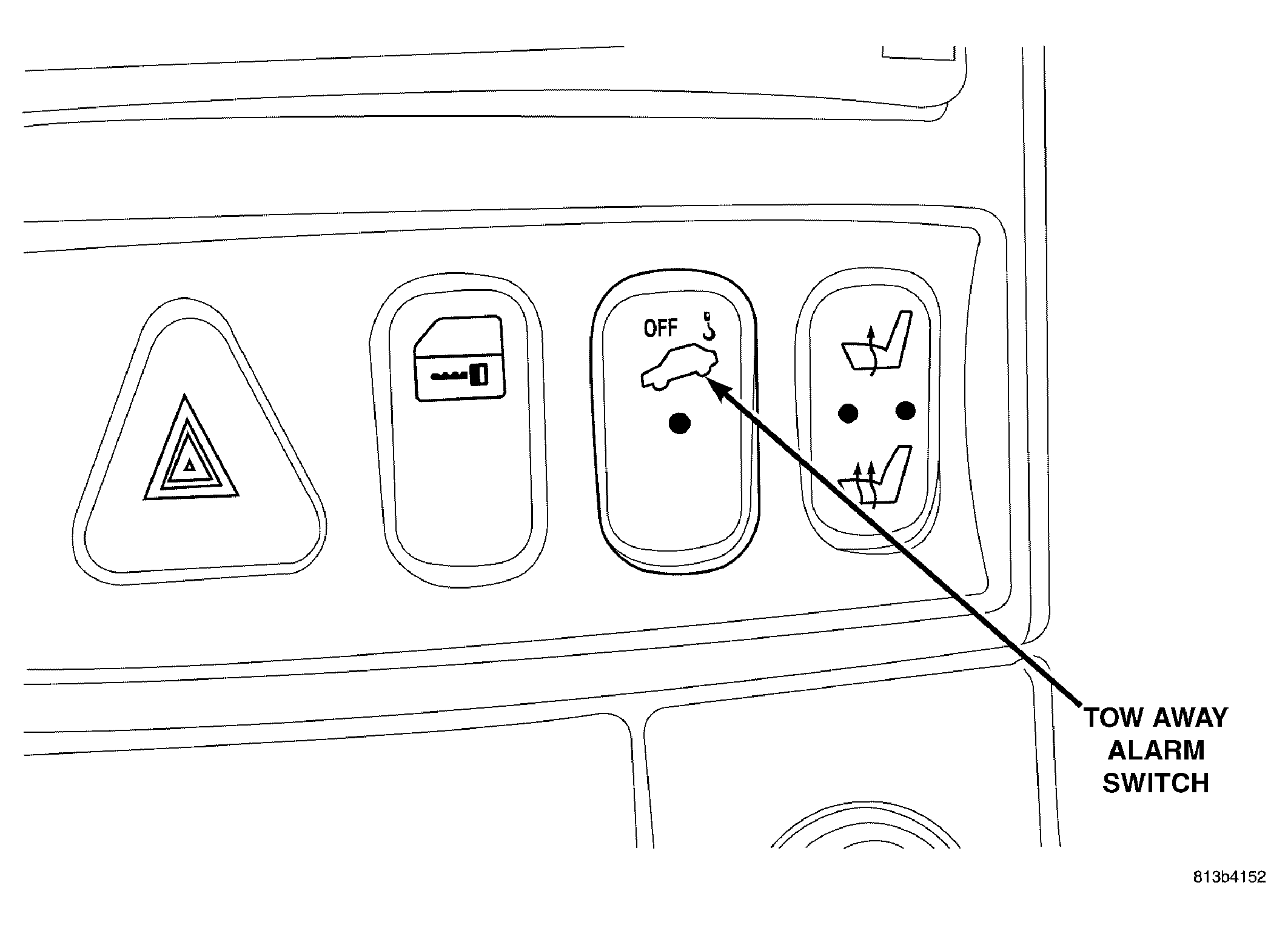

Tow-away Alarm Switch	BK	Center Panel	Fig 27.
Transmission Control Module C1	BK	Behind the Passenger Footwell	Fig 2.
Transmission Control Module C2	BK	Behind the Passenger Footwell	Fig 2.
Transmission Control Module C3	BK	Behind the Passenger Footwell	Fig 2.

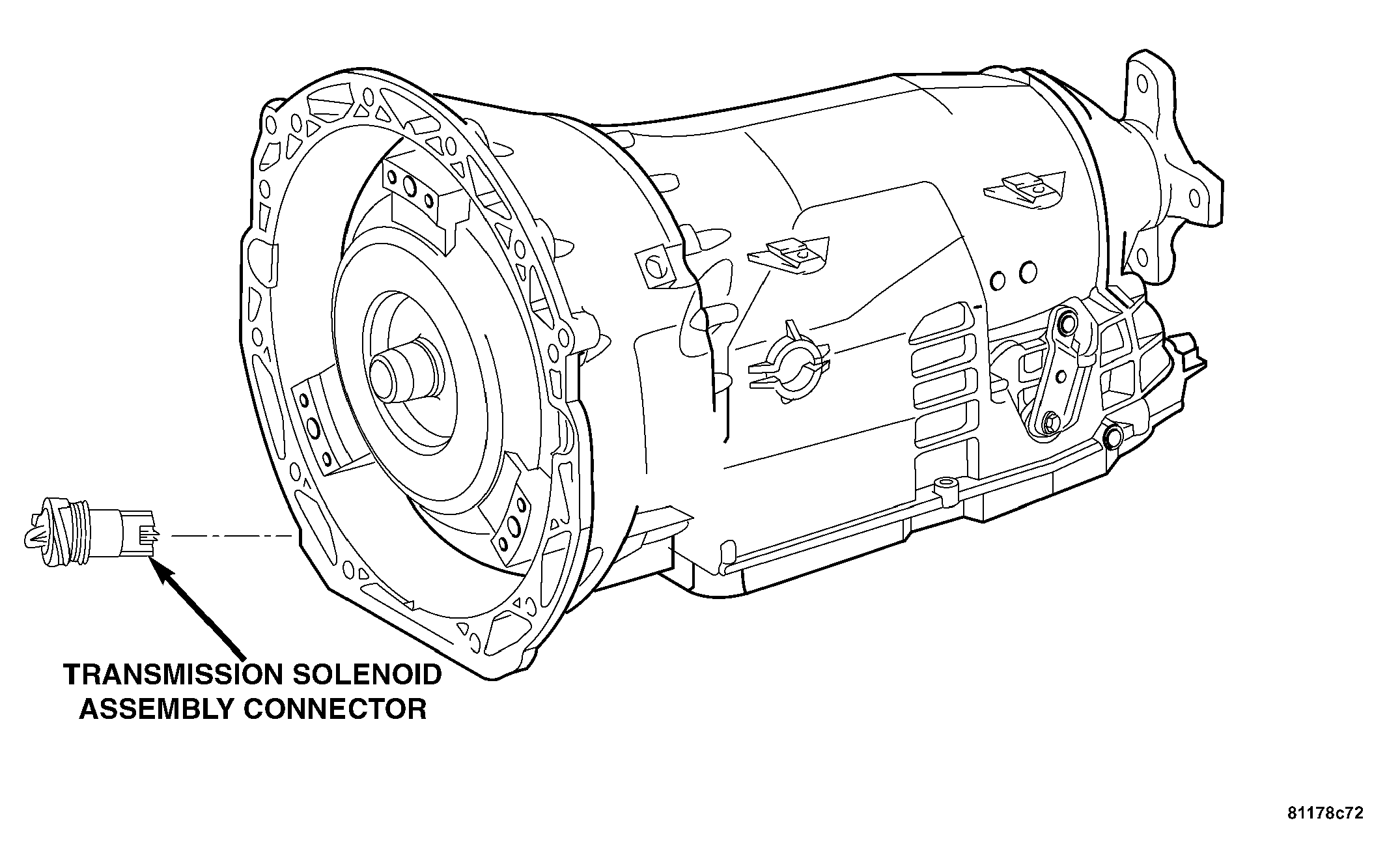

Transmission Solenoid Assembly	BK	Bottom of Automatic Transmission	N/S

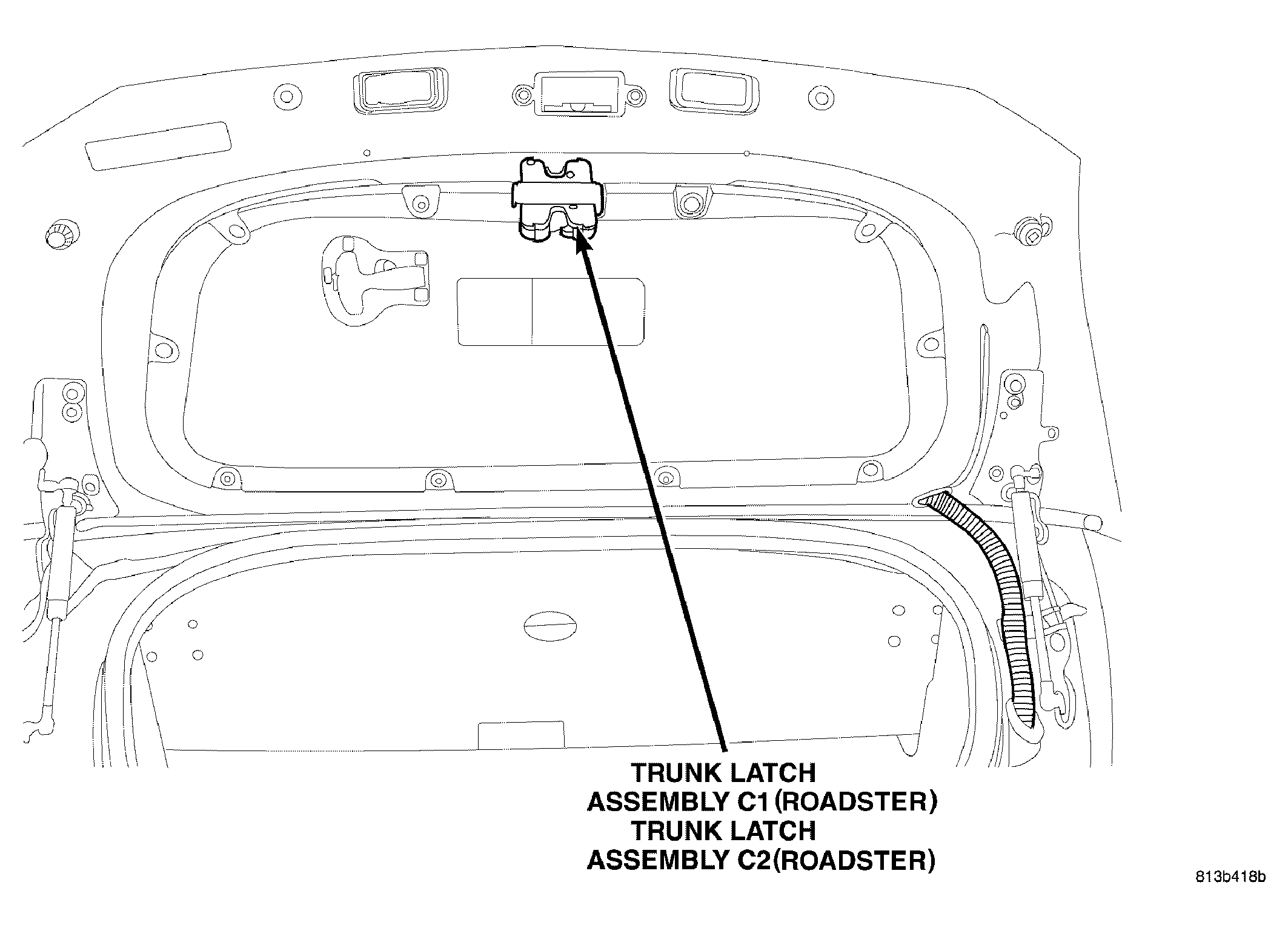

		Trunk Latch Assembly C1 (ZH27)	Fig 28.
	Truck Latch Assembly C2 (ZH27)	BK	Fig 28.NS
Underhood Accessory Fuse Block Fuses	-	Left Rear of Engine Compartment	Fig 1.
Universal Garage Door Opener/Tire Pressure Monitor	WT	Top Center of Windshield	NS
Washer Fluid Level Switch	BK	Behind Right Front Wheelwell Splash Shield	N/S
	Washer Pump Motor	BK	NS

GROUND	LOCATION	FIG.
G100	Left Side of Engine Compartment	Fig 9.
G101	Right Side of Engine Compartment	Fig 8.
G104	Top Front of Engine	N/S
G107	Right Side of Engine Compartment, Battery Negative Ground	Fig 8.
G200	Behind Left Side of Instrument Panel at Base of Windshield	N/S

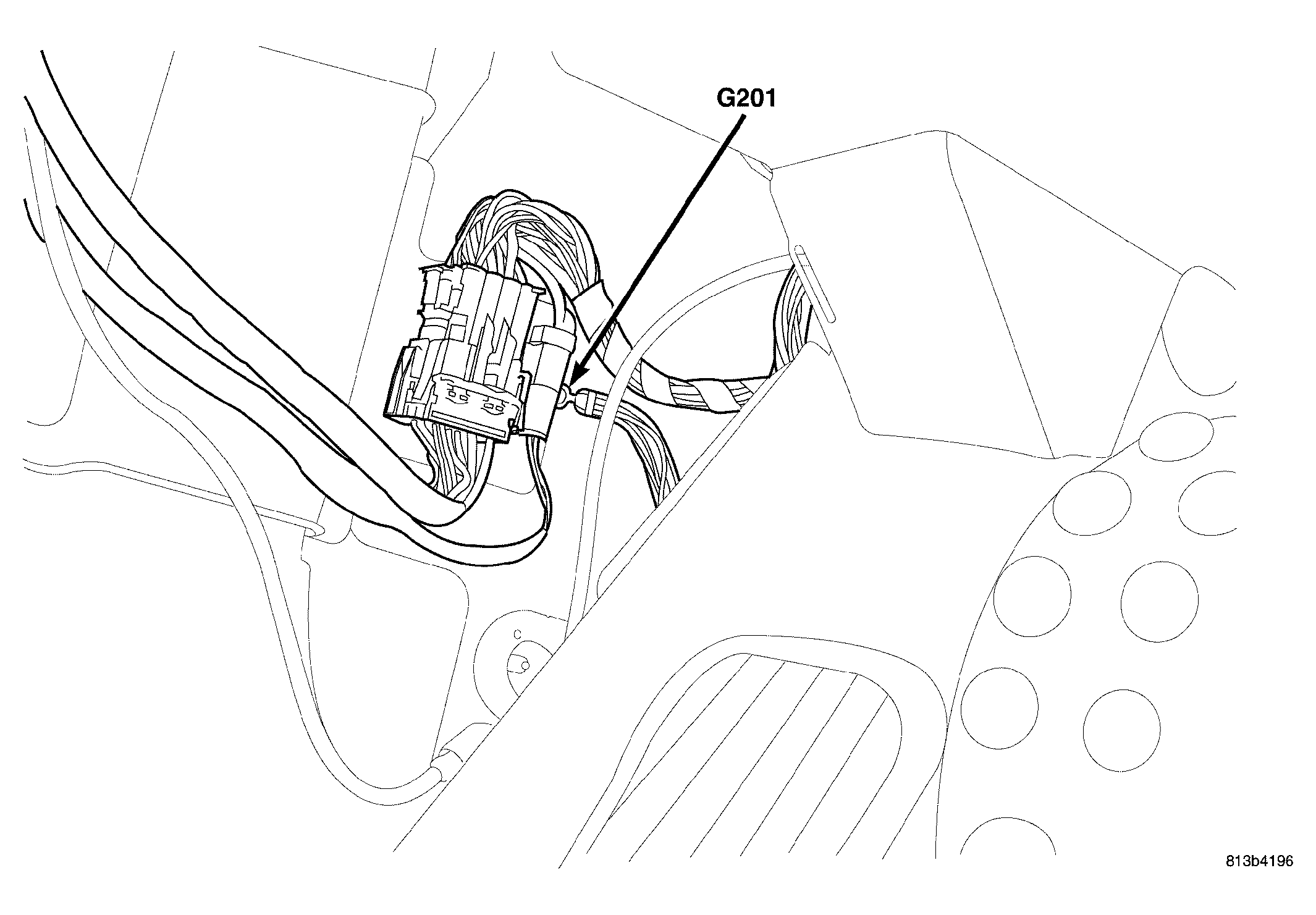

G201	Lower Left Footwell Behind Kickpanel	Fig 29.
G202	Under the Center Console at the Occupant Restraint Controller	Fig 7.
G203	Under the Center Console	Fig 7.
G204	Lower Right Footwell Behind Kickpanel	Fig 6.

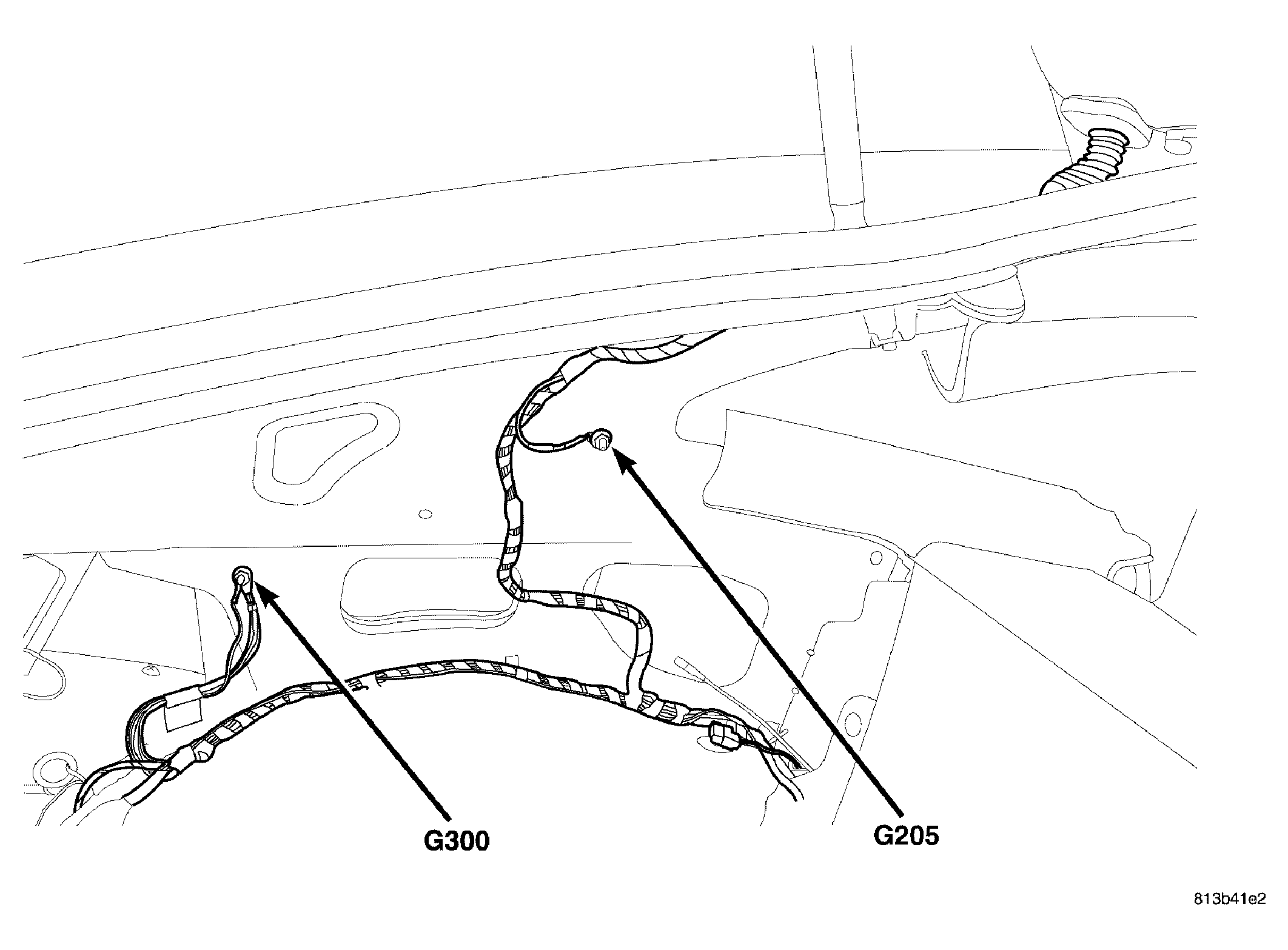

G205	Upper Left Rear Passenger Compartment	Fig 30.
G206	Lower Right Footwell Behind Kickpanel	Fig 6.
G300	Left Luggage Compartment Behind Trim Panel	Fig 30.
G301	Lower Right Luggage Compartment Behind Trim Panel	Fig 3.
G302	Upper Liftgate	Fig 22.

SPLICE	LOCATION	FIG.
S101	Engine Compartment on Top Left of Intake Manifold	N/S
S103	Right Rear of Engine Compartment in the Control Module Box	Fig 10.
S104	Engine Compartment on Top Left of Intake Manifold	N/S
S105	Engine Compartment at the Front of Intake Manifold	N/S
S106	Engine Compartment Behind the Engine	N/S
S107	Engine Compartment on Top Left of Intake Manifold	N/S
S108	Engine Compartment Behind the Engine	N/S
S113	Engine Compartment Behind the Engine	N/S
S114	Right Rear of Engine Compartment in the Control Module Box	Fig 10.
S116	Left of Steering Column Behind the Instrument Panel	N/S
S117	Left of Steering Column Behind the Instrument Panel	N/S
S118	Right Rear of Engine Compartment in the Control Module Box	Fig 10.
S119	Right Rear of Engine Compartment in the Control Module Box	Fig 10.
S121	Engine Compartment at the Front of Intake Manifold	N/S
S122	Engine Compartment Behind the Engine	N/S
S123	Engine Compartment Behind the Engine	N/S
S124 (A/T)	Engine Compartment Behind the Engine	N/S
S125 (A/T)	Engine Compartment Behind the Engine	N/S
S211	Behind the Instrument Cluster	N/S
S212	Behind the Instrument Cluster	N/S
S213	Behind the Instrument Cluster	N/S
S215	Behind the Upper Instrument Panel	N/S
S216	Behind the Upper Instrument Panel	N/S
S217	Behind the Upper Instrument Panel	N/S
S218	At the End of the Sentry Key Remote Entry Module (SKREEM) Antenna	N/S
S219	Behind the Lower Instrument Panel	N/S
S220	Behind the Lower Instrument Panel	N/S
S221	Behind the Lower Instrument Panel	N/S
S224	Behind the Lower Instrument Panel	N/S
S225	Behind Passenger Footwell	N/S
S226	Behind Passenger Footwell	N/S
S232	Under the Center Console	Fig 7.
S233	Lower Passenger Side Behind Kickpanel	N/S
S235	Behind Passenger Footwell	N/S
S236	Behind Passenger Footwell	N/S
S239	Behind Passenger Footwell	N/S
S240	Behind the Lower Instrument Panel	N/S
S241	Part of the Left Seat Assembly	N/S
S242	Part of the Left Seat Assembly	N/S
S243	Part of the Right Seat Assembly	N/S
S244	Part of the Right Seat Assembly	N/S
S246 (M/T)	Behind Passenger Footwell	N/S
S305	Right Rear Passenger Compartment Behind Headliner	N/S
Splice Block 100	Left Rear of Engine Compartment Behind the Underhood Accessory Fuse Block	Fig 5.
Splice Block 101	Left Rear of Engine Compartment Behind the Underhood Accessory Fuse Block	Fig 5.
Splice Block 102	Left Rear of Engine Compartment Behind the Underhood Accessory Fuse Block	Fig 5.
Splice Block 200	Under the Center Console	Fig 7.
