Brake Fluid Level Sensor: Removal
CAUTION:
Do not spill brake fluid on any painted surfaces. Brake fluid can damage painted surfaces.
NOTE:
The brake fluid level sensor cannot be replaced by itself. You must replace the fluid reservoir.
- Disconnect the brake fluid level sensor harness connector.

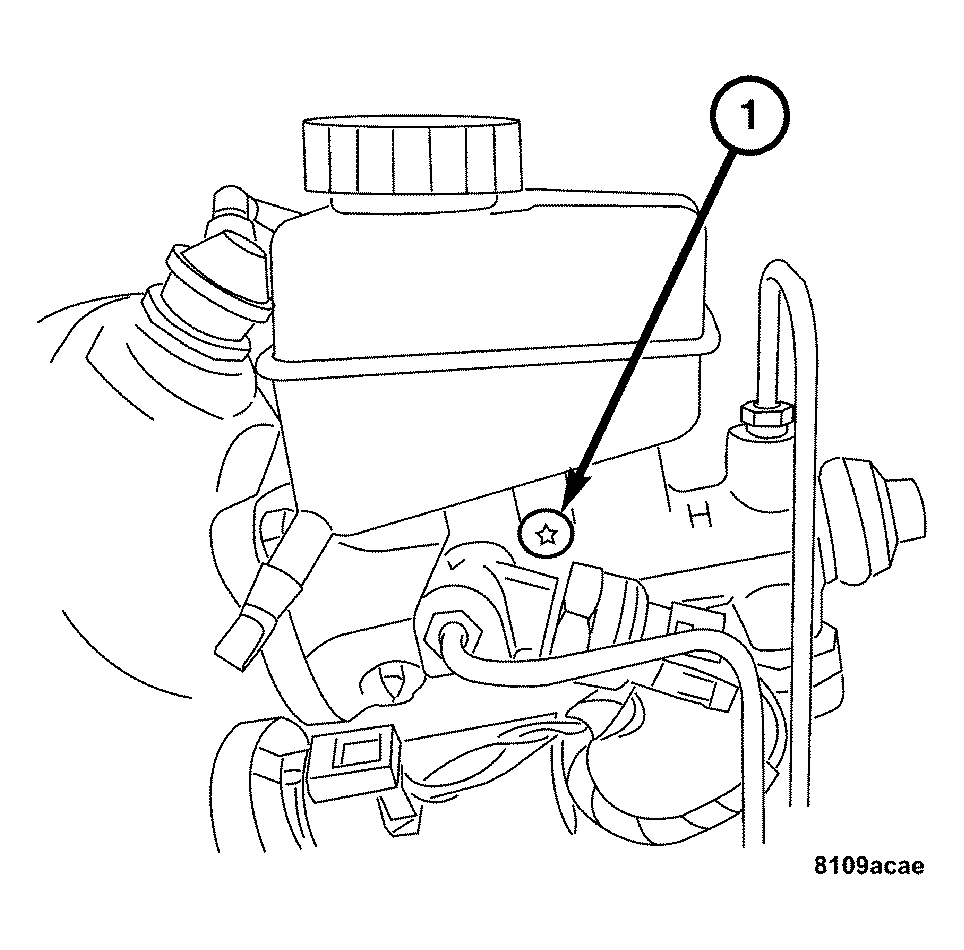

- Remove the screw attaching the fluid reservoir to the master cylinder.
- Remove the fluid reservoir from the master cylinder.
