Quarter Window: Removal

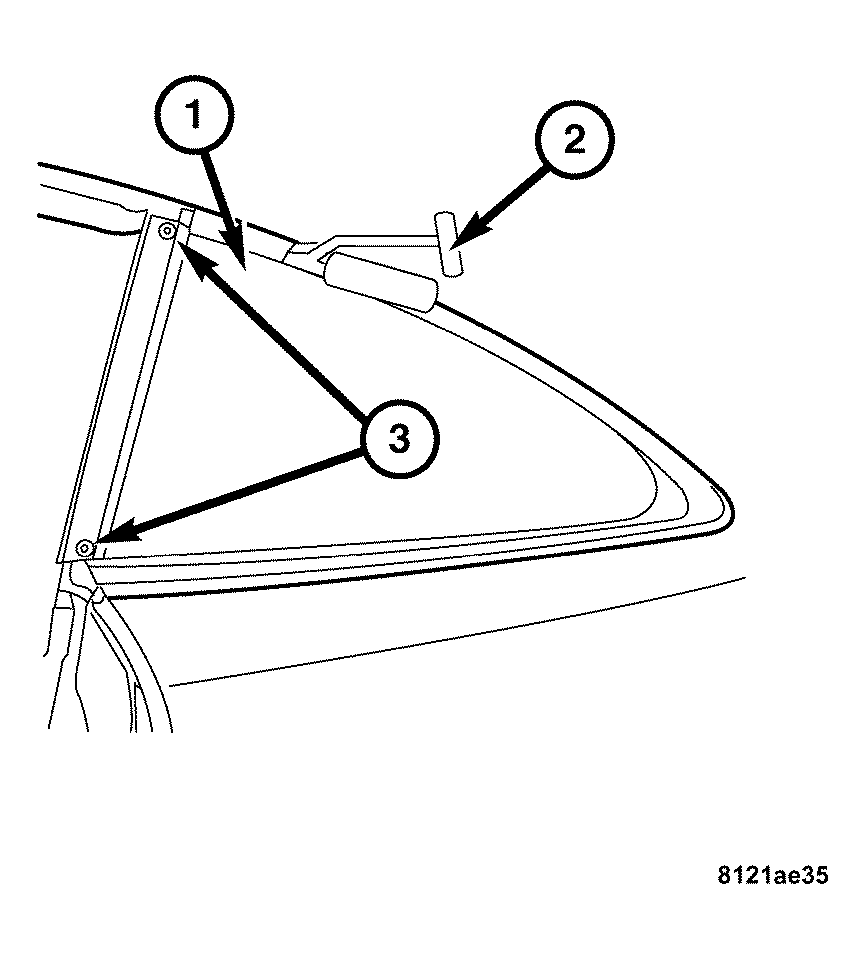

Fig 1: Removing Quarter Window

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: WEAR EYE AND HAND PROTECTION WHEN HANDLING GLASS. PERSONAL INJURY CAN RESULT.

Cut urethane bonding from around quarter window glass (1) using a suitable sharp cold knife (2). A pneumatic cutting device can be used if available.
CAUTION: Do not damage body or trim finish when cutting out glass or applying fence primer.
Drill and remove quarter glass retaining rivets (3).
Separate glass (1) from vehicle.
