Release Handle: Removal

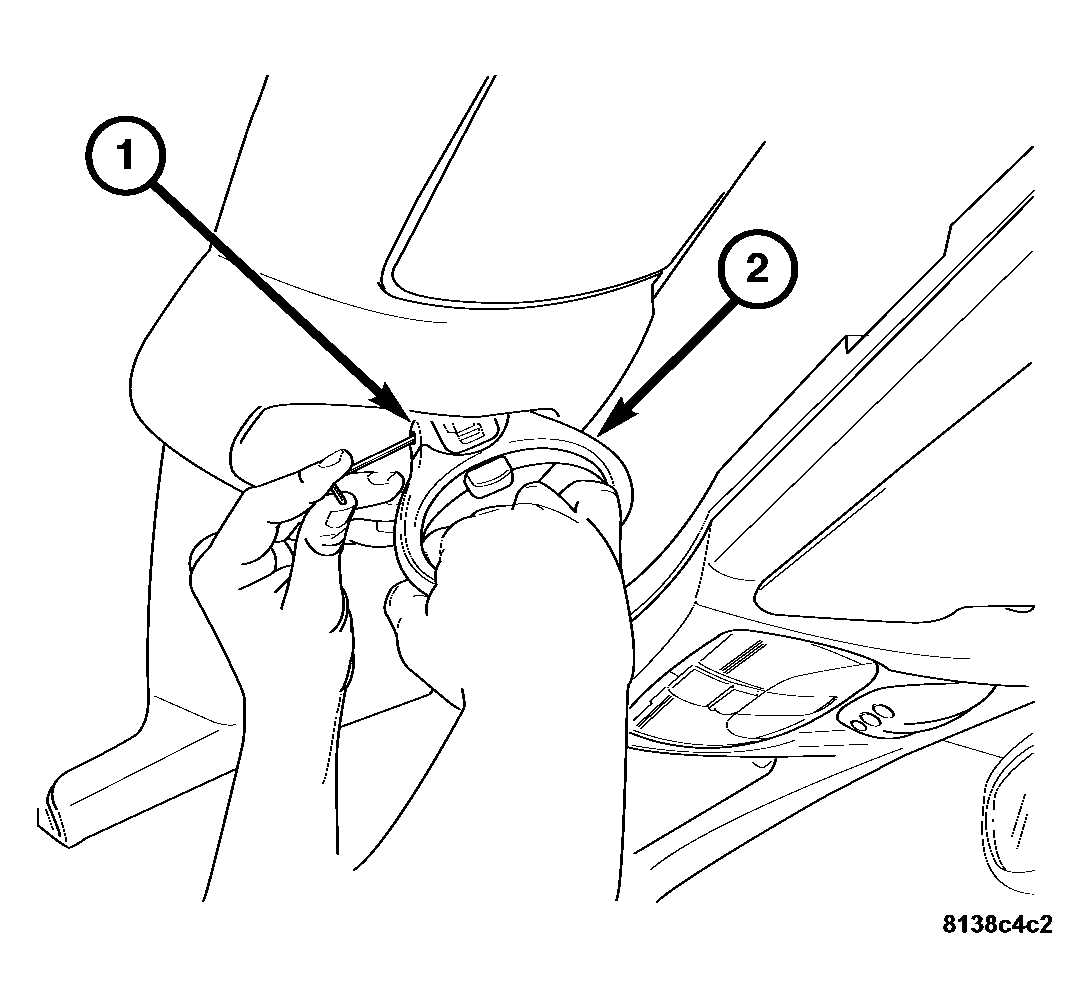

Fig 1: Removing/Installing Release Handle
GC0033440Courtesy of DAIMLERCHRYSLER CORP.
  1. Rotate release handle clockwise (2) to gain access to the set screw (1).
  2. Remove the release handle set screw.
  3. Rotate the release handle back to its normal position and remove the release handle.
