Hydraulic Lines: Operation

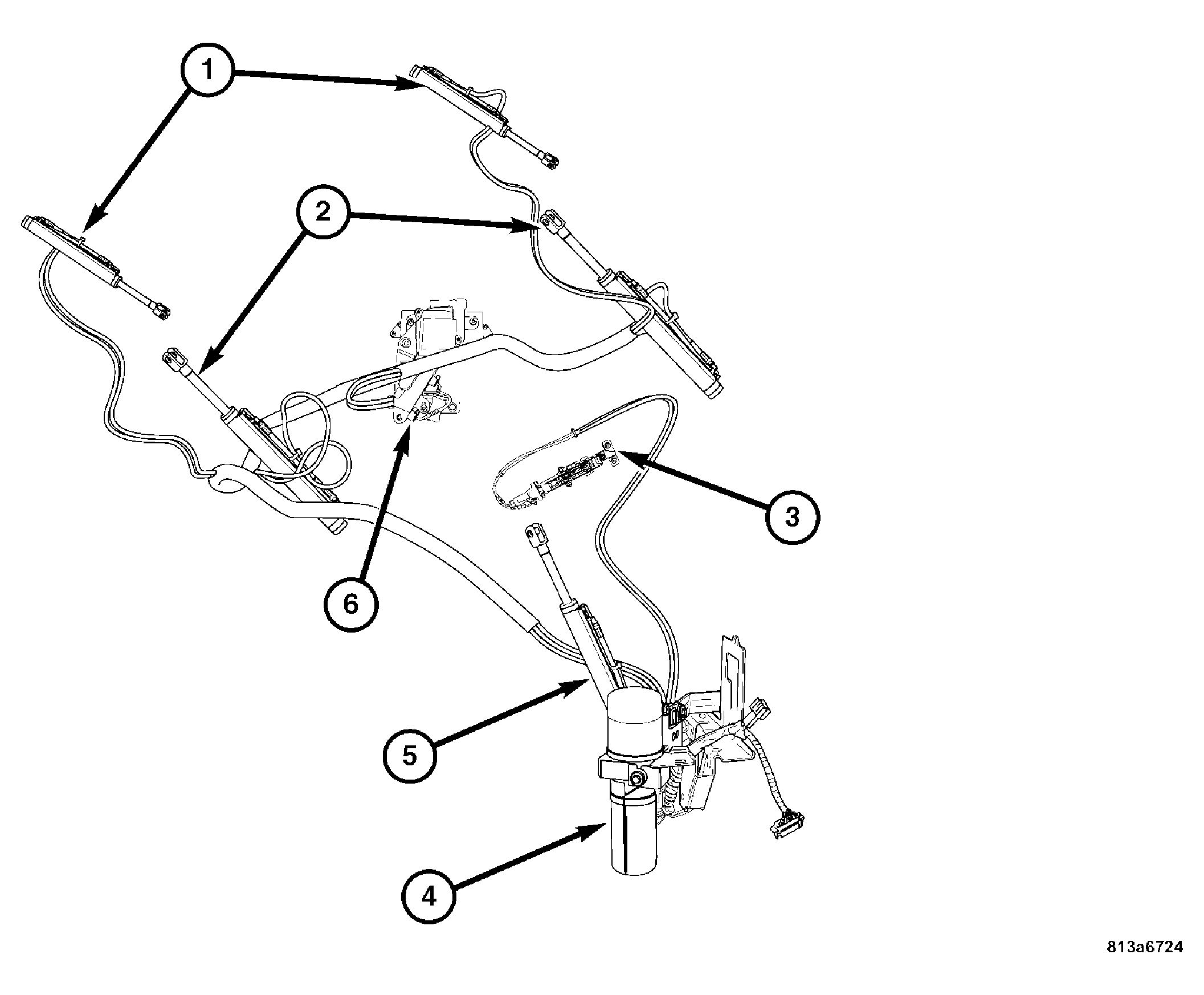

Fig 1: Identifying Rear Bow Cylinders, Main Bow Cylinders, Rear Bow Latch, Power Top Hydraulic Assembly, Tonneau Cover Cylinder & Tonneau Cover Latch
There are 14 Hydraulic Lines that are attached to the Power Top Hydraulic Assembly (4). The lines connect to a variety of cylinders and latches on the Convertible Top. The Main Bow Cylinders (2), Rear Bow Cylinders (1), Tonneau Cover Cylinder (5), Tonneau Cover Latch (6), and the Rear Bow Latch (3). Each hydraulic cylinder has two hydraulic lines, one at the base side to raise the cylinder and one at the rod side to lower the cylinder.
