Hydraulic Lines: Description

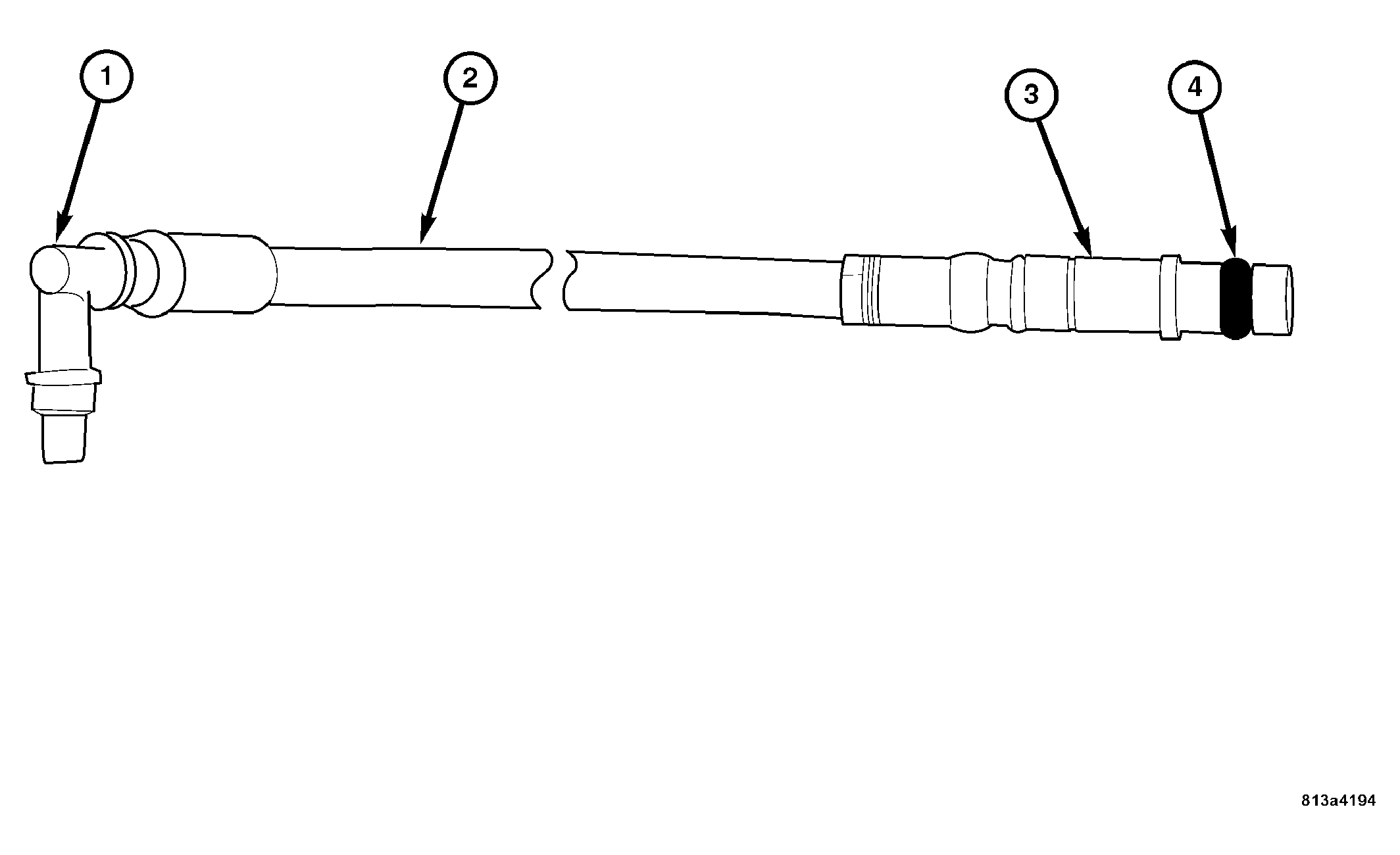

The Hydraulic Lines used for the Convertible Top are flexible multi-layered high pressure lines. The lines are designed to carry hydraulic oil to and from the hydraulic cylinders. The cylinder side of the hydraulic line is a 90° elbow coupler (1), and the pump side of the hydraulic line is a straight coupler (3). The hydraulic lines are identified by a number printed on the outer casing of the line. Each line is numbered, and must always be placed in the proper cavity in the line retainer plate. When replacing the convertible top hydraulic lines, always replace as a set.
