Schematics And Diagrams

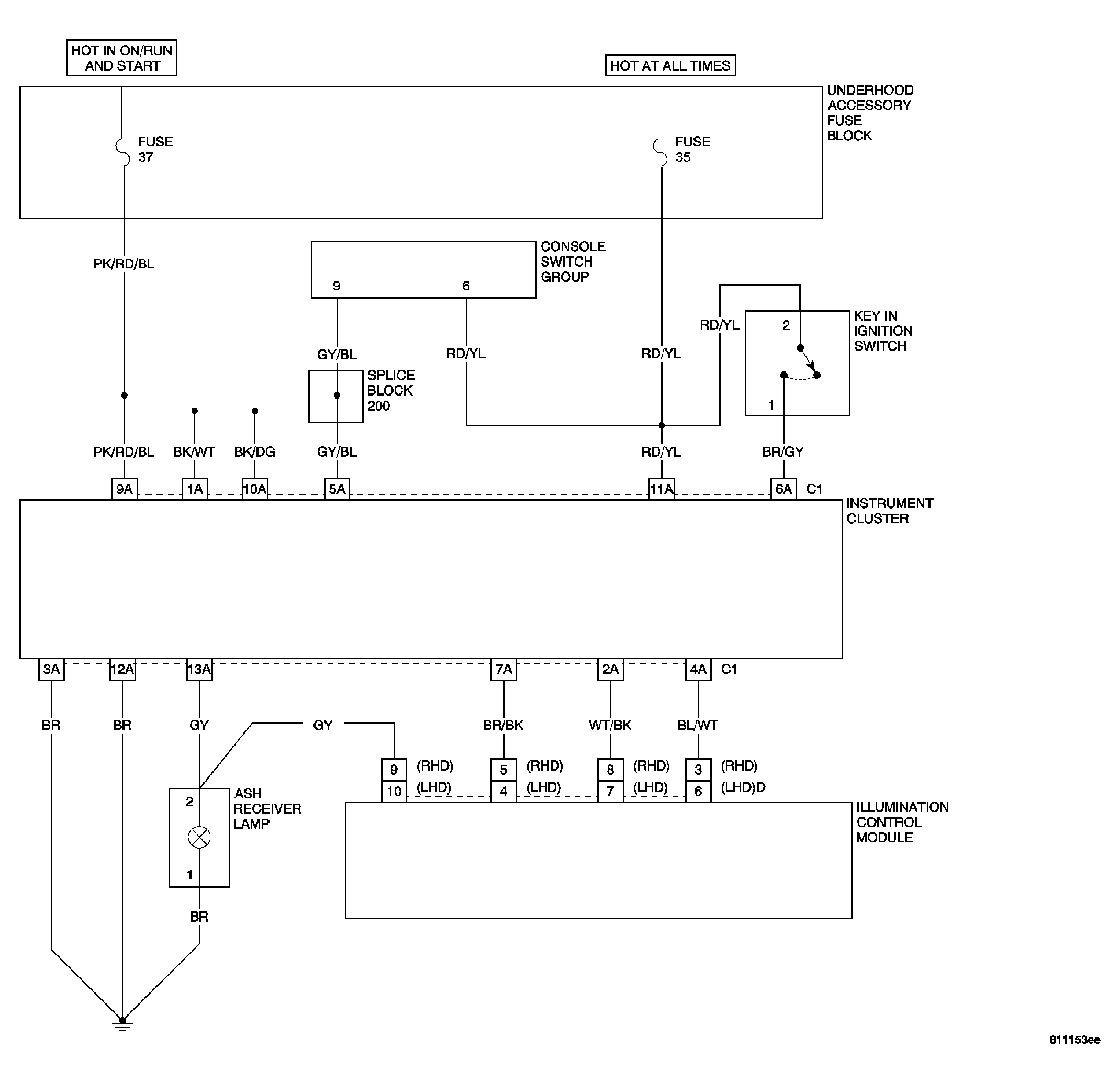

Fig 1: INSTRUMENT CLUSTER CIRCUIT DIAGRAM (1 OF 2)

GC0035109

Courtesy of DAIMLERCHRYSLER CORP.

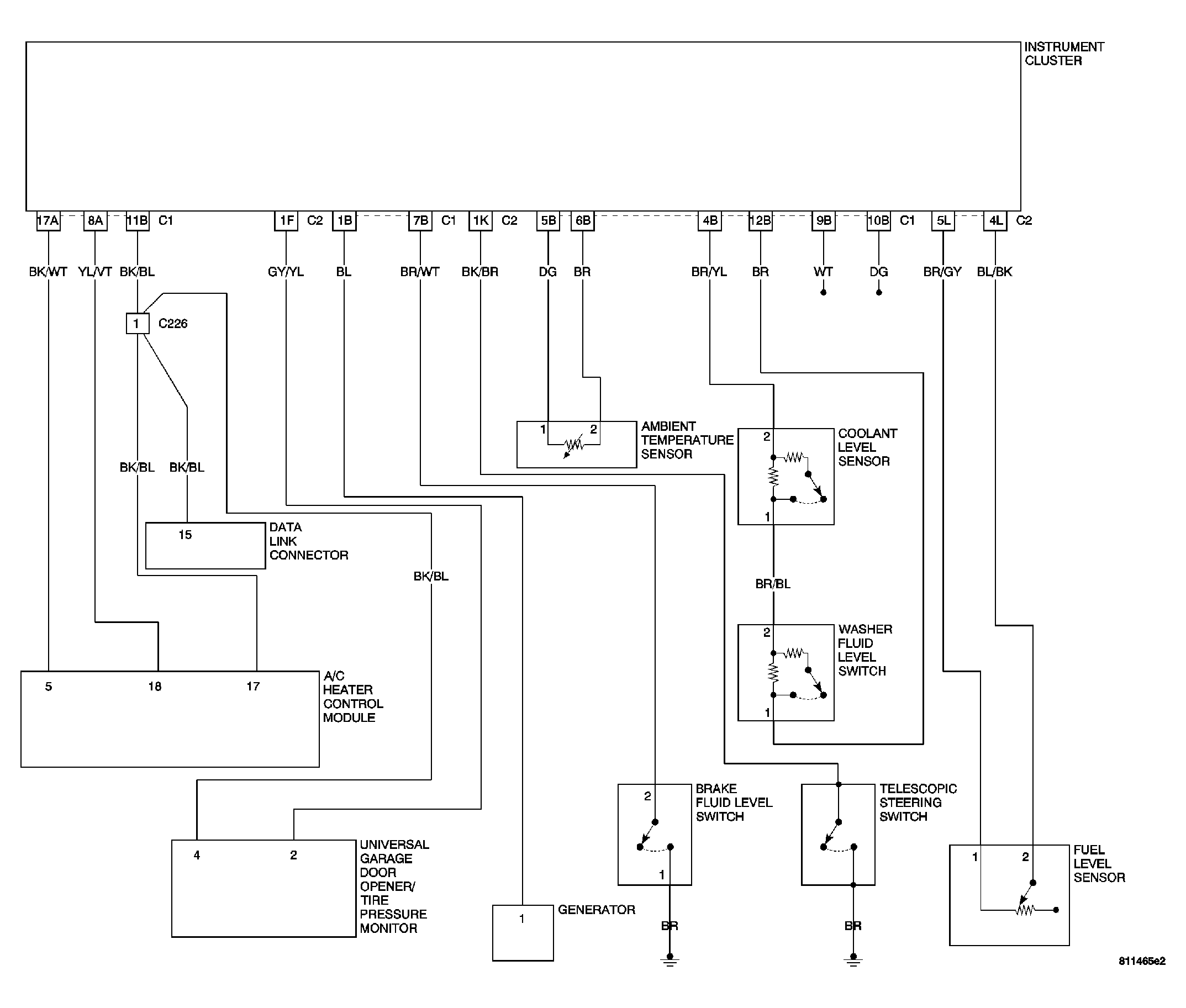

Fig 2: INSTRUMENT CLUSTER CIRCUIT DIAGRAM (2 OF 3)

GC0035110

Courtesy of DAIMLERCHRYSLER CORP.

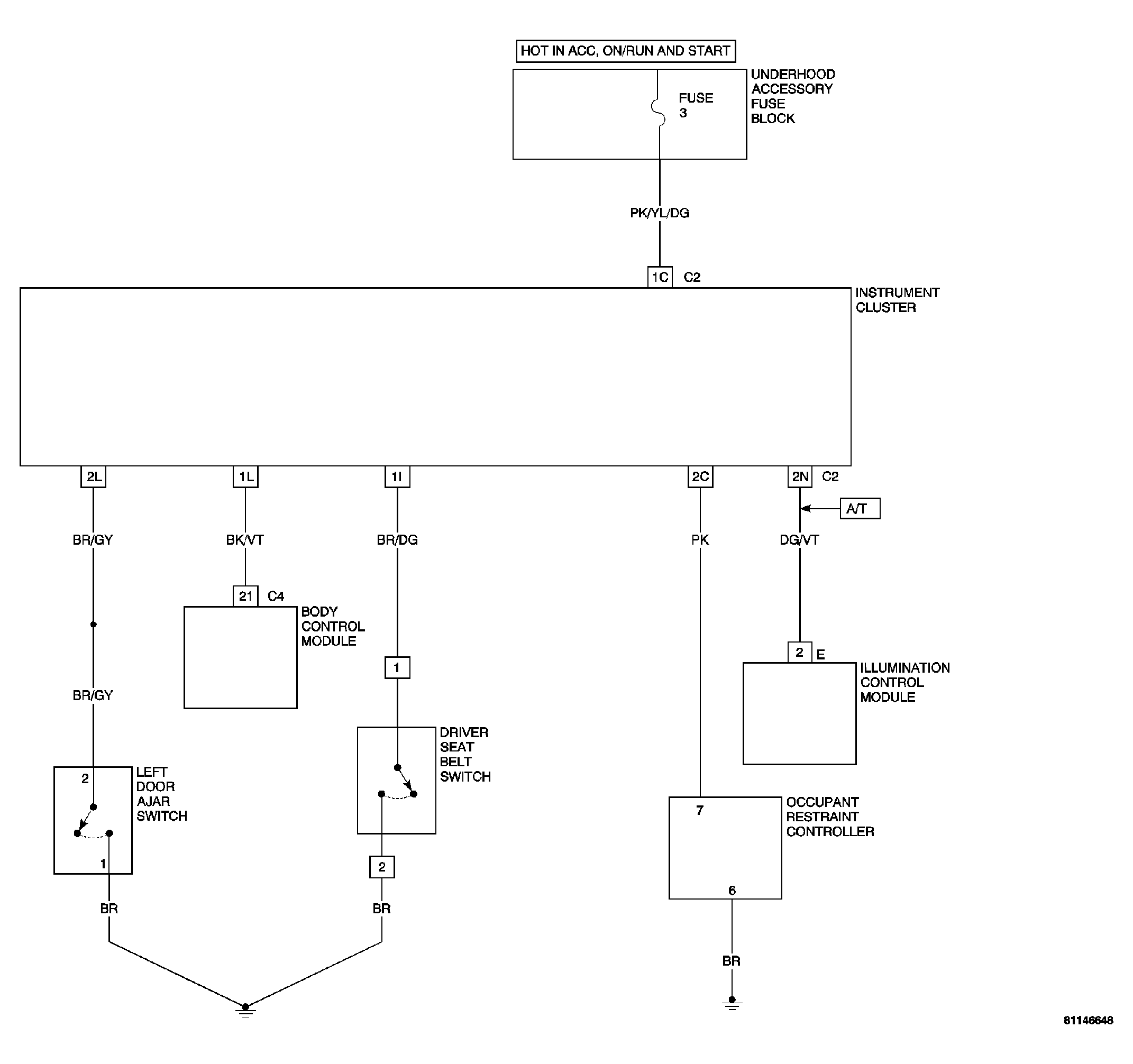

Fig 3: INSTRUMENT CLUSTER CIRCUIT DIAGRAM (3 OF 3)

GC0035111

Courtesy of DAIMLERCHRYSLER CORP.
