No Communication To Instrument Cluster: Notes

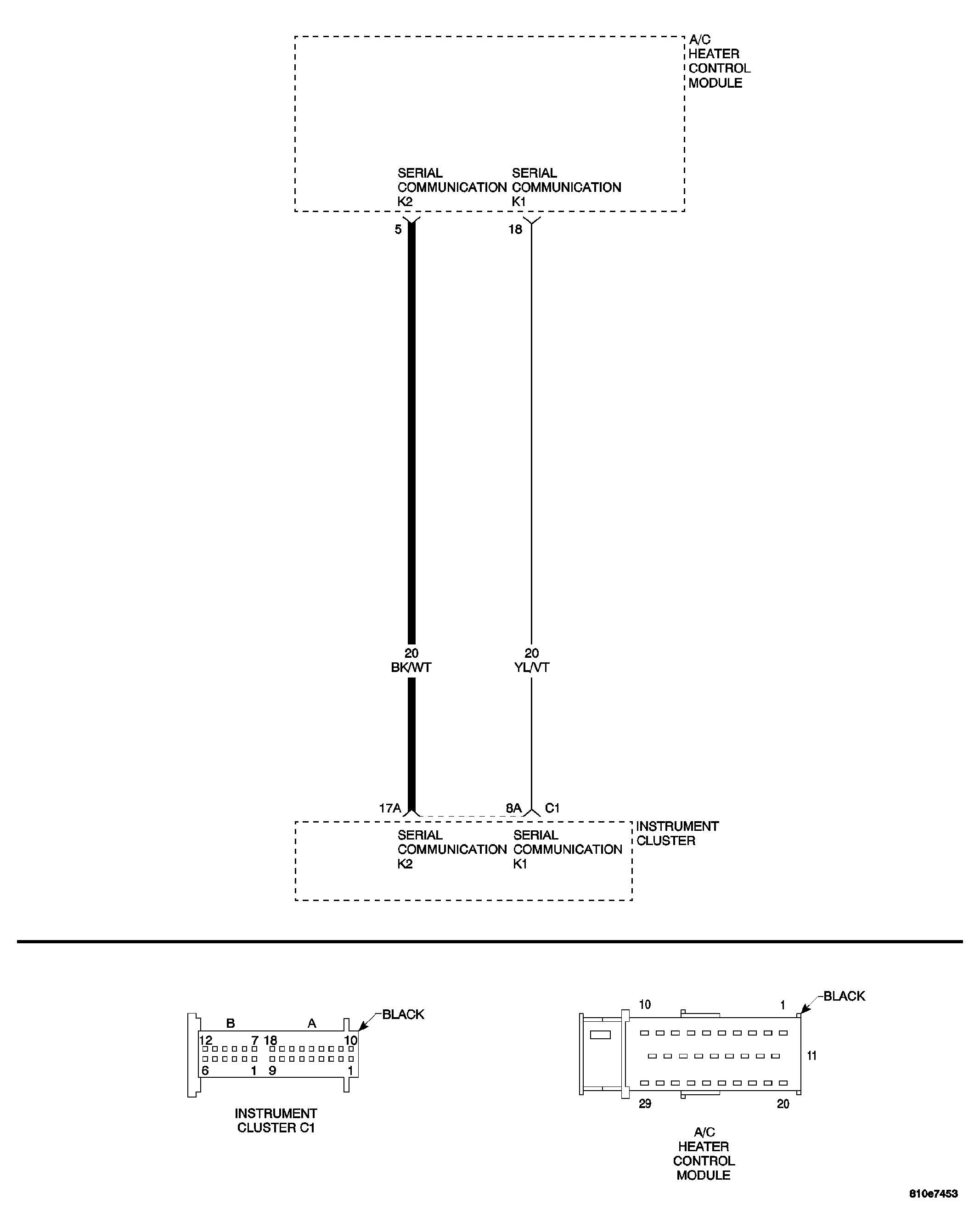

Fig 1: Instrument Cluster Serial Communication Circuit Schematic

GC0033524

Courtesy of DAIMLERCHRYSLER CORP.
