No Communication From Instrument Cluster: Notes

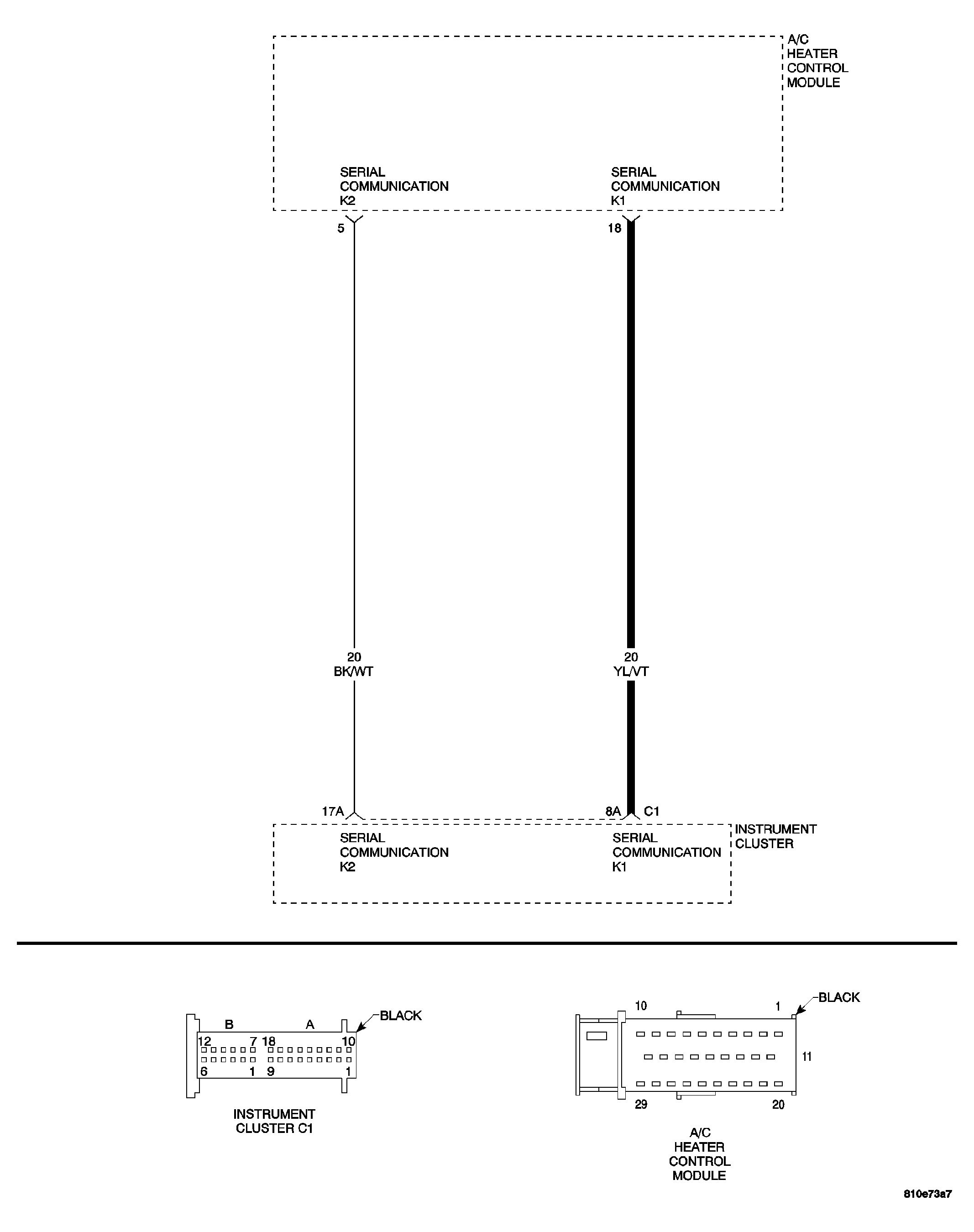

Fig 1: Instrument Cluster Serial Communication Circuit Schematic

GC0033522

Courtesy of DAIMLERCHRYSLER CORP.
