No Can Communications With TCM: Notes

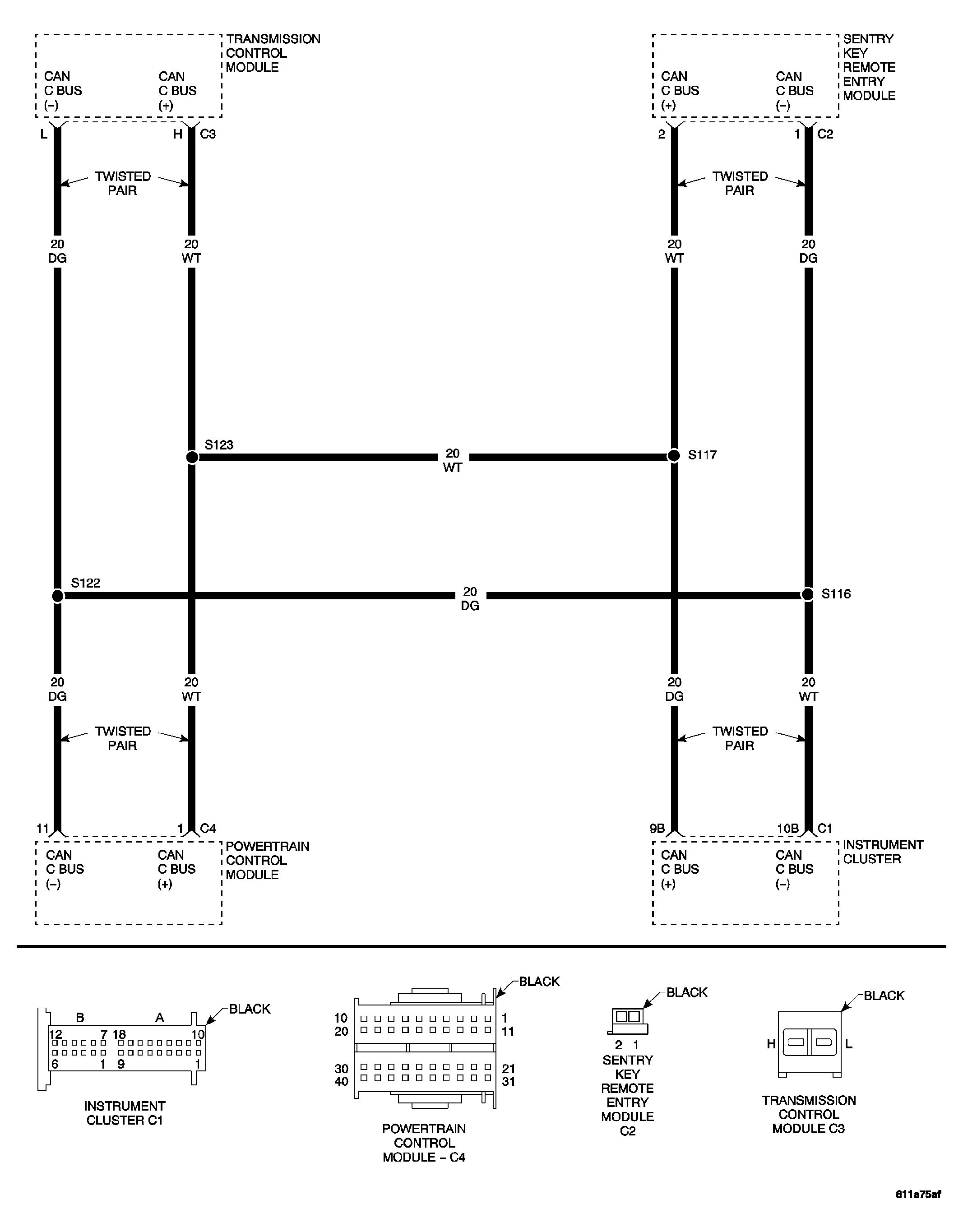

Fig 1: Transmission Control Module CAN C BUS (+)/(-) Circuit Schematic

GC0035128

Courtesy of DAIMLERCHRYSLER CORP.
