No Can Communications With Pcm: Notes

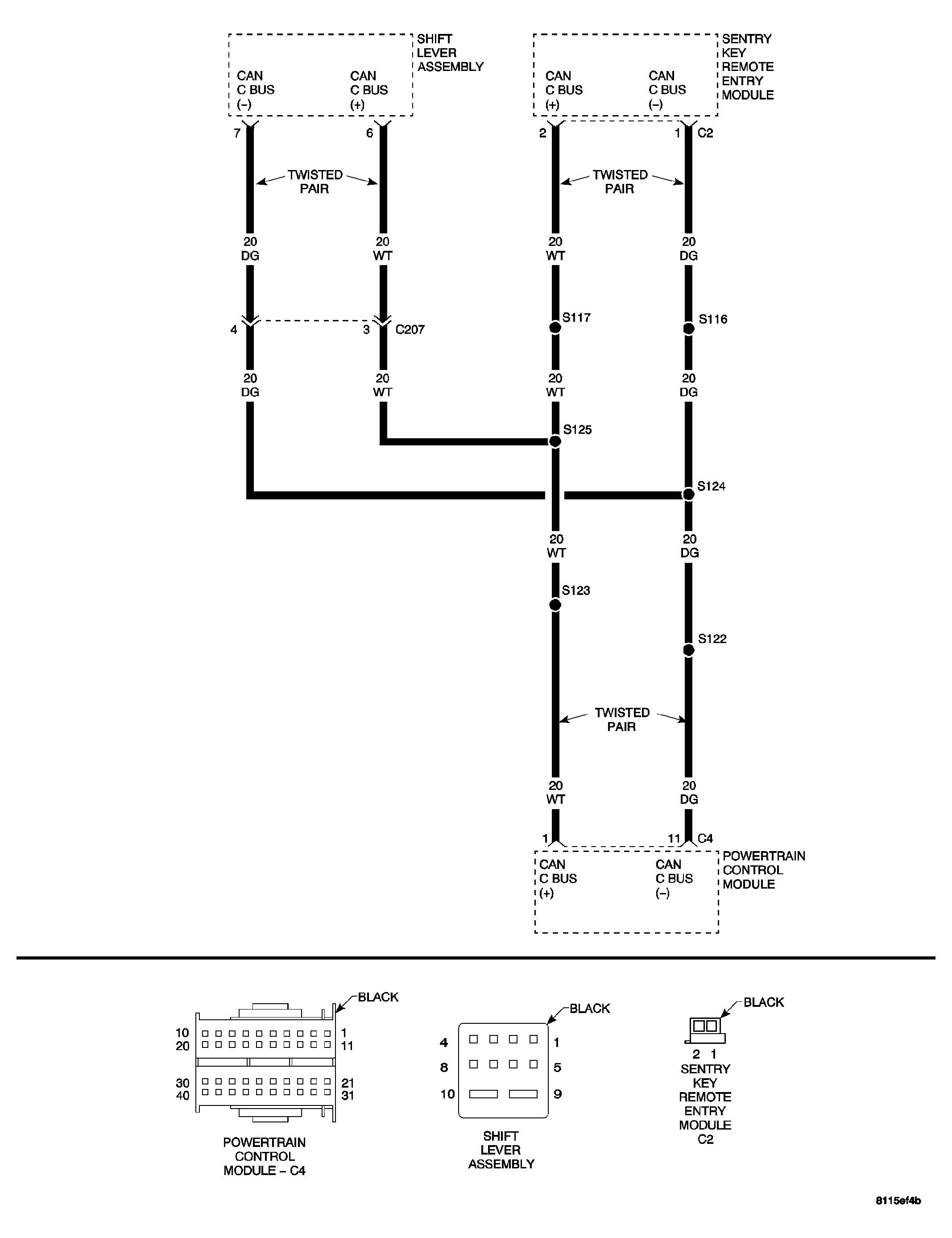

Fig 1: Shift Lever Assembly Communication Circuit Schematic

GC0034351

Courtesy of DAIMLERCHRYSLER CORP.
