Ambient Temperature Sensor Circuit: Notes

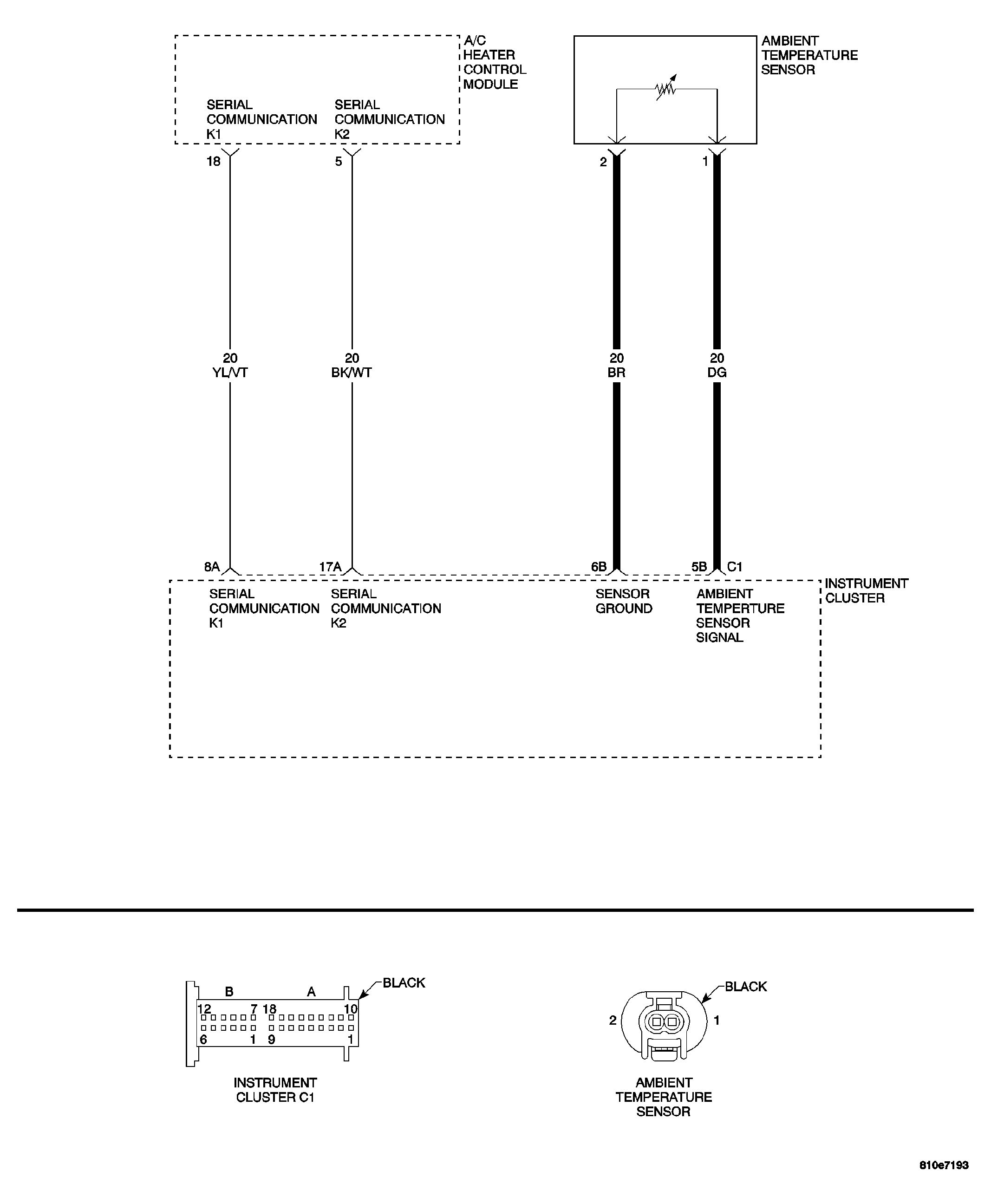

Fig 1: Ambient Temperature Sensor Circuit Schematic

GC0033456

Courtesy of DAIMLERCHRYSLER CORP.
