*Right Turn Signal Indicator Inoperative: Notes

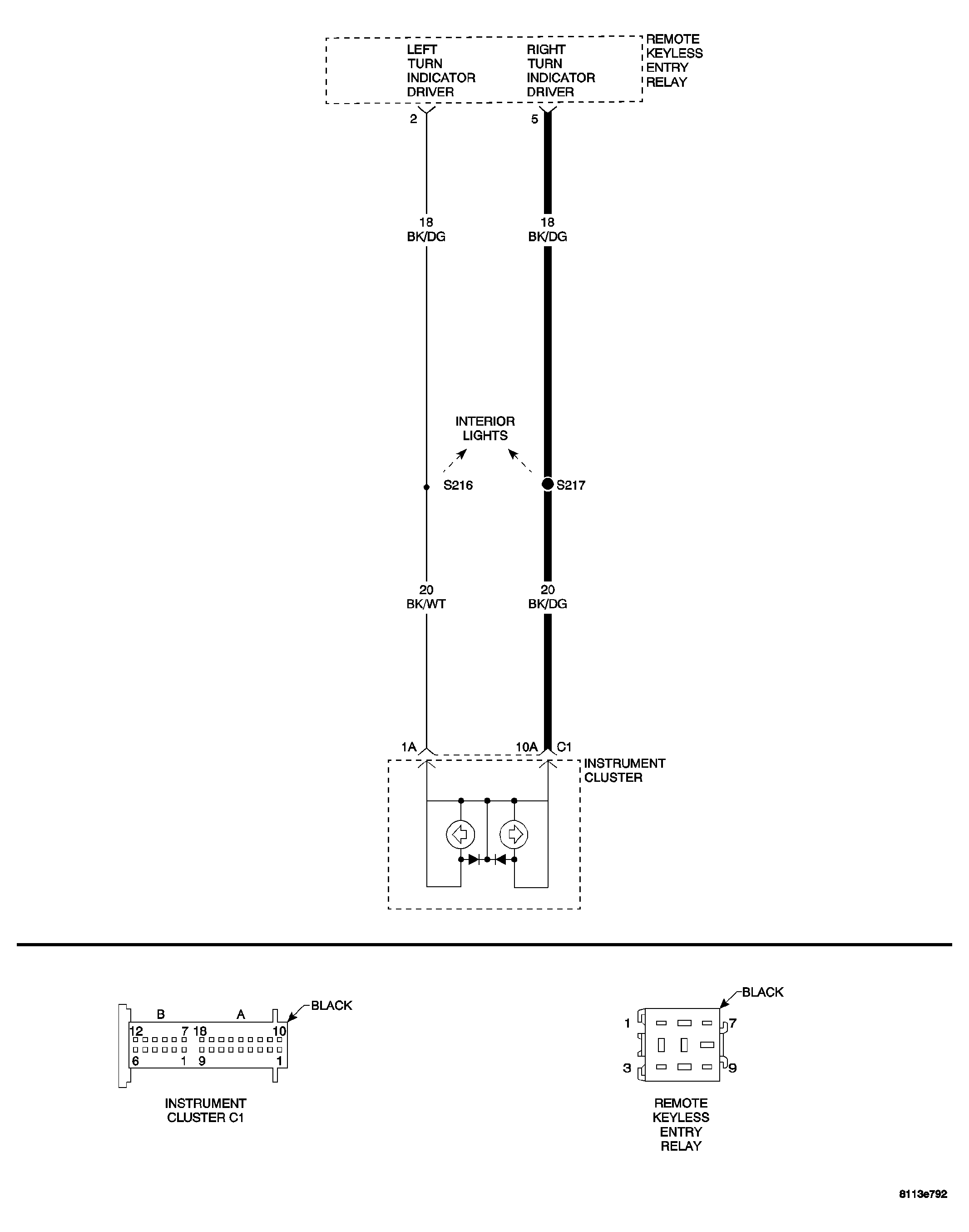

Fig 1: Turn Signal Indicator Circuit Schematic

GC0035134

Courtesy of DAIMLERCHRYSLER CORP.

POSSIBLE CAUSES
INDICATOR CIRCUIT OPEN
INDICATOR LAMP
INSTRUMENT CLUSTER

For a complete Instrument Cluster Circuit Diagram, (Refer to ELECTRICAL/INSTRUMENT CLUSTER - SCHEMATICS AND DIAGRAMS) .
