Schematics And Diagrams

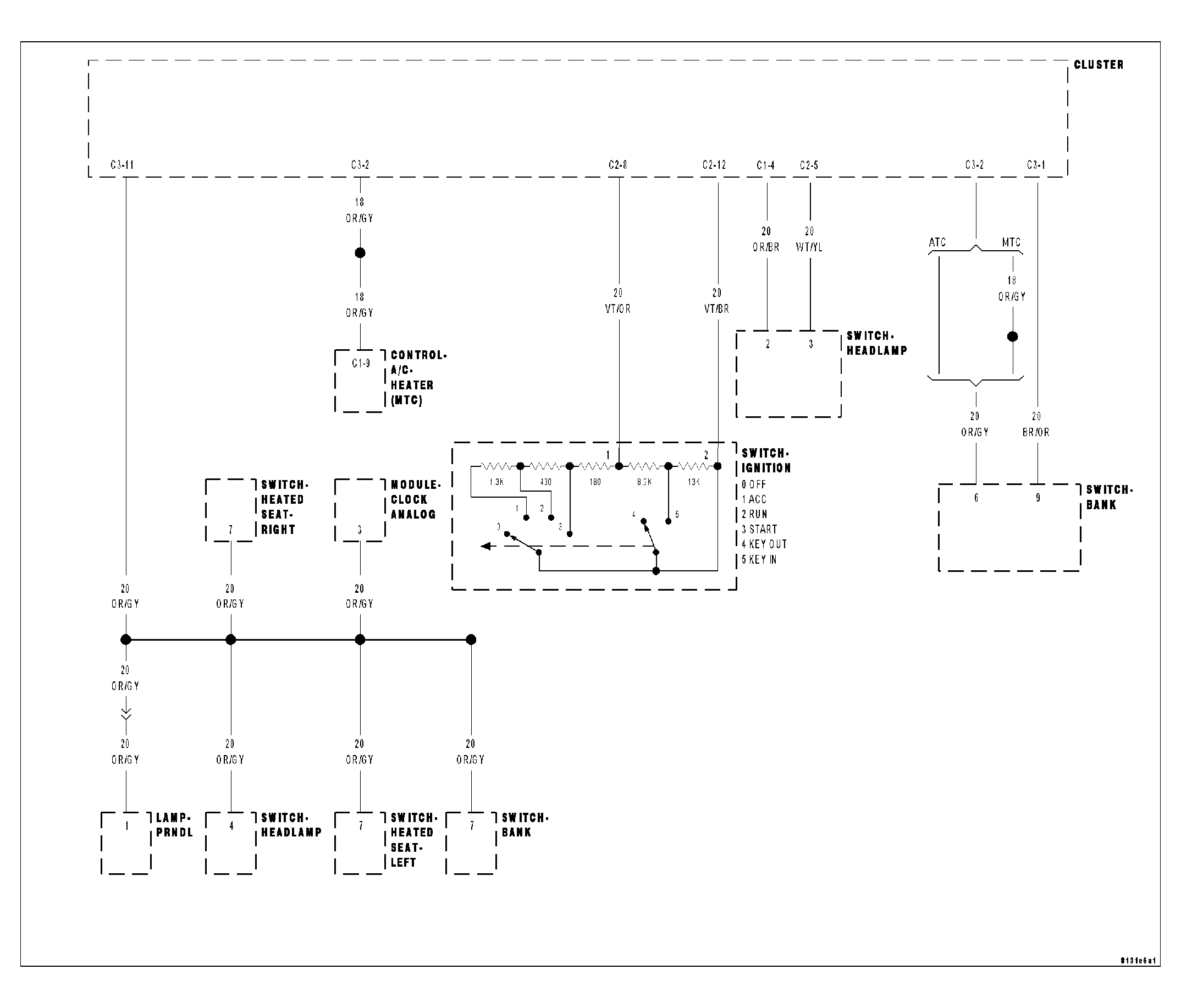

Fig 1: CLUSTER SYSTEM SCHEMATIC

GC0015999

Courtesy of DAIMLERCHRYSLER CORP.
