Component Locations
WARNING: This page is about a different variant/trim than selected.

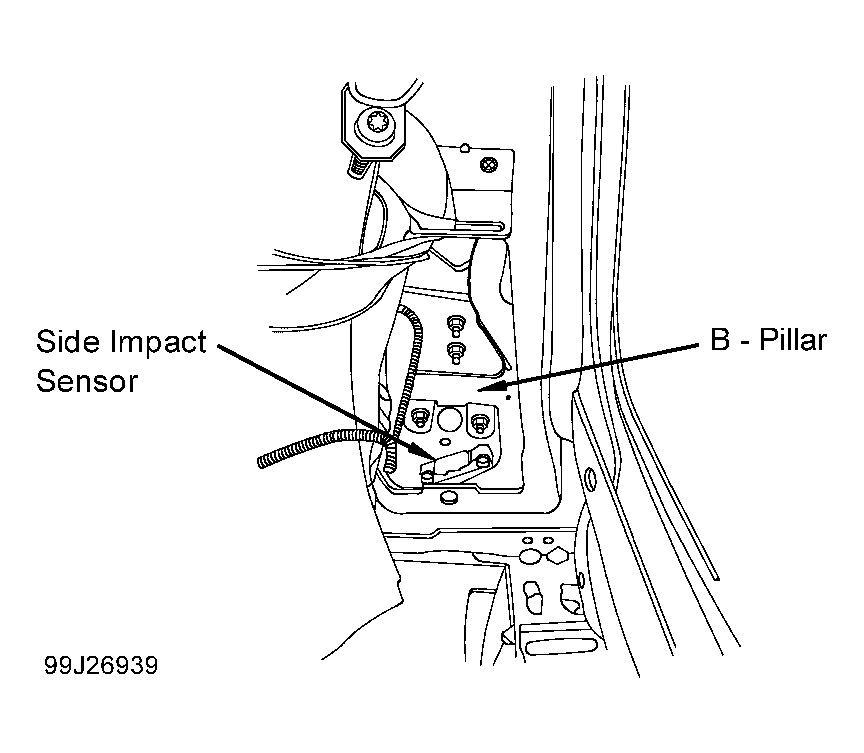

Refer to table or illustrations for restraint system component locations. See Fig 1, Fig 2, Fig 3, Fig 4 & Fig 5 .
RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | Location | ||||
|---|---|---|---|---|---|
| Clockspring | Top of steering column, behind steering wheel | ||||
| Curtain air bag module(1) | Outboard edge of roof, under headliner | ||||
| Data link connector | Under left side of steering column below instrument panel | ||||
| Dual-stage driver-side air bag module | Front face of steering wheel | ||||
| Dual-stage passenger-side air bag module | Right side of instrument panel, under top pad | ||||
| Occupant restraint controller | Floor panel transmission tunnel, between front seats | ||||
| Seat belt retractor pretensioner(1) | On B-pillar inside lower B-pillar trim | ||||
| Seat belt buckle pretensioner(2) | Inboard side of front seat | ||||
| Side impact sensor(1) | On B-pillar inside lower B-pillar trim | ||||
|
|||||
