Instrument Panel Outboard Bezel: Installation

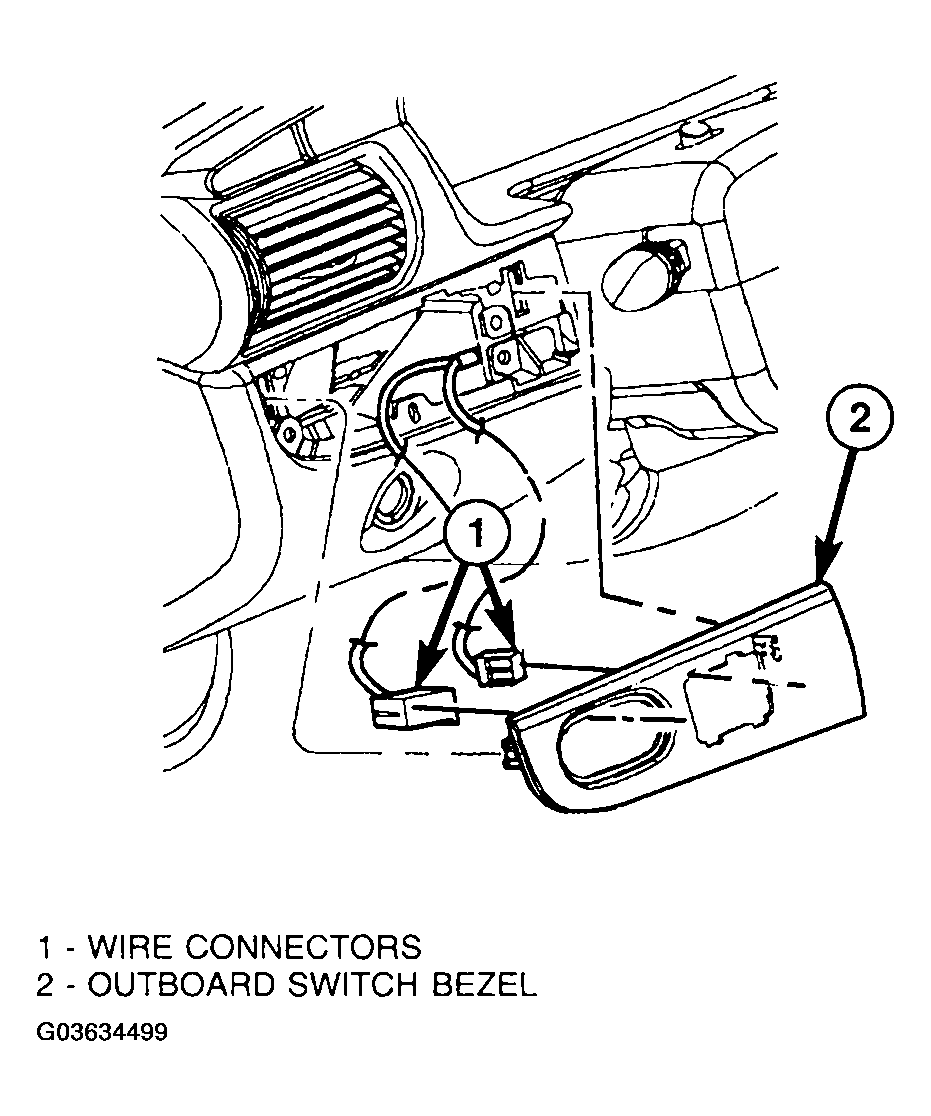

  1. Place the power mirror switch into the outboard switch bezel and firmly snap into place (Figure ).
  2. Connect the wire connector.
  3. Position the instrument panel outboard switch bezel over retaining slots and firmly snap into place.
  4. Connect the battery negative remote cable.
