Master Cylinder: Removal

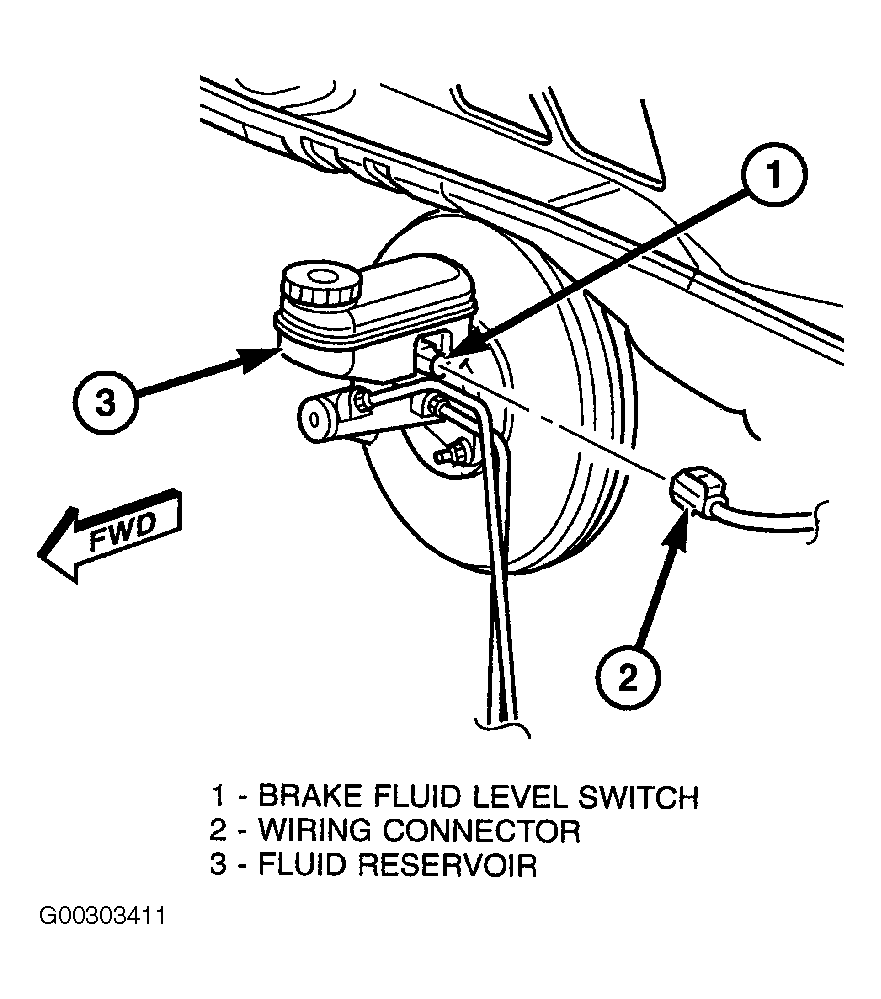

- Remove vehicle wiring harness connector from brake fluid level switch in side of master cylinder brake fluid reservoir. See Fig 1.

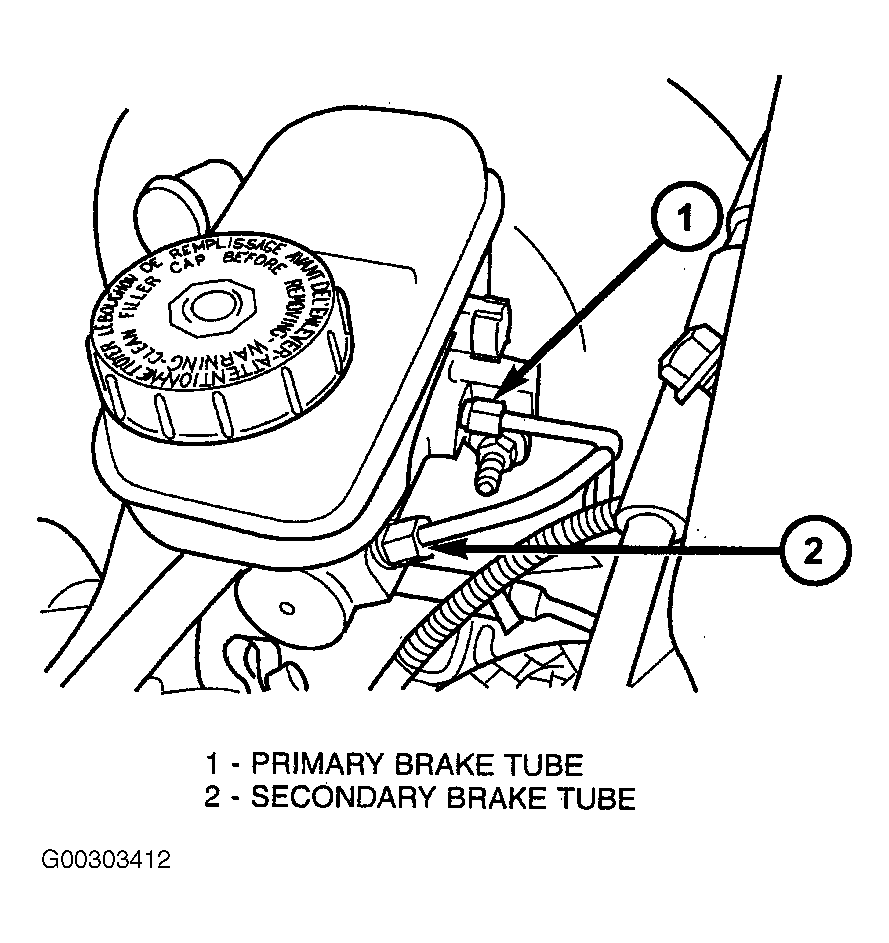

- Disconnect the primary and secondary brake tubes from master cylinder outlet ports. See Fig 2. Install plugs at open brake tube outlets on master cylinder assembly.
- Using Mopar® Brake Parts Cleaner or equivalent, clean area where master cylinder attaches to booster.
- Remove the 2 nuts attaching master cylinder assembly to power brake vacuum booster.
- Slide master cylinder assembly straight off its mounting studs on power brake vacuum booster.
