Front Disc Brake Shoes: Installation

NOTE: There may be more than one lining material released. Make sure correct linings are being installed.
  1. Begin on one side of the vehicle.
  2. Completely retract the caliper piston back into its bore in the brake caliper. This is required for caliper installation on the brake rotor with new brake shoes installed.
  3. If applied, remove the protective paper from the noise suppression gasket on the rear of both the inner and outer brake shoe assemblies.
    4. NOTE: Inboard brake shoes are stamped L or R for left or right side of the vehicle. The P-slot or void on piston insulator must be positioned upward when brake caliper is mounted. See Fig 1.
  4. Install the new inboard brake shoe into the caliper piston by firmly pressing its retaining clip into the piston bore. Be sure the inboard brake shoe is positioned squarely against the face of the caliper piston.
  5. Lubricate both adapter abutments where the shoes slide with a small amount of Mopar® Dielectric grease, or equivalent.
  6. Slide the new outboard brake shoe into the caliper adapter with the lining up against the outside of the brake rotor.
    7. CAUTION: Use care when installing the caliper assembly onto the caliper adapter, so the caliper guide pin bushings do not get damaged by the adapter bosses.
  7. Carefully position the brake caliper over the brake rotor and adapter.
  8. Install and tighten the caliper guide pin bolts to specification. See TORQUE SPECIFICATIONS . Extreme caution should be taken not to cross thread the caliper guide pin bolts.
  9. Install the caps over the caliper guide pin bolts.
  10. Install the new caliper hold down spring (anti-rattle clip) on the outboard side of the caliper. Start the spring into the holes on the caliper, then stretch the clip legs past the abutments on the caliper adapter.
  11. Repeat the previous procedures on other side of the vehicle.
  12. Install the wheel and tire assemblies. Tighten the wheel mounting nuts to specification. See TORQUE SPECIFICATIONS .
  13. Lower vehicle.
  14. Pump the brake pedal several times. This will set the shoes to the brake rotor.
  15. Check and adjust brake fluid level as necessary.
  16. Road test the vehicle and make several stops to wear off any foreign material on the brakes and to seat the brake shoes.

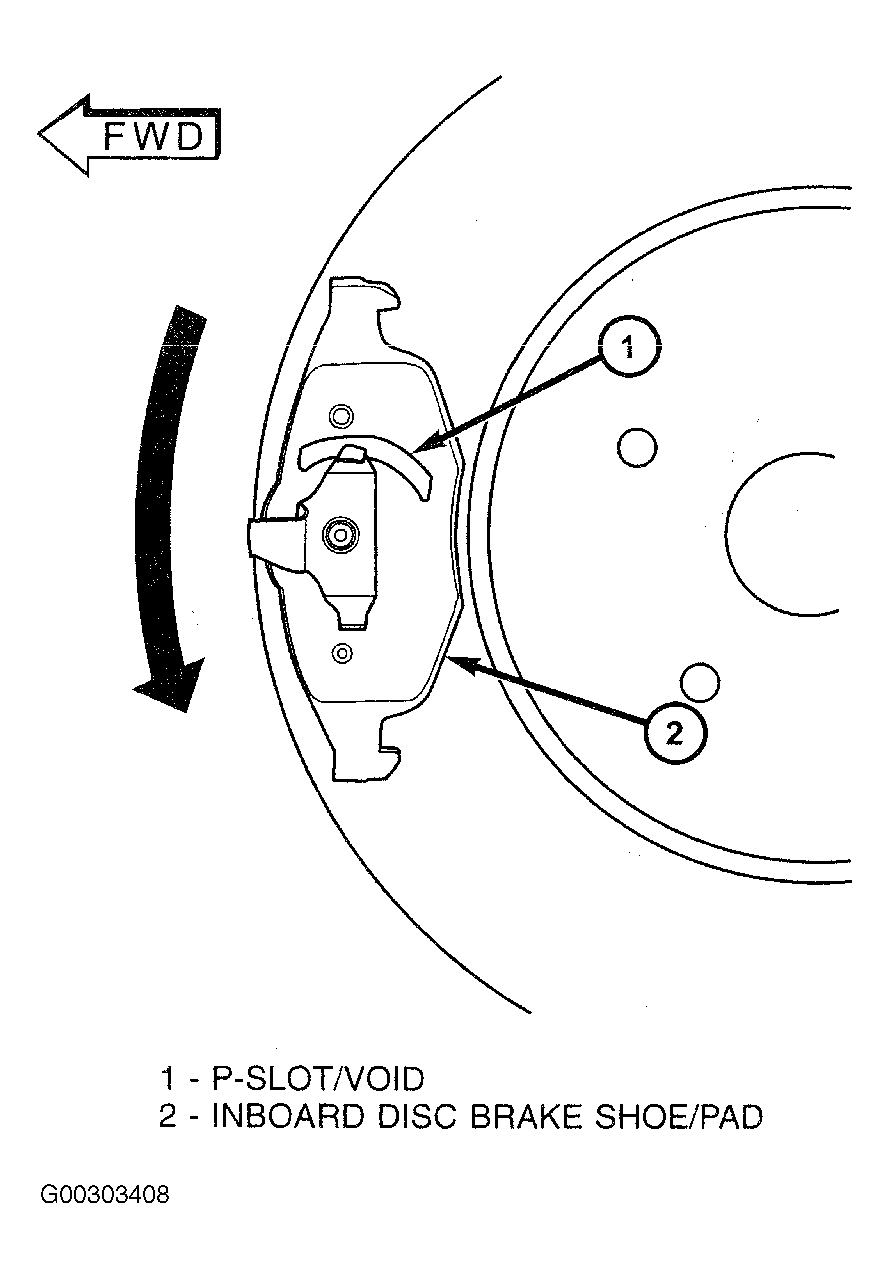

Fig 1: Identifying Inboard Shoe Orientation To Turning Rotor
G00303408Courtesy of CHRYSLER CORP.
