Front Brake Rotor: Removal
- Raise the vehicle.
- Remove the front tire and wheel assembly.
- Slide the caliper outward in an effort to retract the caliper piston into its bore.

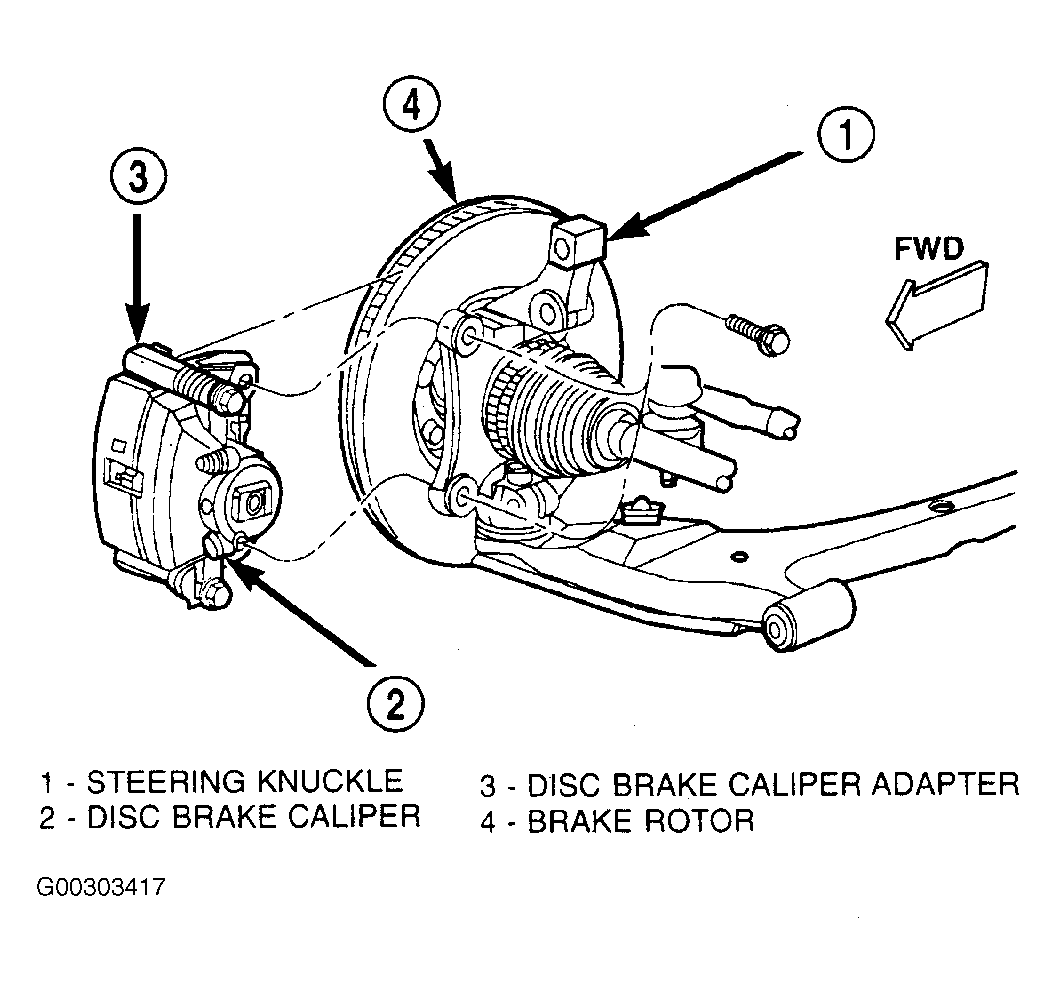

- Remove the 2 bolts securing disc brake caliper adapter to the steering knuckle. See Fig 1.
- Remove the disc brake caliper and adapter from the knuckle as an assembly. Hang the assembly out of the way using wire or a bungee cord. Use care not to overextend the brake hose when doing this.
- Remove the clips retaining the brake rotor to the wheel studs.
- Remove the brake rotor.
Courtesy of CHRYSLER CORP.
