Home >> Chrysler >> 2004 >> Sebring GTC, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel - Except Coupe >> Right Instrument Panel Trim Bezel >> Installation

Right Instrument Panel Trim Bezel: Installation

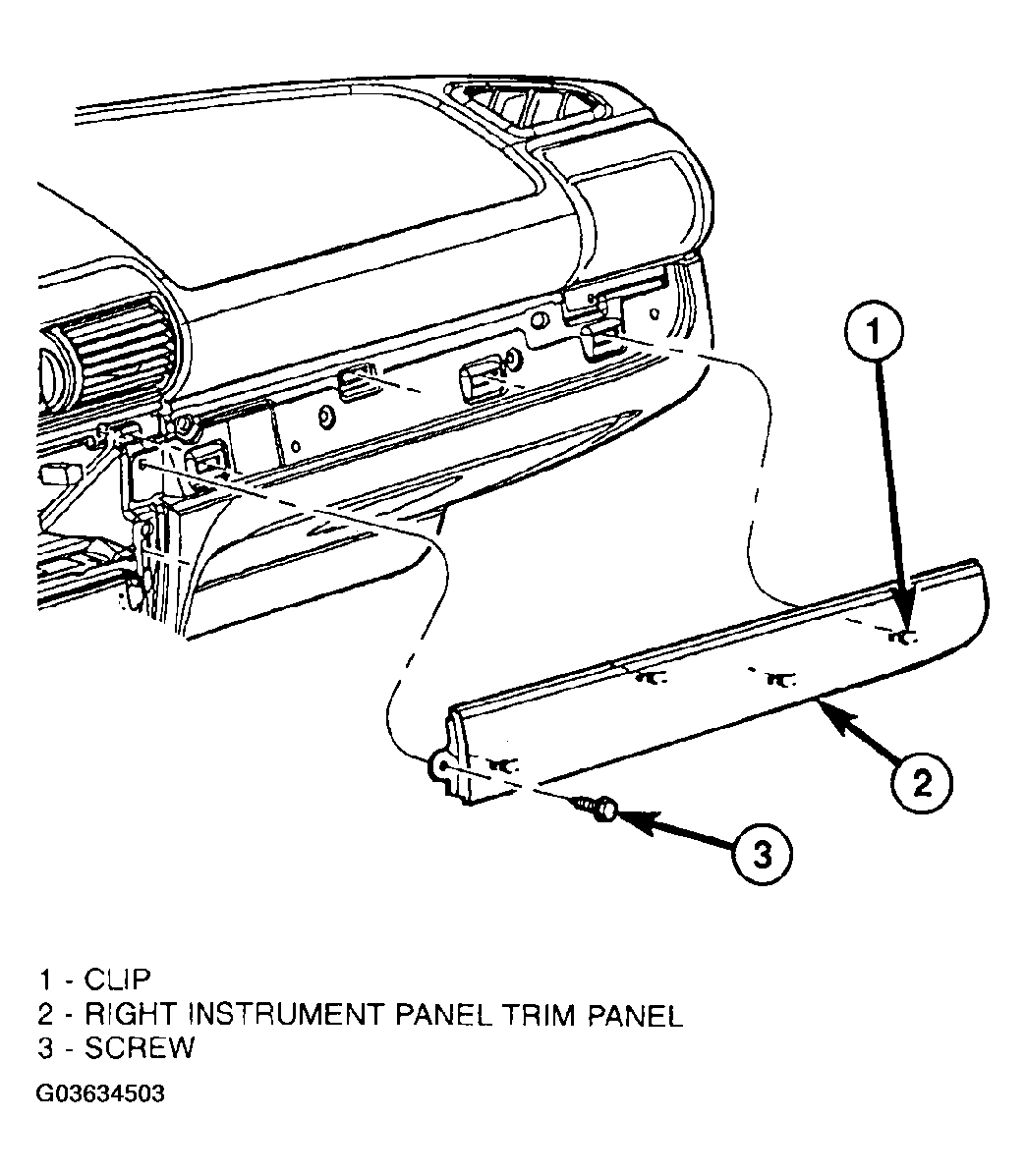

  1. Position the right instrument panel trim bezel over retaining slots and firmly snap into place (Figure ).
  2. Install the one retaining screw located on the side of the center stack, behind the center bezel.
  3. Install the instrument panel center bezel. (Refer to INSTRUMENT PANEL CENTER BEZEL  ).
