Left Lower Instrument Silencer Panel: Installation

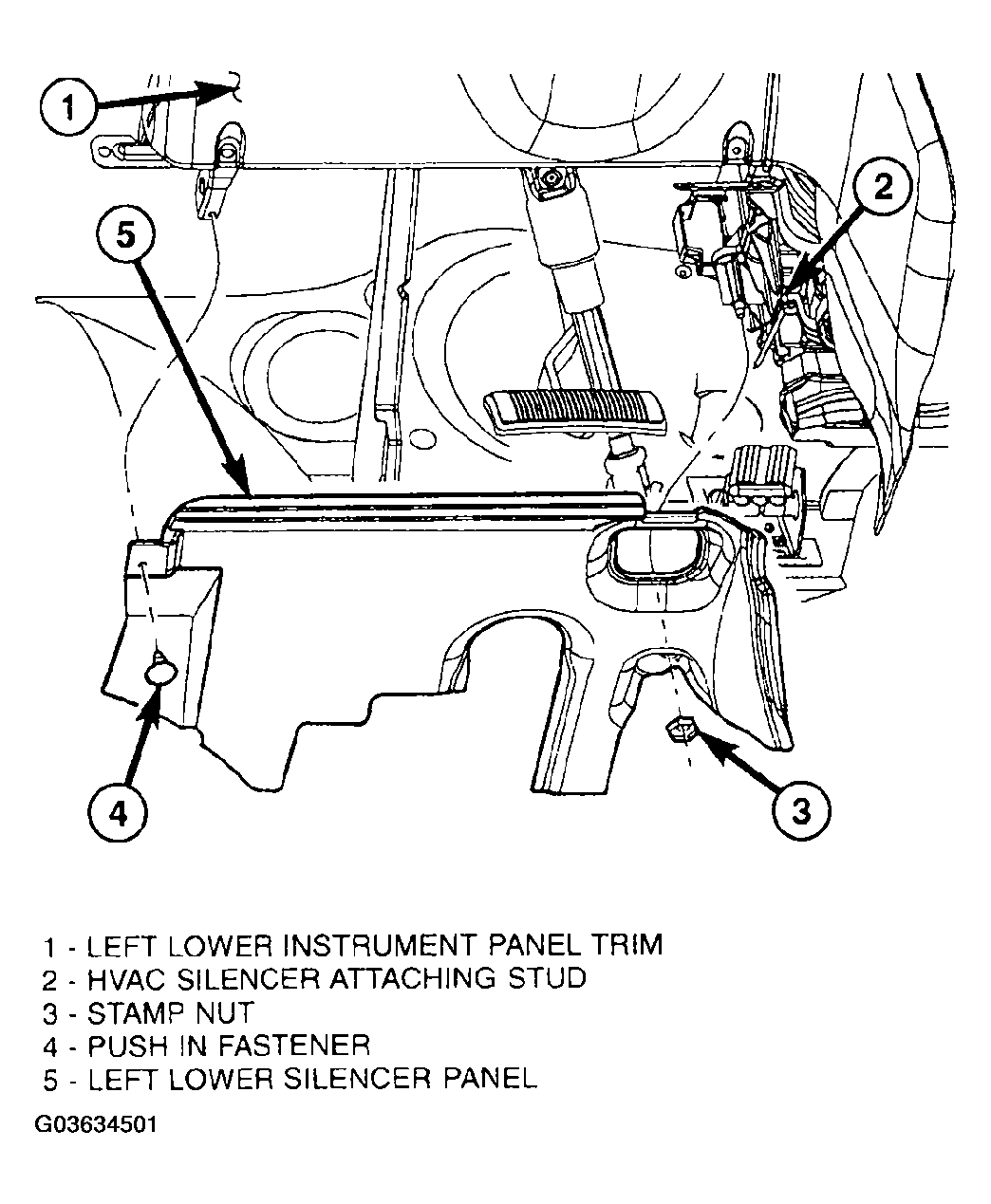

  1. Position silencer panel over HVAC stud (Figure ).
  2. Install stamp nut and install push in fastener.
  3. Connect deck lid release wire connector.
  4. Position the left lower instrument panel trim over the retaining slots and firmly push into place.
  5. Install five screws attaching left lower instrument panel trim.
  6. Connect power mirror switch wire connector.
  7. Install instrument panel bezel.
  8. Install end cap.
