Instrument Panel Top Cover: Installation

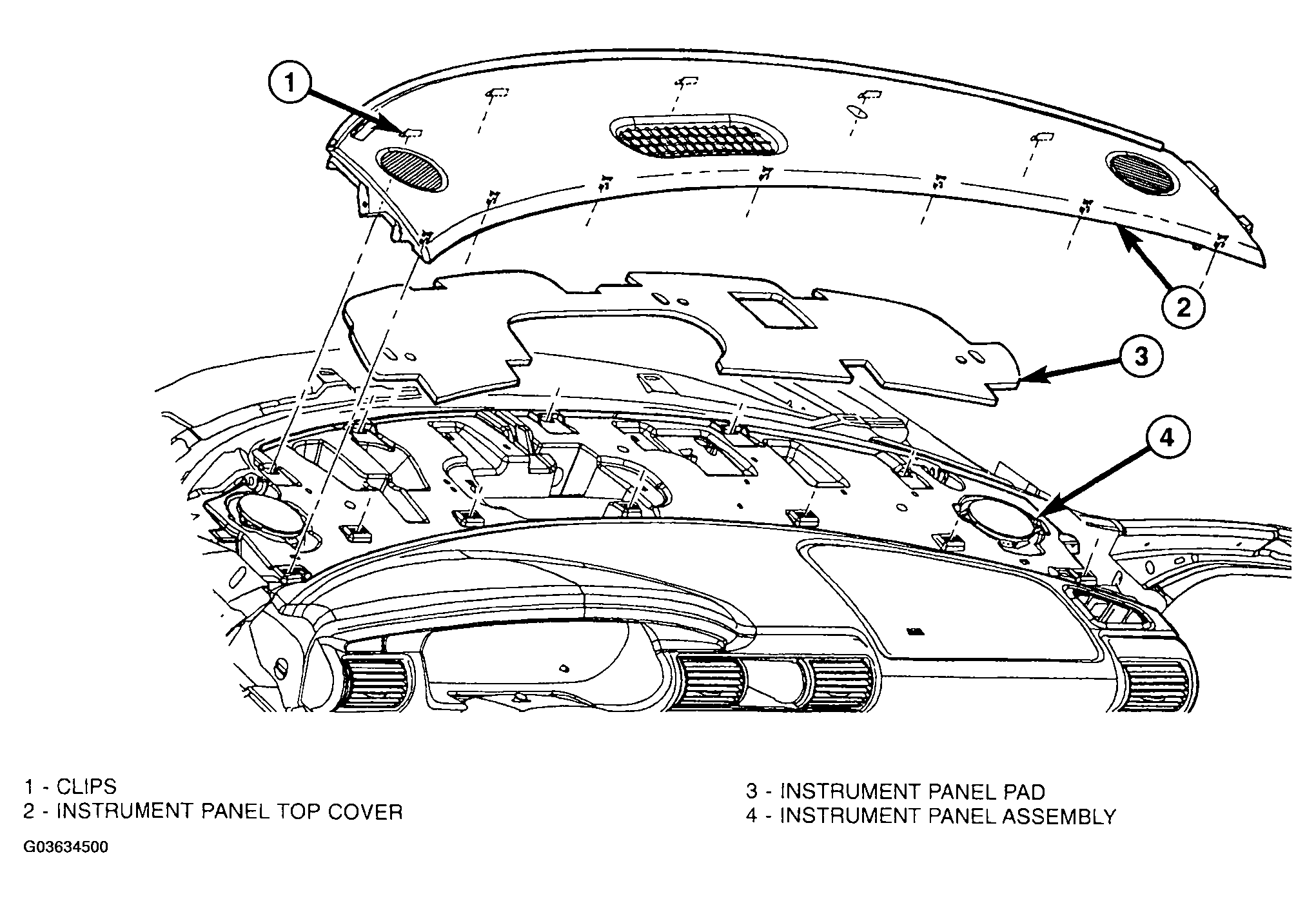

  1. Place instrument panel top cover in position on vehicle (Figure ).
  2. Push top cover forward to engage hooks to hold front of top cover to instrument panel.
  3. Engage clips to hold rear edge of top cover to instrument panel.
  4. Pull top cover rearward as you firmly push down and snap into place.
  5. Install A-pillar trim.
