Instrument Panel Inboard Bezel: Installation

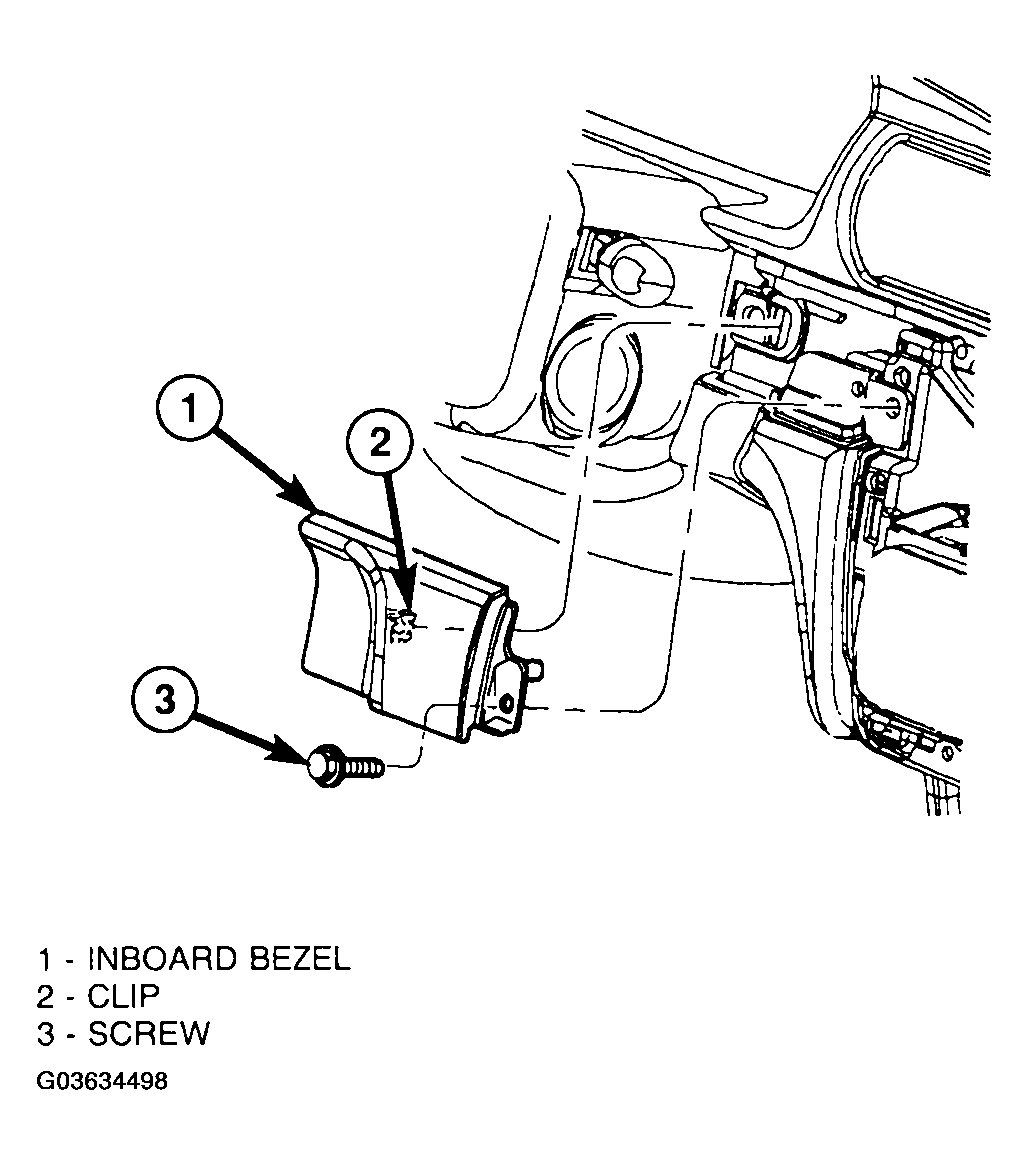

  1. Position the instrument panel inboard bezel over the retaining slots and firmly snap into place (Figure ).
  2. Install the one retaining screw located on the left side of the center stack, behind the center bezel.
  3. Install the instrument panel center bezel. Refer to INSTRUMENT PANEL CENTER BEZEL  .
