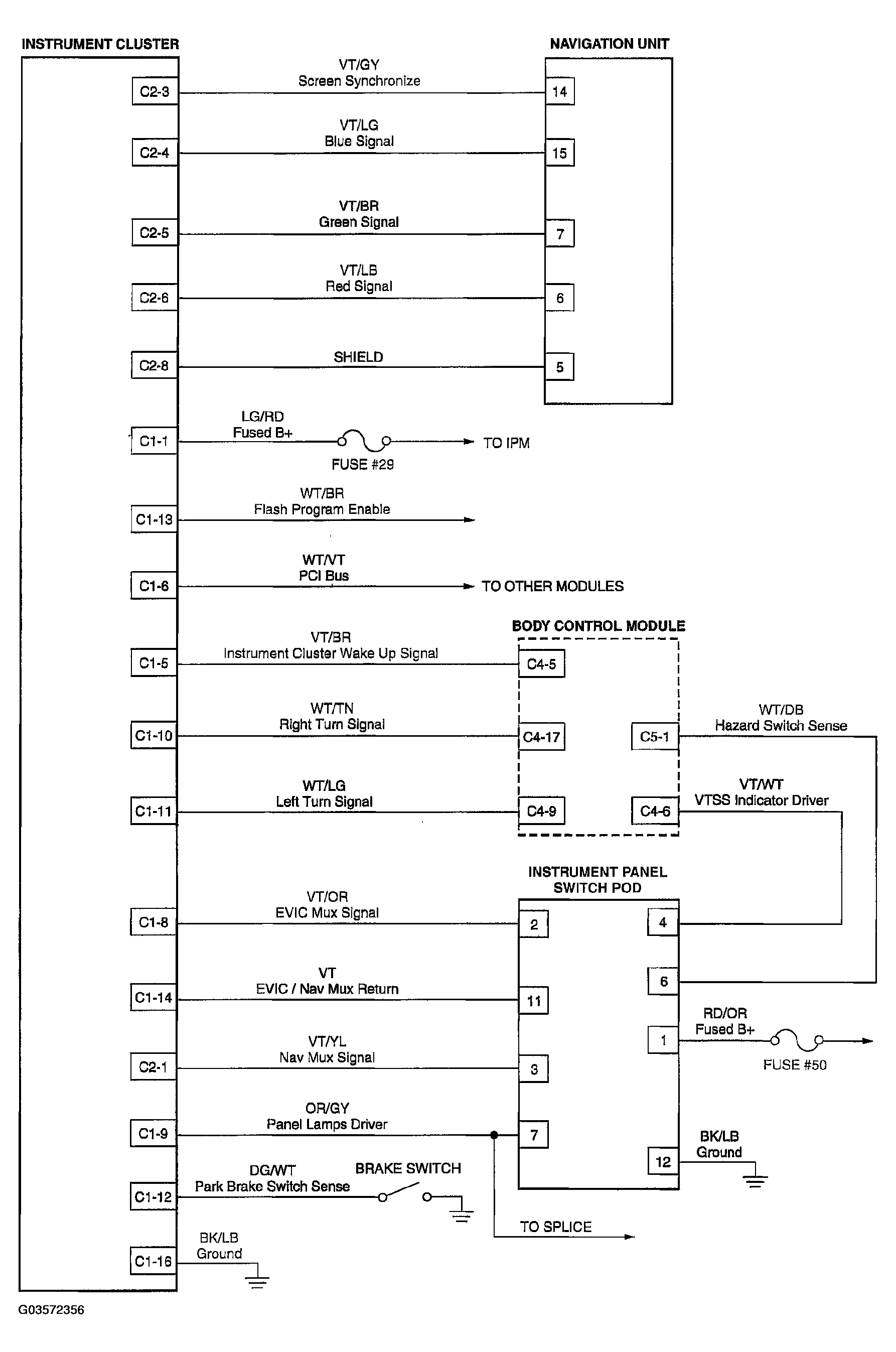

Home >> Chrysler >> 2004 >> Pacifica FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Component Locations >> Schematic Diagrams >> Instrument Cluster
