Exterior Lights/Front Lighting

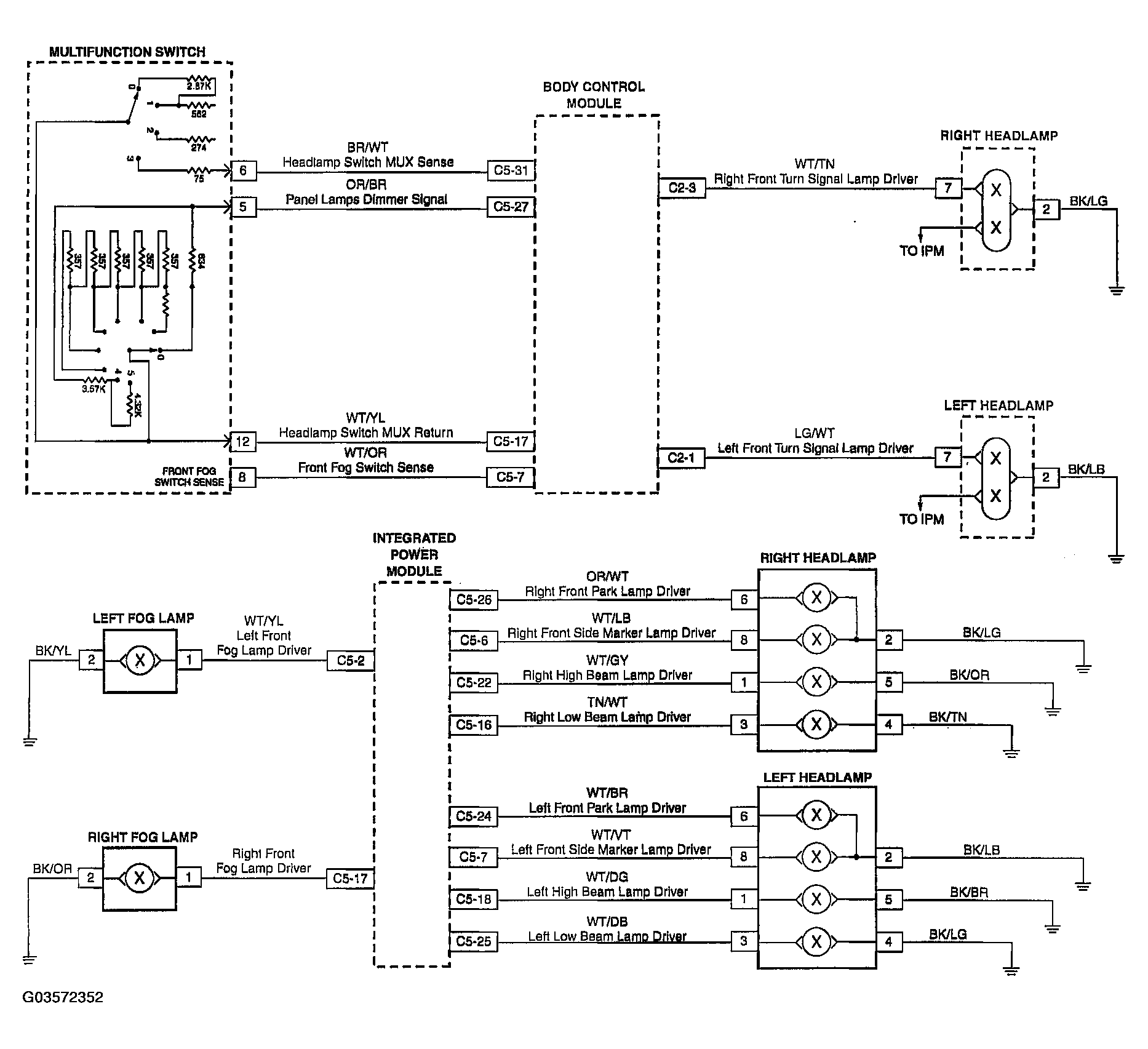

Fig 1: Front Lighting - Schematic Diagram

G03572352

Courtesy of DAIMLERCHRYSLER CORP.

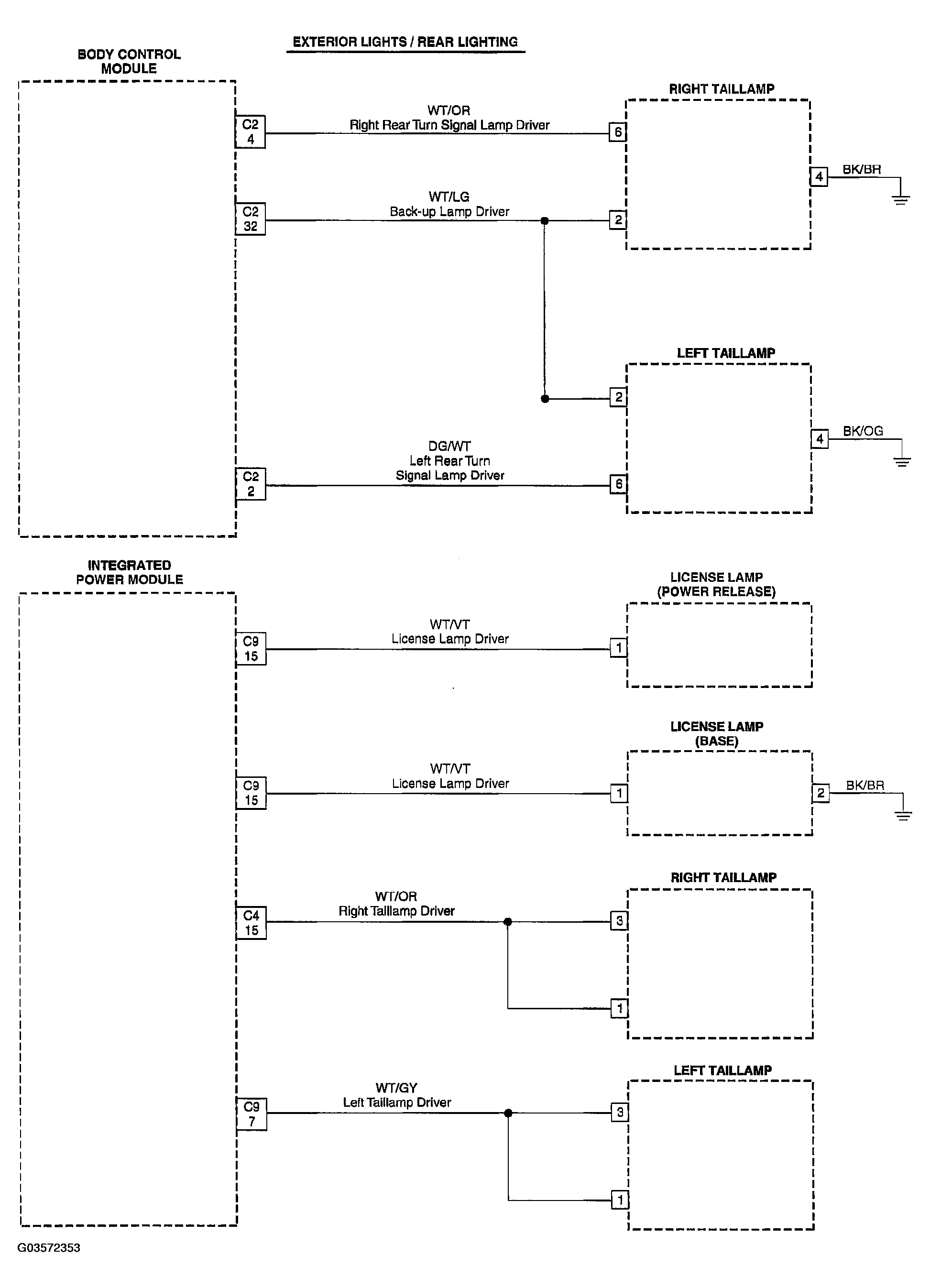

Fig 2: Exterior Lights - Schematic Diagram

G03572353

Courtesy of DAIMLERCHRYSLER CORP.
