Schematic Diagrams: Chime

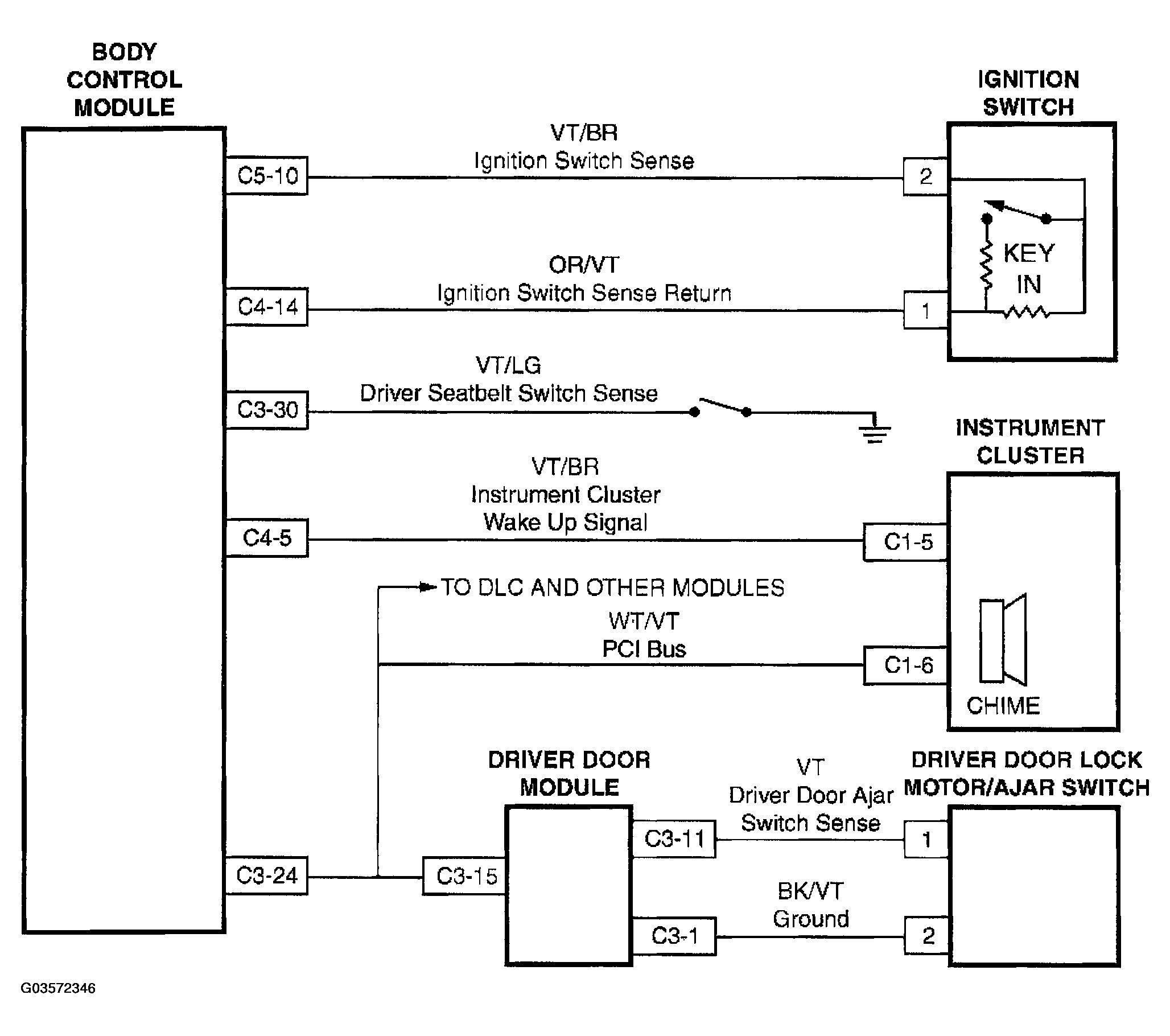

Fig 1: Chime - Schematic Diagram

G03572346

Courtesy of DAIMLERCHRYSLER CORP.
