Body Diagnostic Procedures - Component Locations
>>
Connector PINOUTS
>>
Wiper/Washer Switch - White 10 Way
Wiper/Washer Switch - White 10 Way

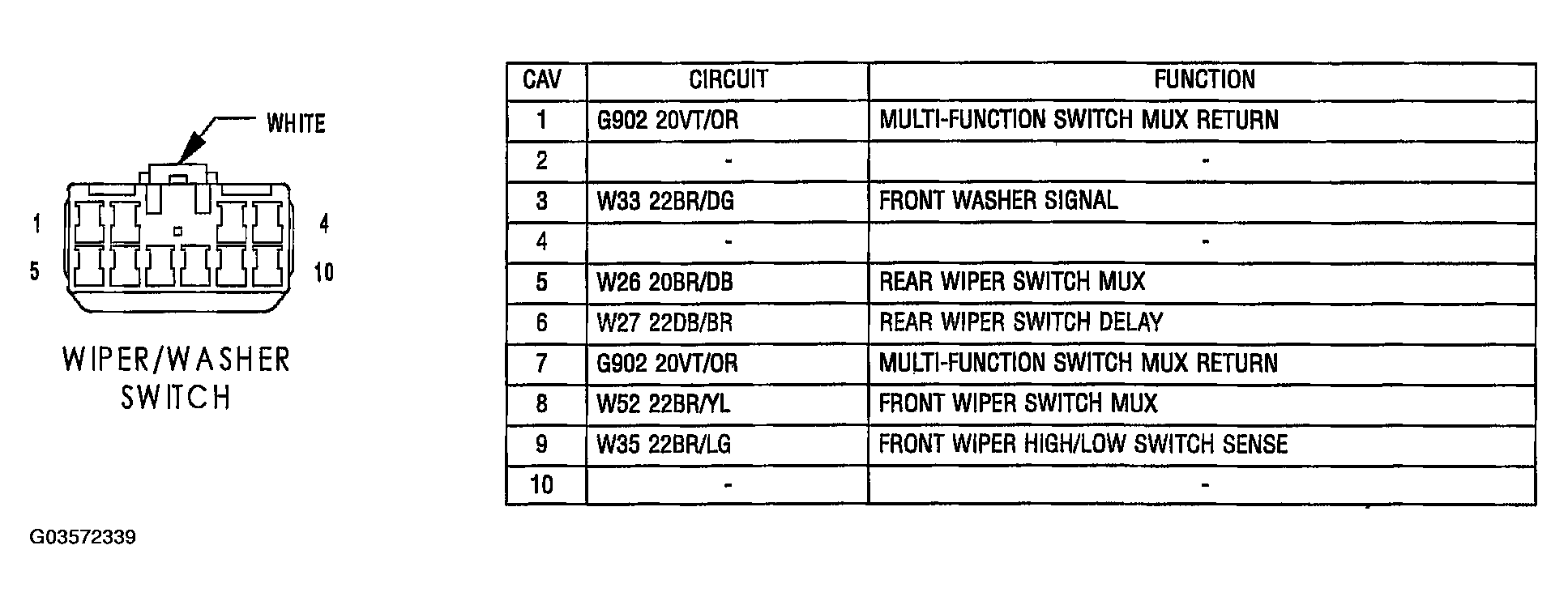

Fig 1: Identifying Wiper/Washer Switch Connector Terminals And Specification (White 10 Way)
Courtesy of DAIMLERCHRYSLER CORP.
NOTES
Courtesy of DAIMLERCHRYSLER CORP.
