Connector PINOUTS
>>
Wiper Module-Front - Black 5 Way
Wiper Module-Front - Black 5 Way

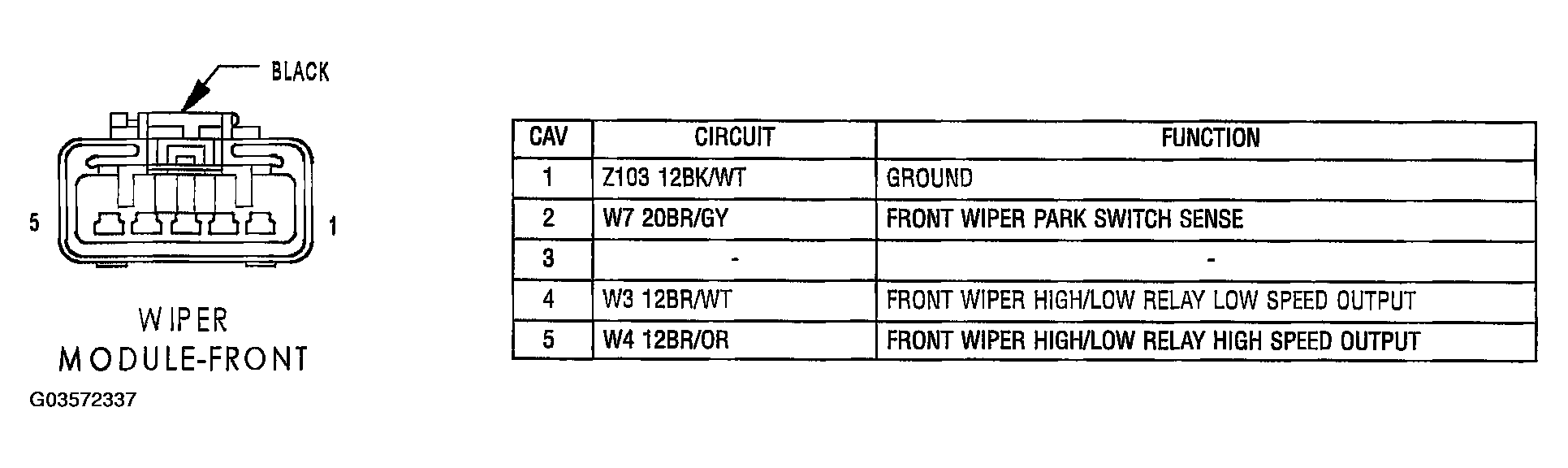

Fig 1: Identifying Wiper Module-Front Connector Terminals And Specification (Black 5 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
