Washer Pump Motor-Rear - DK. Gray 2 Way

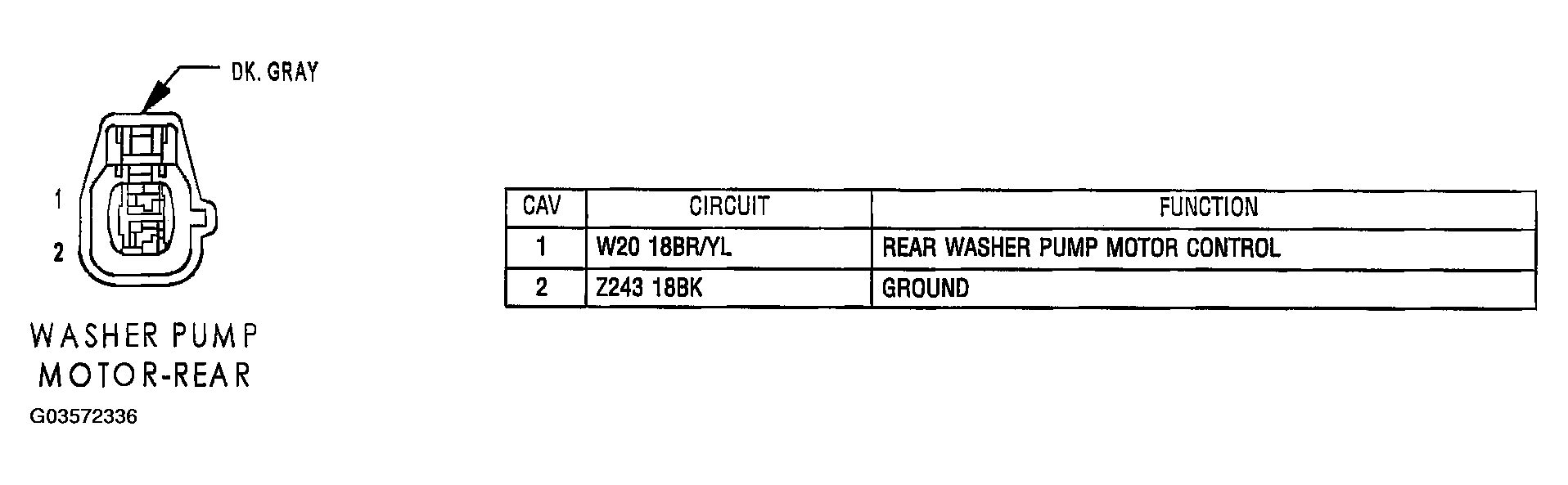

Fig 1: Identifying Washer Pump Motor-Rear Connector Terminals And Specification (DK. Gray 2 Way)

G03572336

Courtesy of DAIMLERCHRYSLER CORP.
