Washer Pump Motor-Front - Natural 2 Way

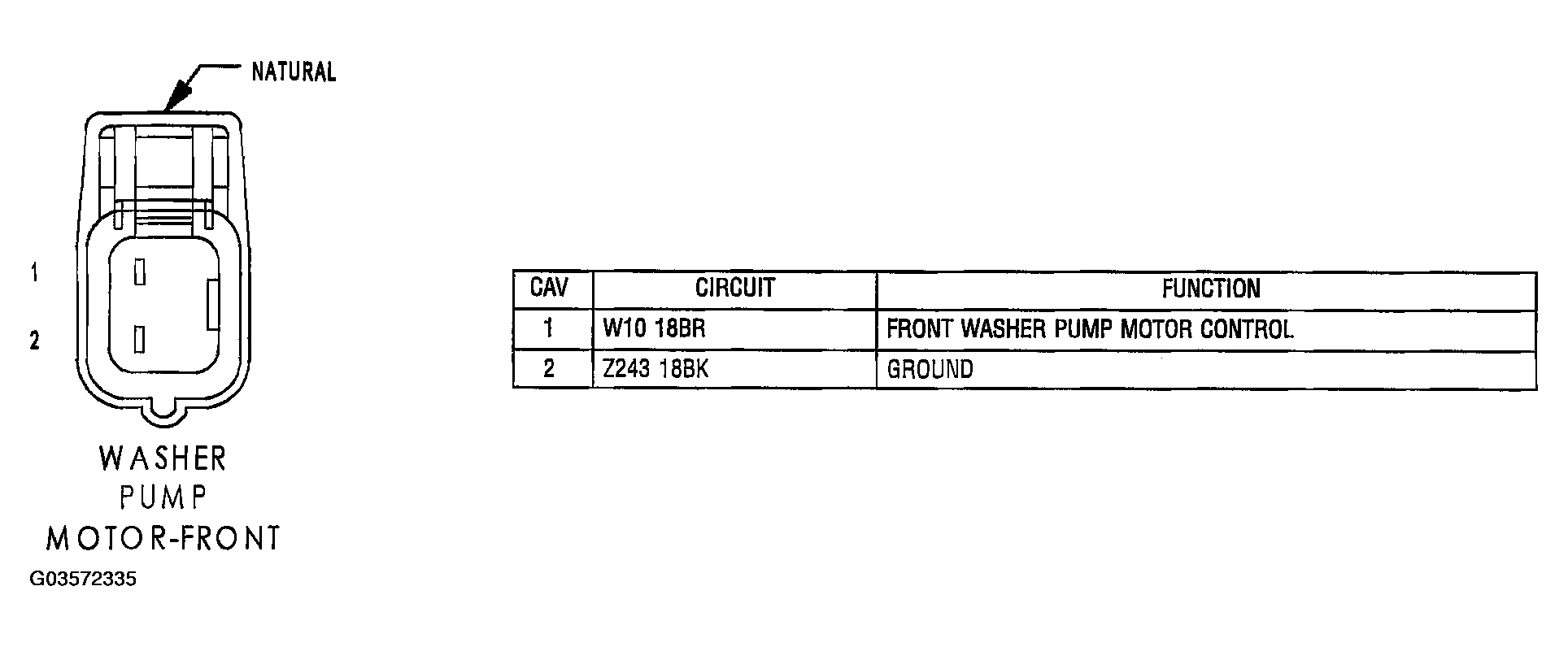

Fig 1: Identifying Washer Pump Motor-Front Connector Terminals And Specification (Natural 2 Way)
G03572335Courtesy of DAIMLERCHRYSLER CORP.
