Washer Fluid Level Switch - Gray 2 Way

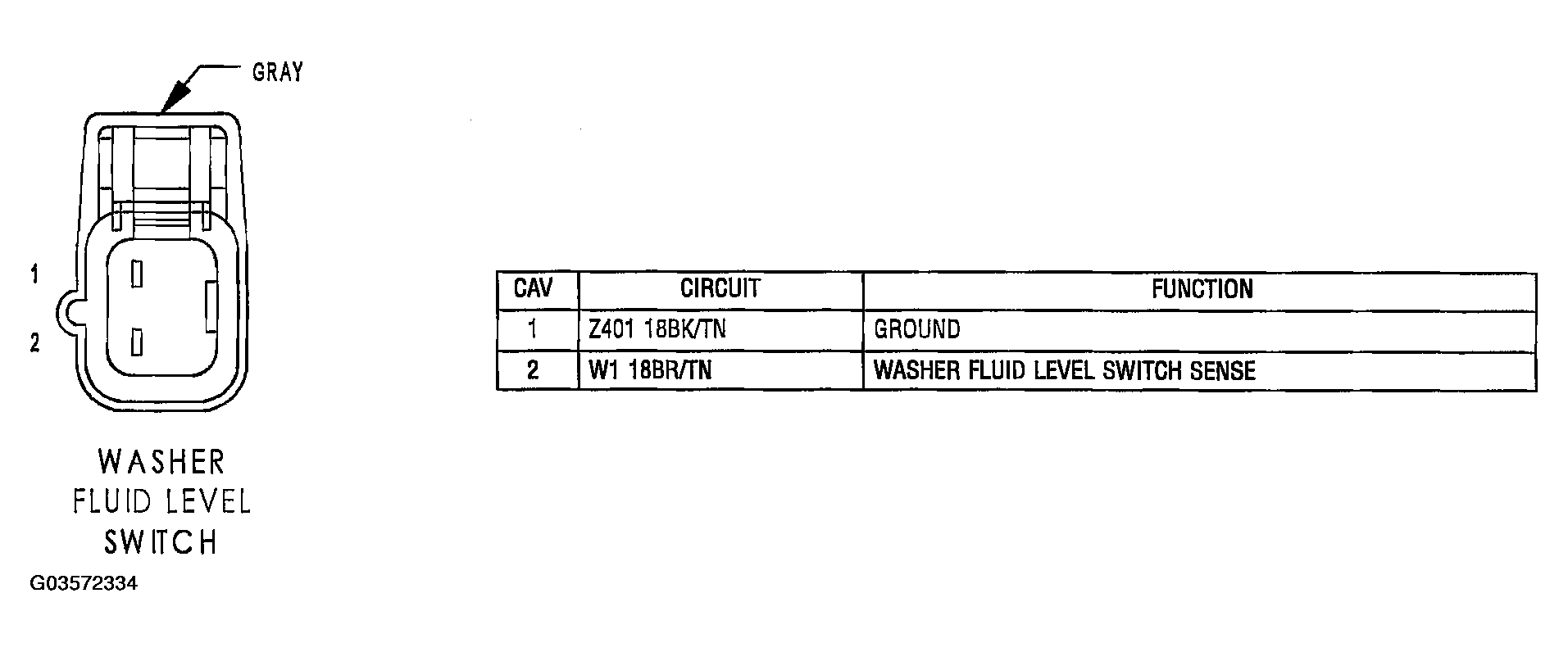

Fig 1: Identifying Washer Fluid Level Switch Connector Terminals And Specification (Gray 2 Way)
G03572334Courtesy of DAIMLERCHRYSLER CORP.
