Traction Control Switch - Black 3 Way

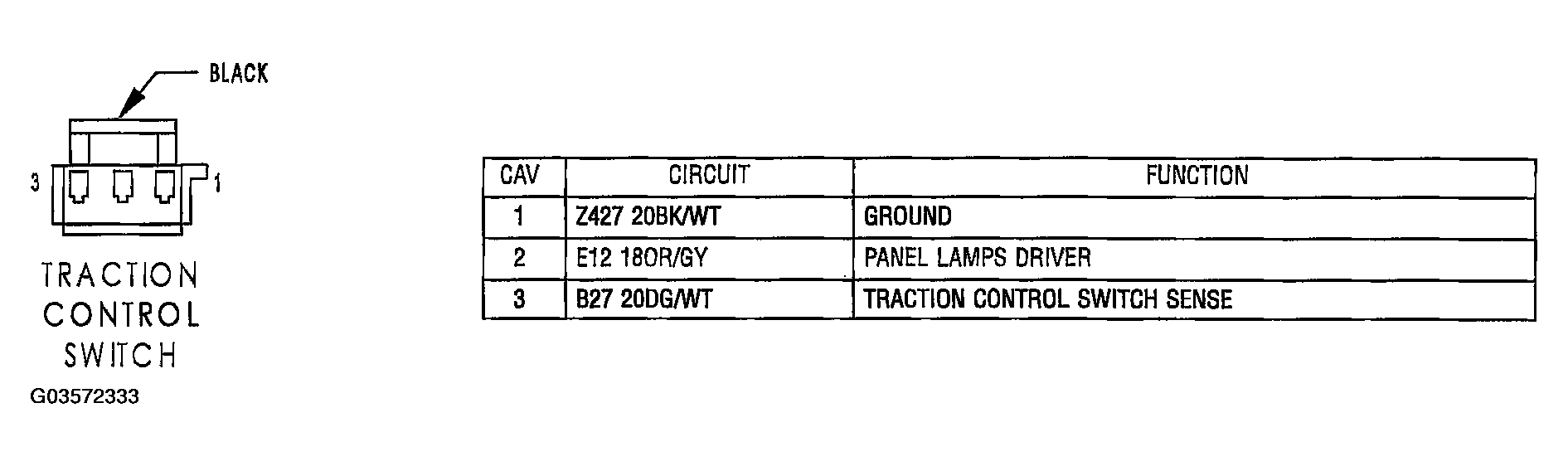

Fig 1: Identifying Traction Control Switch Connector Terminals And Specification (Black 3 Way)

G03572333

Courtesy of DAIMLERCHRYSLER CORP.
