Speaker-Right Rear Door - White 3 Way

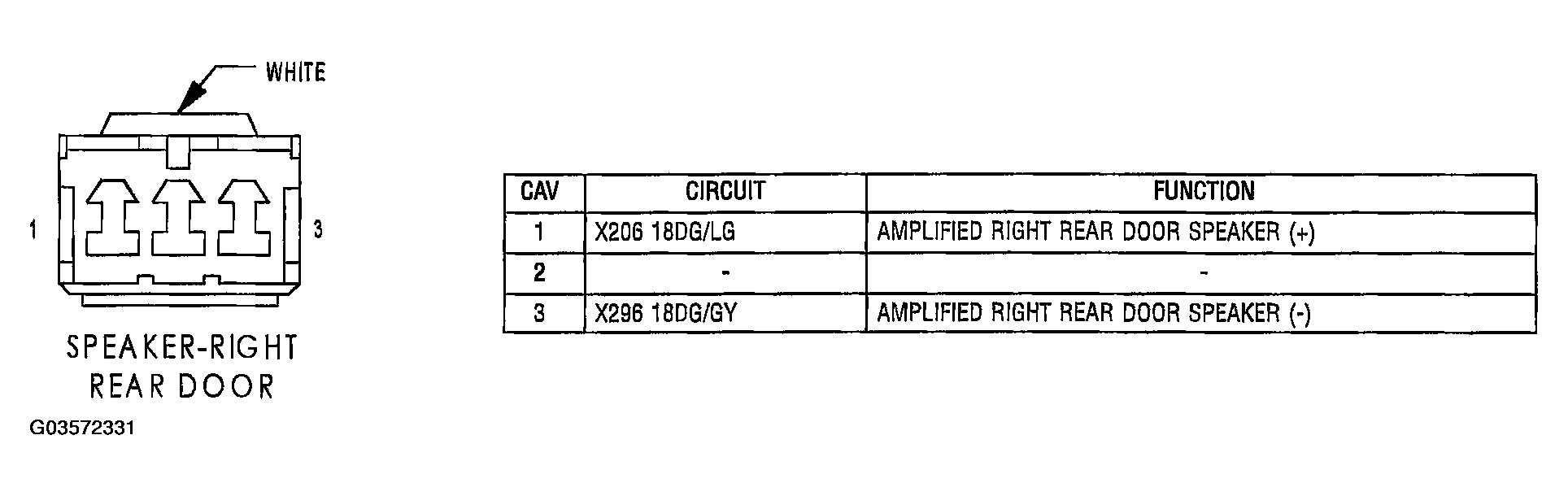

Fig 1: Identifying SPEAKER-RIGHT REAR DOOR Connector Terminals And Specification (WHITE 3 WAY

G03572331

Courtesy of DAIMLERCHRYSLER CORP.
