Speaker-Right Front Door Woofer - White 3 Way

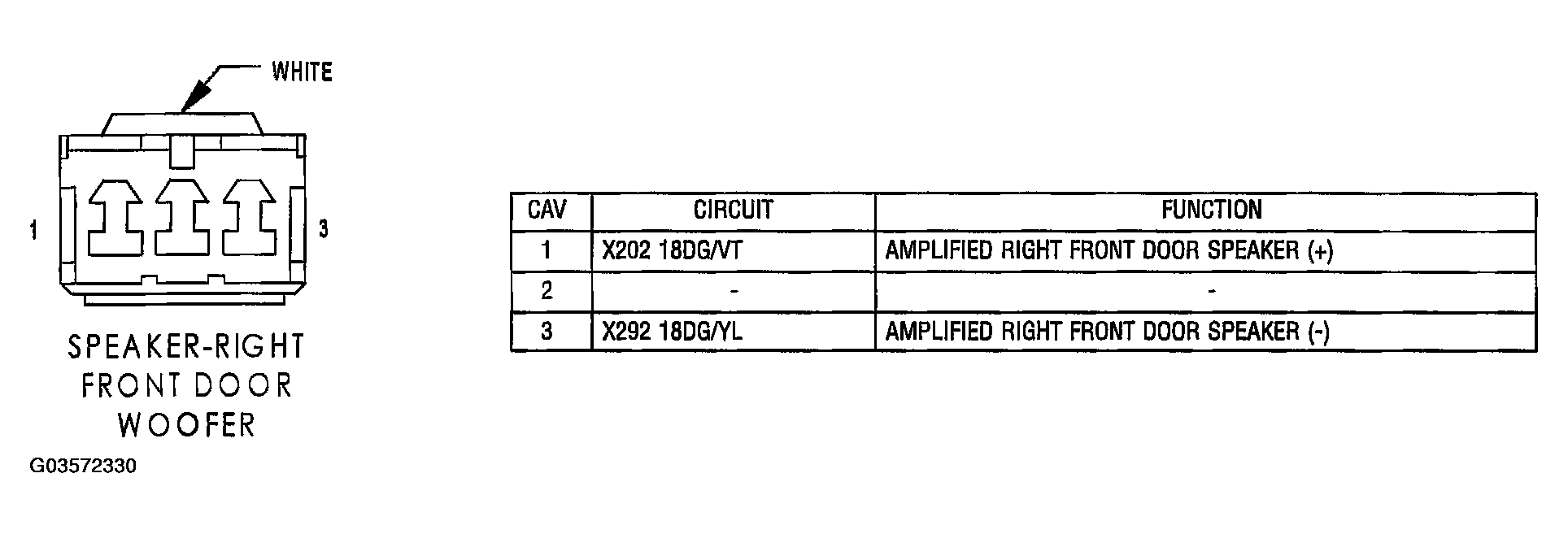

Fig 1: Identifying Speaker-Right Front Door Woofer Connector Terminals And Specification (White 3 Way)
G03572330Courtesy of DAIMLERCHRYSLER CORP.
