Speaker-Right Front Door Tweeter - Black 3 Way

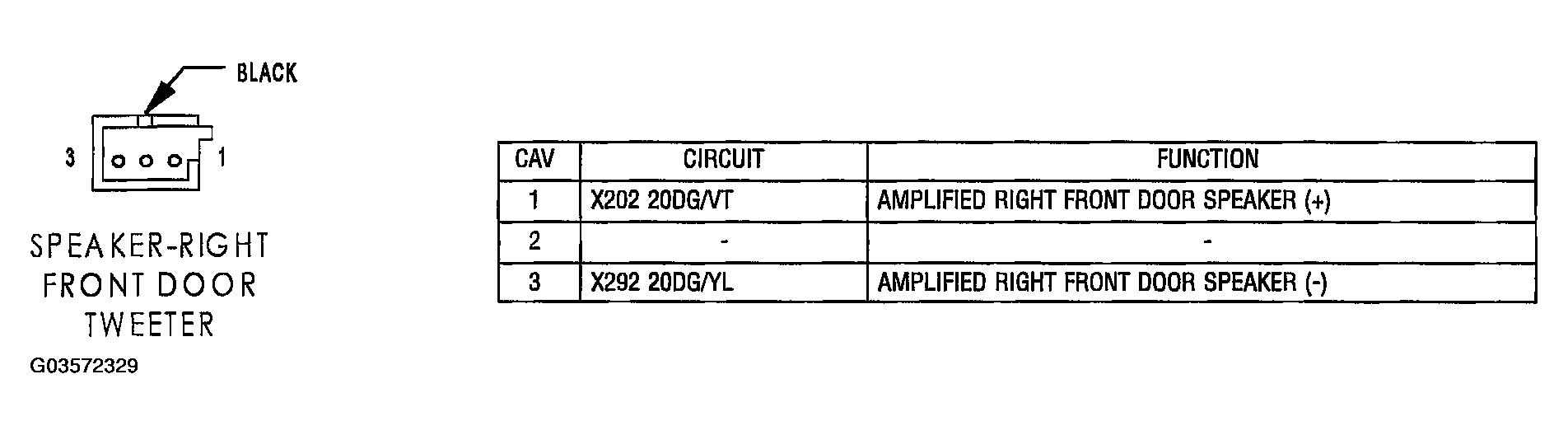

Fig 1: Identifying Speaker-Right Front Door Tweeter Connector Terminals And Specification (Black 3 Way)

G03572329

Courtesy of DAIMLERCHRYSLER CORP.
