Speaker-Left Rear Door - White 3 Way

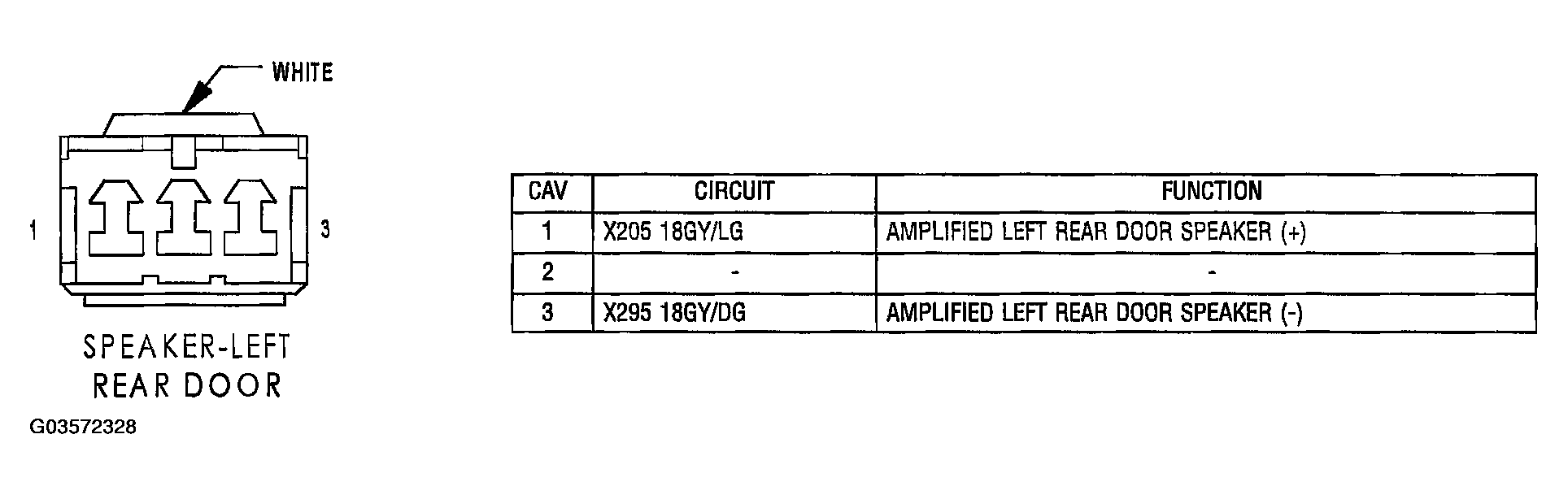

Fig 1: Identifying Speaker-Left Rear Door Connector Terminals And Specification (White 3 Way)

G03572328

Courtesy of DAIMLERCHRYSLER CORP.
