Speaker-Left Front Door Woofer - White 3 Way

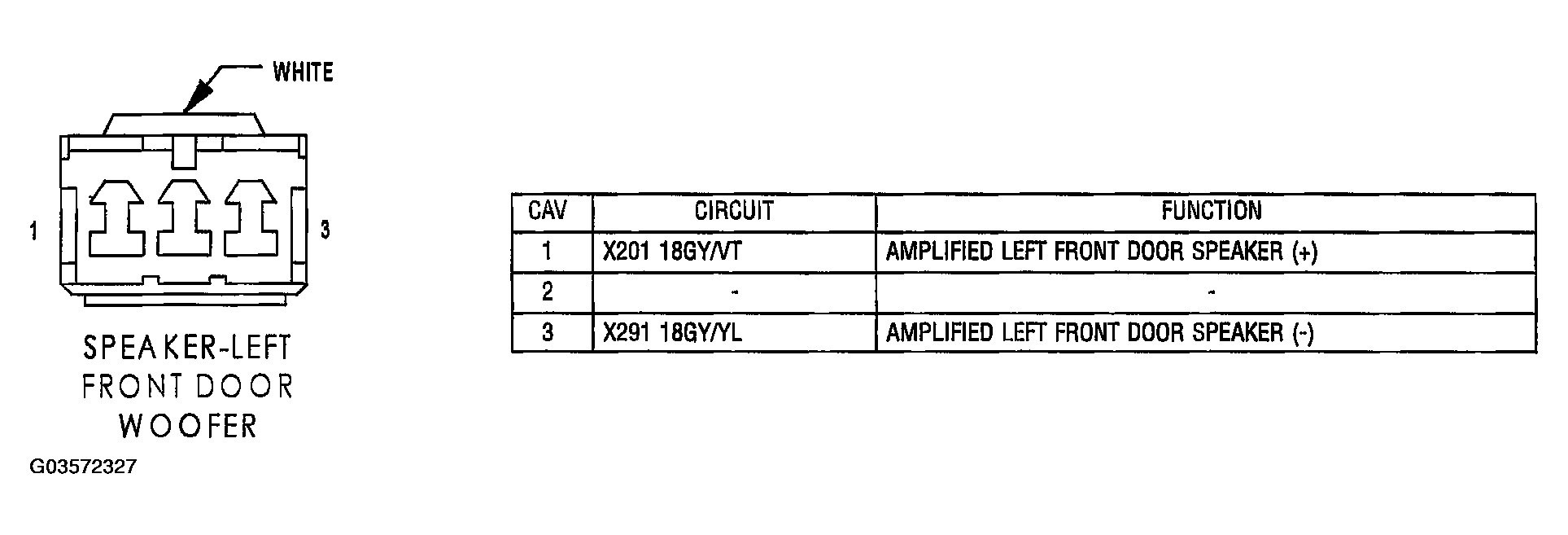

Fig 1: Identifying Speaker-Left Front Door Woofer Connector Terminals And Specification (White 3 Way)
G03572327Courtesy of DAIMLERCHRYSLER CORP.
