Seat Position Sensor-Driver Horizontal - White 3 Way

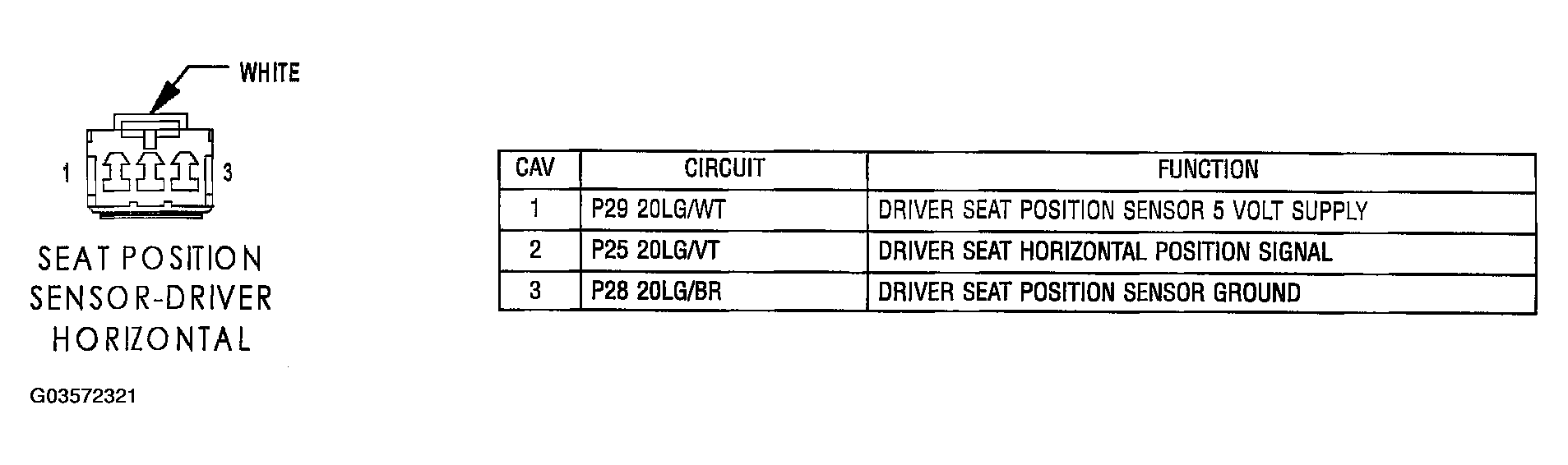

Fig 1: Identifying Seat Position Sensor-Driver Horizontal Connector Terminals And Specification (White 3 Way)

G03572321

Courtesy of DAIMLERCHRYSLER CORP.
