Seat Position Sensor-Driver Front Riser - White 3 Way

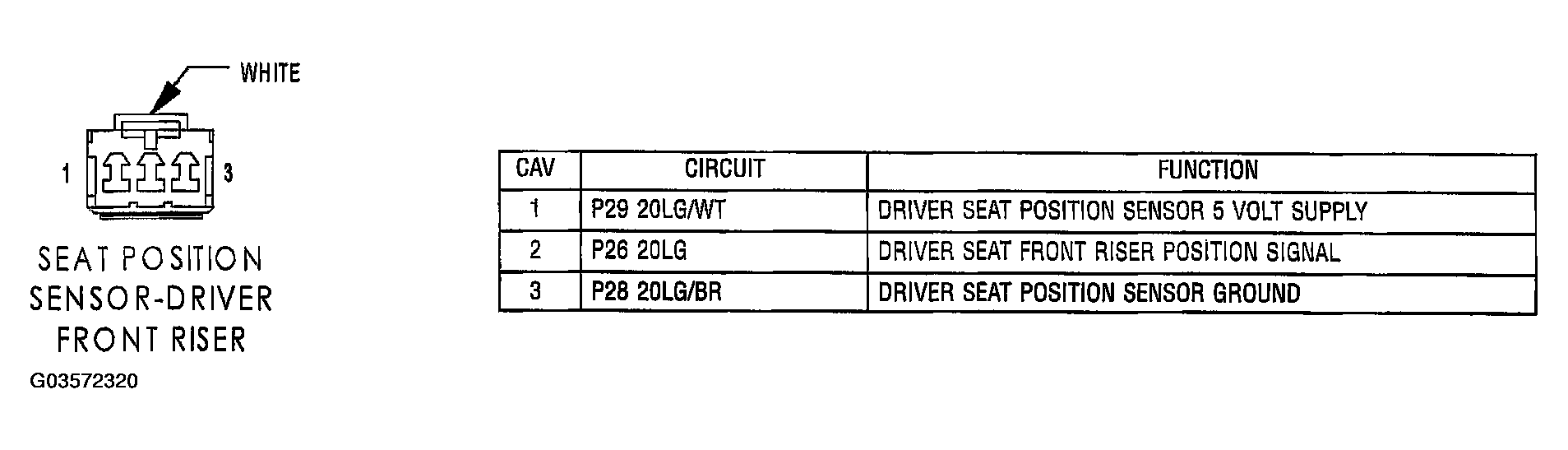

Fig 1: Identifying Seat Position Sensor-Driver Front Riser Connector Terminals And Specification (White 3 Way)

G03572320

Courtesy of DAIMLERCHRYSLER CORP.
