Seat Belt TENSIONER-Passenger - Yellow 2 Way

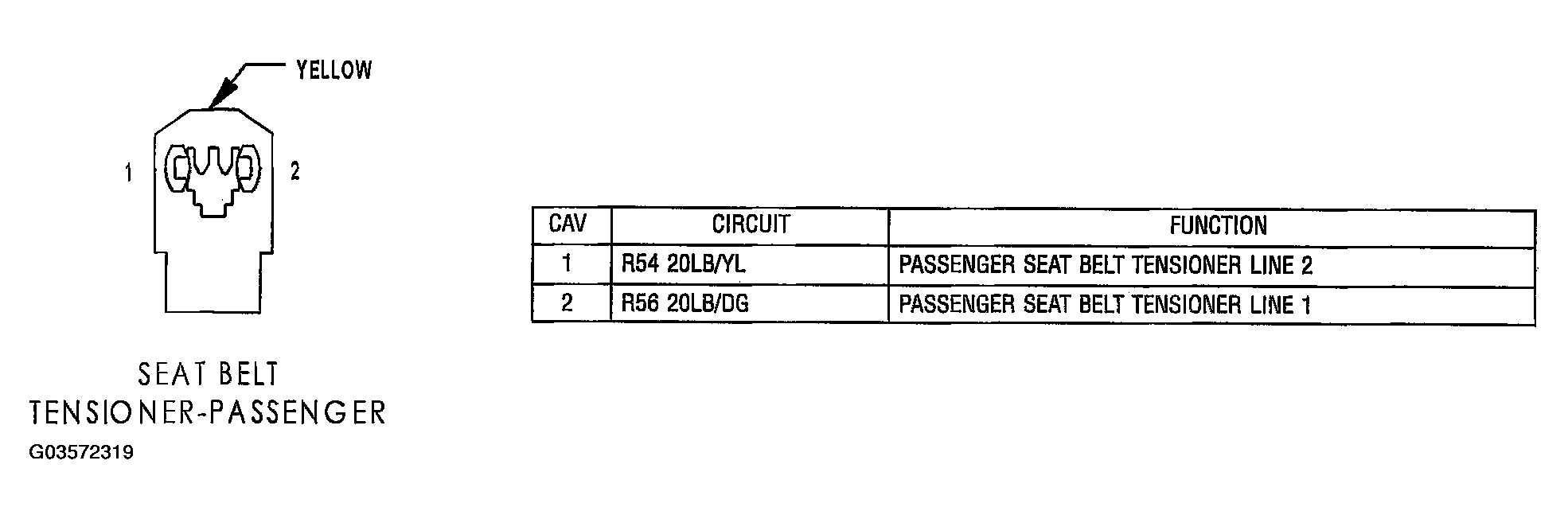

Fig 1: Identifying Seat Belt Tensioner-Passenger Connector Terminals And Specification (Yellow 2 Way)

G03572319

Courtesy of DAIMLERCHRYSLER CORP.
