Satellite Radio Receiver - Black 12 Way

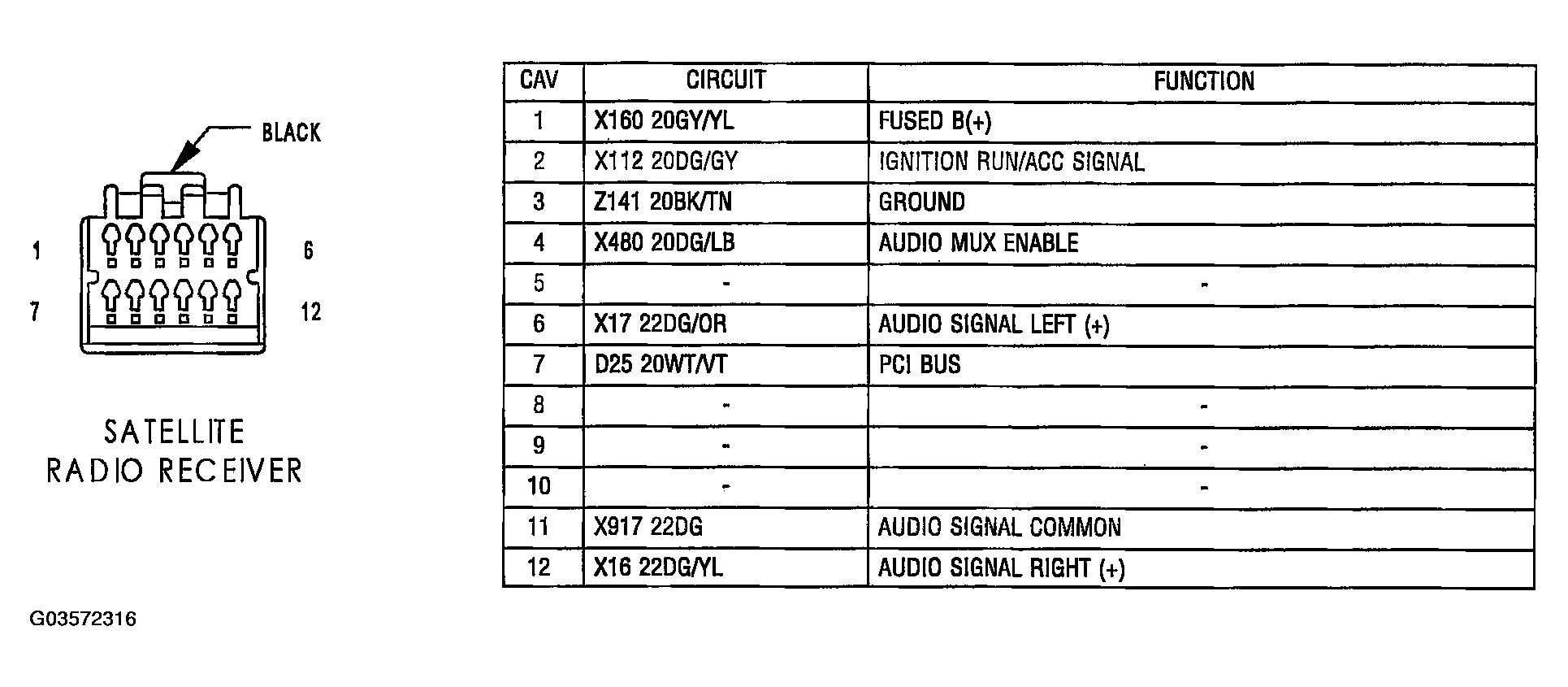

Fig 1: Identifying Satellite Radio Receiver Connector Terminals And Specification (Black 12 Way)
G03572316Courtesy of DAIMLERCHRYSLER CORP.
