Satellite Radio Multiplexer C2 - DK. Gray 10 Way

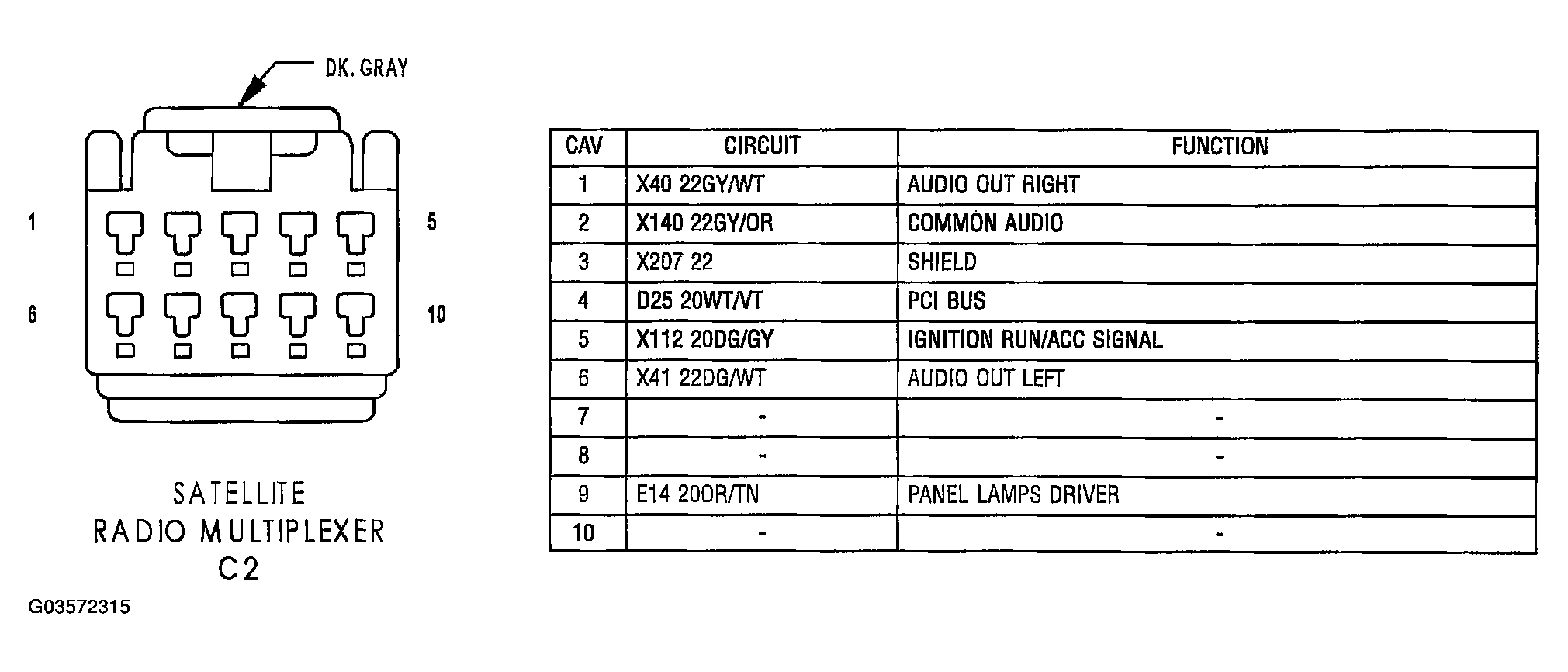

Fig 1: Identifying Satellite Radio Multiplexer C2 Connector Terminals And Specification (DK. Gray 10 Way)

G03572315

Courtesy of DAIMLERCHRYSLER CORP.
