Satellite Radio Multiplexer C1 - DK. Gray 22 Way

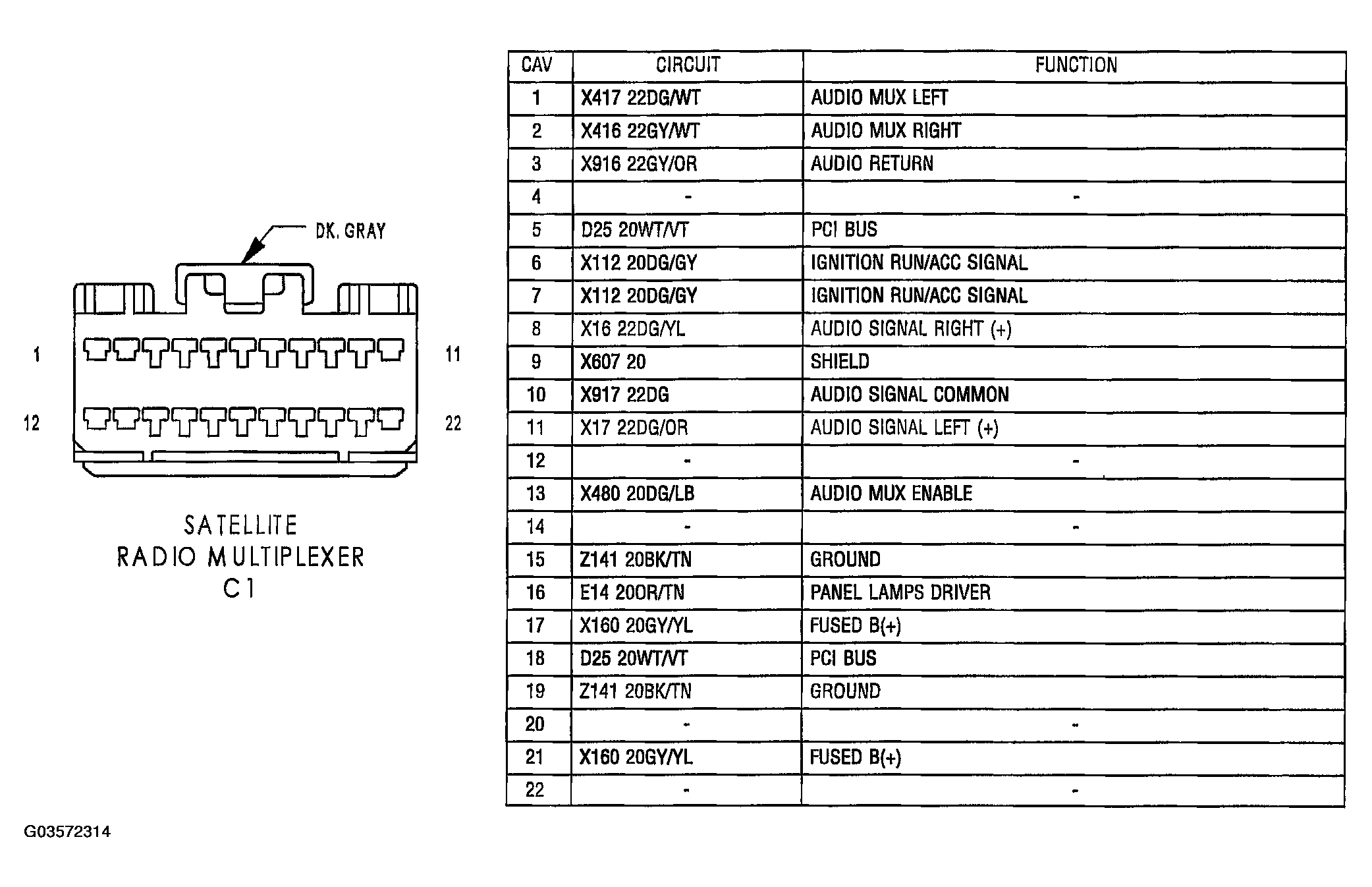

Fig 1: Identifying Satellite Radio Multiplexer C1 Connector Terminals And Specification (DK. Gray 22 Way)

G03572314

Courtesy of DAIMLERCHRYSLER CORP.
