SKREEM Module - Black 6 Way

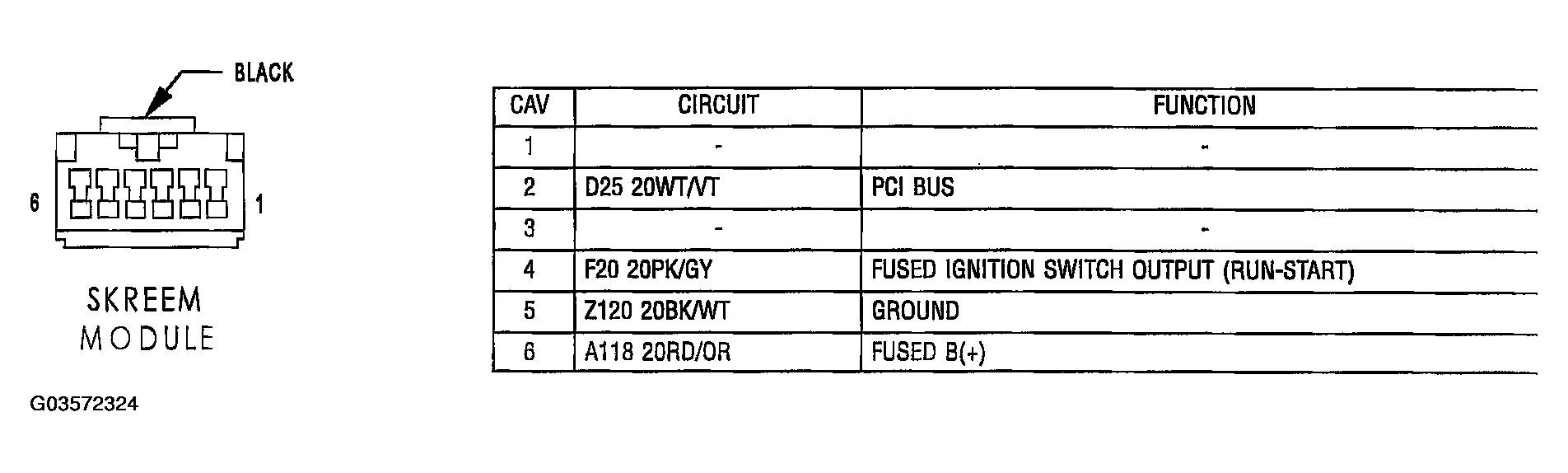

Fig 1: Identifying SKREEM Module Connector Terminals And Specification (Black 6 Way)

G03572324

Courtesy of DAIMLERCHRYSLER CORP.
