Connector PINOUTS
>>
Rear View Mirror - Black 12 Way
Rear View Mirror - Black 12 Way

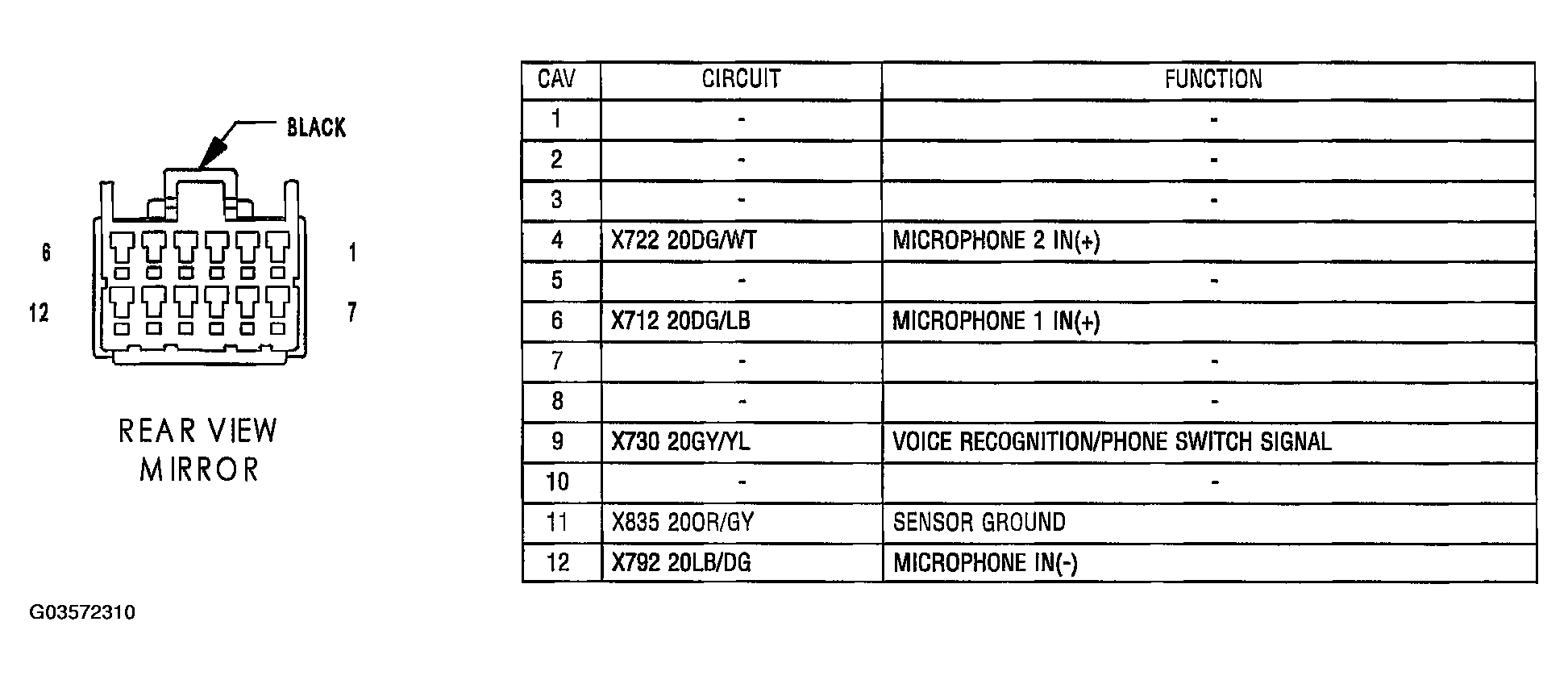

Fig 1: Identifying Rear View Mirror Connector Terminals And Specification (Black 12 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
